DESCRIPTION

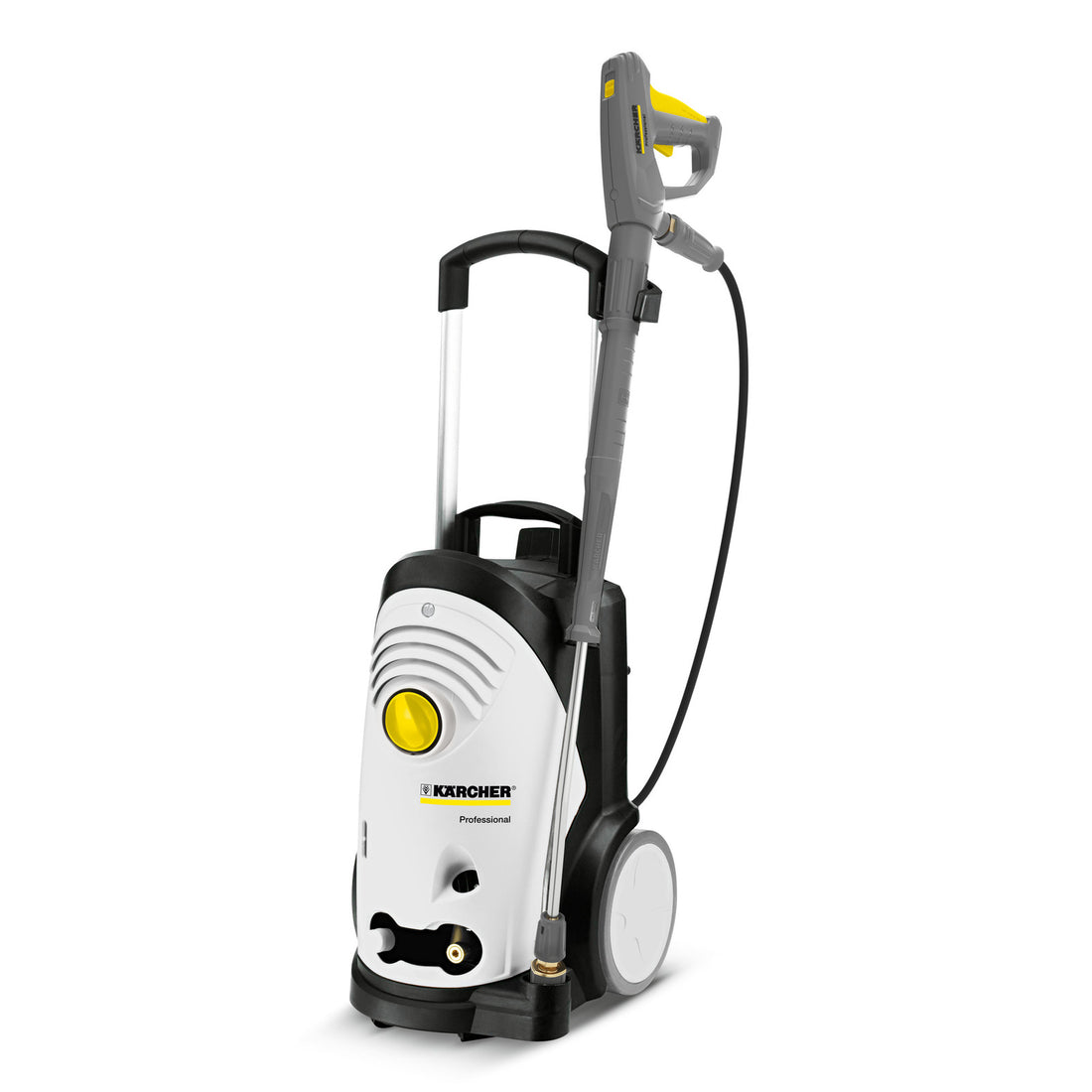

The Karcher HD 2.3/14 C Ed Food is a high-pressure cleaner developed for the commercial food industry, offering exceptional mobility, easy operation, and long service life. Key features include the EASY!Force high-pressure gun, reducing operator effort to zero, EASY!Lock quick-release fasteners for 5x faster setup, and a triple nozzle for quick spray adjustment. It also features a cleaning agent dosing valve for easy cleaning agent integration, ample storage for accessories, and a nozzle compartment for added convenience.

KEY APPLICATIONS:

• Commercial Kitchens – Perfect for cleaning kitchen equipment, floors, and surfaces in restaurants and food processing areas, ensuring hygiene and efficiency.

• Food Processing Plants – Ideal for removing grease, oils, and residues from machinery, conveyors, and production lines in the food industry.

• Catering Services – Easy-to-use and portable for mobile catering businesses to quickly clean equipment and workstations during or after events.

• Food Storage Facilities – Great for sanitizing storage spaces, shelves, and racks, maintaining cleanliness and food safety standards.

• Butcher Shops and Meat Processing – Effective for washing down counters, tools, and equipment to prevent cross-contamination and ensure high sanitation levels.

• Industrial Cleaning in Food Manufacturing – Ideal for tough cleaning tasks in food production and packaging environments, with the ability to use cleaning agents to boost effectiveness.

FEATURES

• Save Time and Energy:
  The EASY!Force high-pressure gun and EASY!Lock quick-release fasteners reduce the holding force to zero, making operation fatigue-free and five times faster than conventional screw connections.

• High Standard of Hygiene:
  Designed with food-grade, non-marking pressure hose and abrasion-resistant grey wheels. It can handle water inlet temperatures up to 80°C (176°F), ensuring high hygiene standards.

• Practical Detergent System:
  Equipped with a cleaning agent suction system for stubborn dirt. The Inno Foam Set high-pressure foam system is available for enhanced cleaning power when required.

• Infinitely Variable Pressure/Water Flow Regulation:
  Easily adjustable directly on the machine for precise control and gentle cleaning of sensitive surfaces.

• Compact Design:
  Space-saving design for convenient storage and easy transportation, making it ideal for use in environments with limited space.

INCLUDED ACCESSORIES:

• Spray gun: EASY!Force Food
• High-pressure hose length: 15 m
• High-pressure hose type: Food design
• Stainless steel spray lance: 840 mm
• Triple nozzle (0°/ 25°/40°): manual

TECHNICAL SPECIFICATIONS

• MAIN SUPPLY
▪ Voltage: 120 V (HD 2.3/14 C Ed Food)
▪ Current Type (Ph/V/Hz): 1~ 60 Hz
▪ Connected Load: 20 A
▪ Power Protection (Slow, Char. C): 20 A
▪ Type of Protection: IPX5
▪ Extension Cord: 100 ft (30 m) AWG 12/2.5

• WATER CONNECTION
▪ Max. Feed Temperature: 140°F (60°C) (HD 2.3/14 C Ed Food)
▪ Min. Feed Volume: 3.0 GPM (11.4 L/min)
▪ Max. Feed Pressure: 145 PSI (1 MPa)
▪ Suck Height from Open Container (20°C): 1.6 ft (0.5 m)

• PERFORMANCE DATA
▪ Operating Pressure (Using Standard Nozzle): 1500 PSI (10.3 MPa) (HD 2.3/15 C Ed)
▪ Max. Operating Over-pressure: 1800 PSI (12.4 MPa) (HD 2.3/15 C Ed)
▪ Size of Standard Nozzle: 040
▪ Flow Rate: 2.3 GPM (8.7 L/min)
▪ Detergent Suck-in: 0 - 0.16 GPM (0 - 0.62 L/min)
▪ Max. Recoil Force of Trigger Gun: 21 N

• NOISE EMISSION
▪ Sound Pressure Level (LpA): 72 dB(A) (HD 2.3/14 C Ed Food)
▪ Uncertainty (KpA): 2 dB(A)
▪ Sound Power Level (LWA): 86 dB(A)

• HAND-ARM VIBRATION
▪ Hand Spray Gun: <2.5 m/s²
▪ Spray Lance: <2.5 m/s²
▪ Uncertainty (K): 0.3 m/s²

• FUEL
▪ Amount of Oil: 0.35 L
▪ Oil Grade: SAE 0W40

• DIMENSIONS & WEIGHT
▪ Length: 360 mm (14.17 inches)
▪ Width: 375 mm (14.76 inches)
▪ Height: 925 mm (36.42 inches)
▪ Weight: 27 kg (59.5 lbs)
