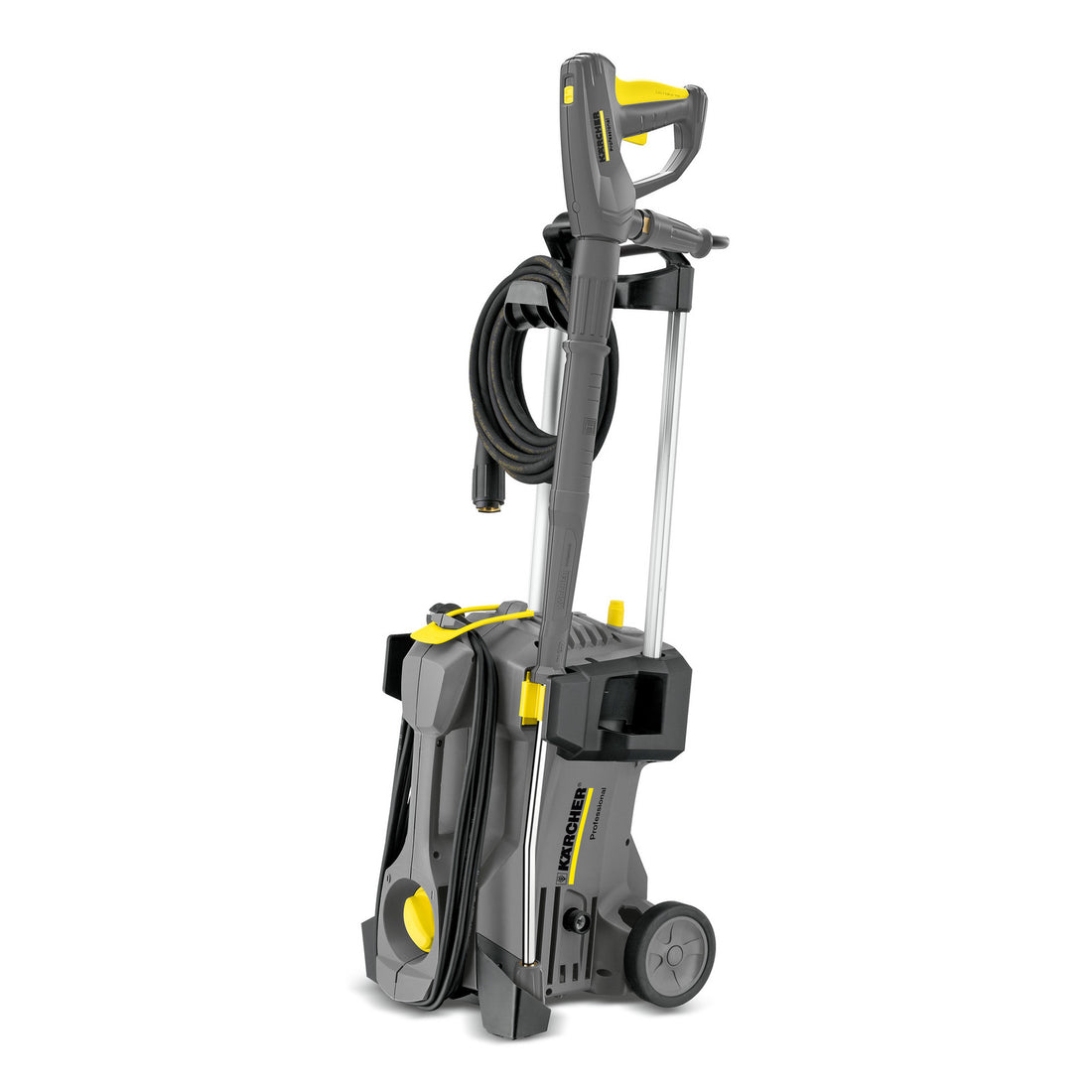

The Karcher PRO HD 400 ED is a lightweight, durable, and compact cold water pressure washer offering ultimate mobility. Designed for both vertical and horizontal storage, it features a 3-piston axial pump with a brass cylinder head, automatic pressure relief system for pump protection, and storage options for accessories. Certified to UL and CSA safety standards for reliable performance on-site.
KEY APPLICATIONS:
-
On-Site Cleaning: Ideal for mobile cleaning tasks at construction sites, industrial locations, or outdoor facilities, offering excellent portability and mobility.
-

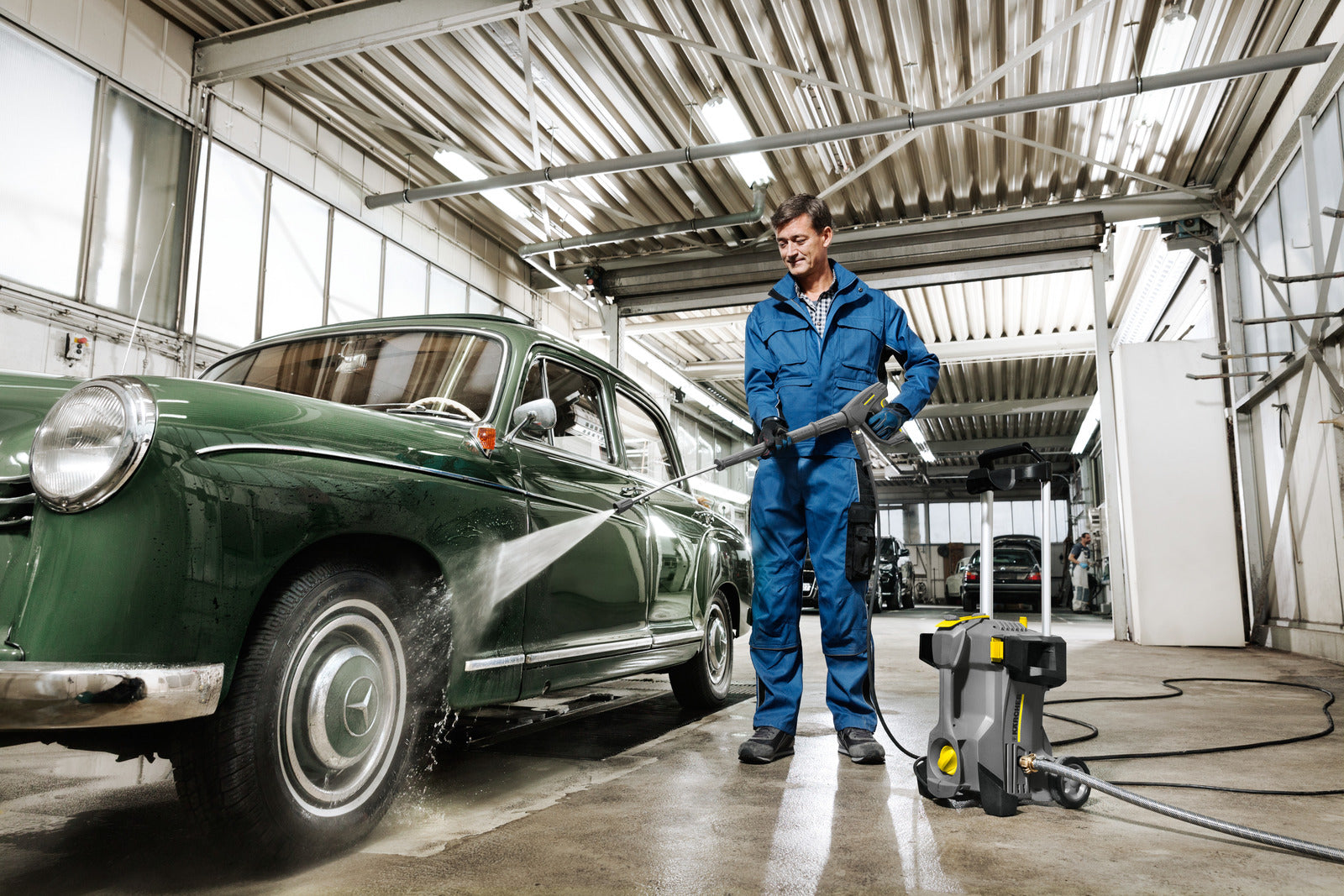

Vehicle Fleet Washing: Perfect for cleaning company vehicles, trucks, and equipment where space and convenience are essential.
-
Facility Maintenance: Suitable for cleaning exterior walls, driveways, sidewalks, and other surfaces in commercial or residential facilities due to its compact design and powerful performance.
-
Agricultural Equipment Cleaning: Effectively cleans farm equipment, tools, and machinery in rural settings, with the flexibility to operate in both vertical and horizontal positions for storage and use.
-
Equipment Maintenance: With its durable, mobile design, the PRO HD 400 ED is great for maintaining and cleaning machinery and tools in workshops or remote job sites.
-
Outdoor Cleaning Jobs: Ideal for cleaning outdoor structures such as fences, patios, and decks, where portability and ease of storage are key.
FEATURES
-
Compact & Portable: Ideal for on-the-go cleaning with easy mobility, making it perfect for a variety of on-site tasks.
-
Reliable Performance: Powered by a 3-piston axial pump with a brass cylinder head, ensuring long-lasting durability and optimal pressure output.
-
Pump Protection: Equipped with an automatic pressure relief system to safeguard the pump, extending its life.
-
Convenient Storage: Includes integrated storage options for accessories, keeping tools organized and easily accessible.
-
Safety Certified: Meets UL and CSA safety standards, ensuring reliable operation and user safety.
INCLUDED ACCESSORIES:
- Spray lance: 840 mm
TECHNICAL SPECIFICATIONS
• MAIN SUPPLY
▪ Voltage: 120 V
▪ Current Type (Ph/V/Hz): 1~ 60 Hz
▪ Connected Load: 12 A (ProHD 400 Ed), 11.5 A (ProHD 400), 12 A (ProHD 600)
▪ Power: 1.4 kW (1.9 hp) (ProHD 400 Ed), 1.3 kW (1.7 hp) (ProHD 400), 1.4 kW (1.9 hp) (ProHD 600)
▪ Power Protection (Slow, Char. C): 15 A
▪ Type of Protection: IPX5
• WATER CONNECTION
▪ Max. Feed Temperature: 140°F (60°C)
▪ Min. Feed Volume: 2.5 GPM (9.5 L/min)
▪ Max. Feed Pressure: 145 PSI (1 MPa)
▪ Suck Height from Open Container (20°C): 1.6 ft (0.5 m)
• PERFORMANCE DATA
▪ Working Pressure: 1300 PSI (9,000 kPa) (ProHD 400 Ed), 1200 PSI (8,300 kPa) (ProHD 400), 1300 PSI (9,000 kPa) (ProHD 600)
▪ Max. Operating Over-pressure: 1885 PSI (13 MPa)
▪ Nozzle Size: 030
▪ Water Flow Rate: 1.7 GPM (6.4 L/min) (ProHD 400 Ed, ProHD 600), 1.55 GPM (5.9 L/min) (ProHD 400)
▪ Max. Recoil Force of Trigger Gun: 14.76 N
• NOISE EMISSION
▪ Hand-Arm Vibration Value: 2.1 m/s²
▪ Uncertainty (K): 0.7 m/s²
▪ Sound Pressure Level (LpA): 69 dB(A)
▪ Uncertainty (KpA): 3 dB(A)
▪ Sound Power Level (LWA): 85 dB(A)
• DIMENSIONS & WEIGHT
▪ Length: 351 mm (13.8 inches)
▪ Width: 312 mm (12.3 inches)
▪ Height: 904 mm (35.6 inches)
▪ Typical Operating Weight: 45.2 lbs (20.5 kg)
