DESCRIPTION

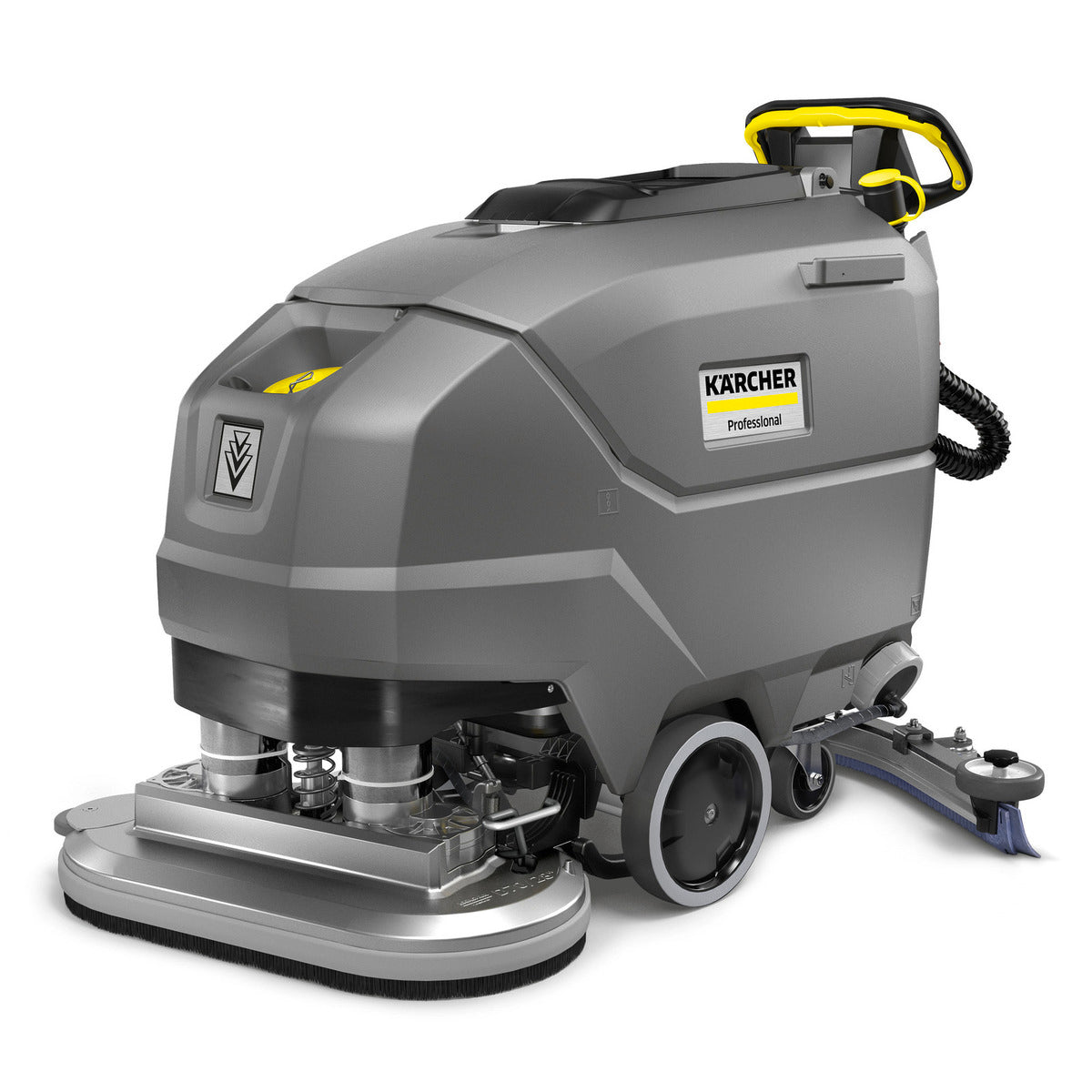

Karcher BD 70/75 W Classic Bp is an affordable, 28‑inch walk‑behind scrubber designed for industrial and commercial cleaning.

The traction motor on a Kärcher 70/75 drives the wheels, making the scrubber self-propelled for easier handling, reduced fatigue, and efficient, controlled cleaning.

It aslo features durable aluminum components built to withstand heavy use and an adjustable brush head that delivers 66‑150 lbs. of down pressure, making it versatile for a range of cleaning needs. Available in both Wet and AGM battery models—with an included shelf charger—this scrubber is easy to operate with simple controls and clearly visible, color‑coded elements that minimize training requirements. Equipped with Karcher’s Home Base system, it also allows for easy attachment of additional cleaning tools like mops and hooks to enhance productivity.

KEY APPLICATIONS:

• Types of Environments:
    ▪ Industrial facilities, commercial spaces, warehouses, etc
• Floor Types:
    ▪ Hard floors, tiled surfaces, polished concrete
• Places:
    ▪ Corridors, large open areas, high‑traffic zones

FEATURES

• Adjustable Brush Pressure:
    ▪ Offers 66‑150 lbs. of down pressure, adjustable to handle both light and stubborn dirt.
• Efficient 300‑Watt Traction Motor:
    ▪ Assists on inclines and allows for adjustable speed, reducing operator fatigue.
• Color‑Coded Controls:
    ▪ Simplifies operation and shortens training time with clearly visible operating elements.
• Home Base System:
    ▪ Conveniently attaches additional cleaning tools like mops and hooks.


• INCLUDED ACCESSORIES:
    ▪ DISC BRUSH
    ▪ POWERFUL TRACTION DRIVE
    ▪ SQUEEGEE, ANGLED
    ▪ 2‑TANK SYSTEM
    ▪ MOTOR (BATTERY)

TECHNICAL SPECIFICATIONS

● DRIVE & OPERATION
  ▪ Drive type: Battery
  ▪ Traction drive: Traction motor
  ▪ Working width of brushes: 705 mm (≈27.8 in)
  ▪ Working width, vacuuming: 1030 mm (≈40.6 in)

● WATER TANKS & PERFORMANCE
  ▪ Tank of fresh/dirty water: 75 l / 75 l (≈19.8 gal / 19.8 gal)
  ▪ Theoretical area performance: max. 3525 m²/h (≈37,976 ft²/h)
  ▪ Practical area performance: 2115 m²/h (≈22,773 ft²/h)

● BATTERY & RUNTIME
  ▪ Battery voltage: 24 V
  ▪ Battery runtime: max. 4 h

● BRUSH
  ▪ Brush rotational speed: 180 rpm
  ▪ Brush contact pressure: 20.4–34 g/cm² / 30–68 kg
    (≈2.87–4.78 psi / adjustable as required)

● WATER CONSUMPTION & NOISE
  ▪ Water consumption: max. 2.75 l/min (≈0.73 gal/min)
  ▪ Sound pressure level: 63–65 dB(A)

● POWER & WEIGHT
  ▪ Rated input power: max. 1850 W
  ▪ Total permissible weight: 325 kg
  ▪ Weight without accessories: 100 kg (≈220 lbs)

● DIMENSIONS
  ▪ Dimensions (L × W × H): 1445 × 750 × 1065 mm (≈56.9 × 29.5 × 41.9 in)
