DESCRIPTION

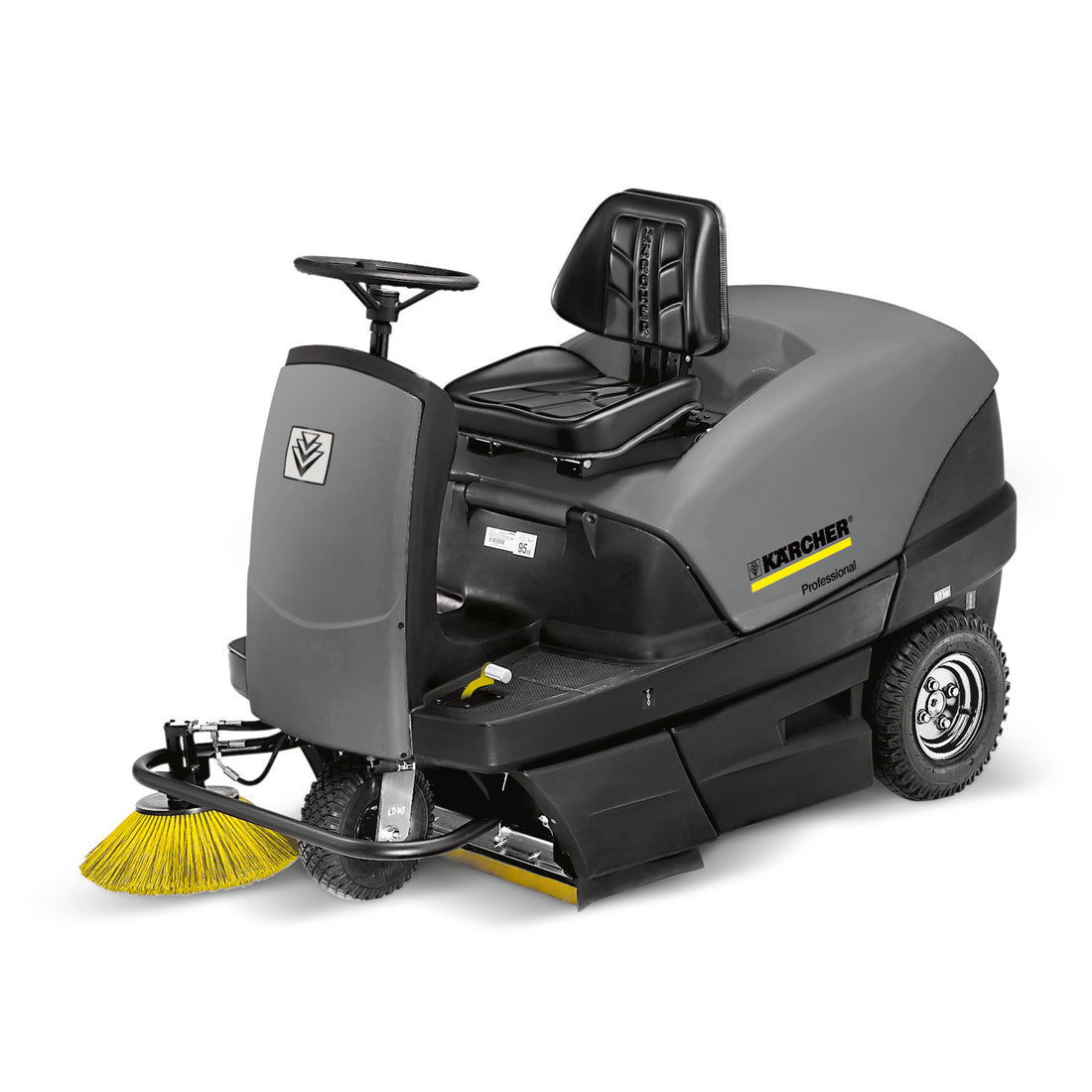

Purchase the Karcher KM 100/100 R Bp Commercial Vacuum Sweeper for efficient cleaning of large indoor and outdoor areas. This advanced sweeper is powered by a 24 V/750 W DC motor and features a robust round filter system with automatic cleaning and a dual dirt container setup. With dimensions of 2006 x 1005 x 1343 mm (78.9 x 39.6 x 52.9 in) and an unladen weight of 300 kg (661 lb), it’s engineered for high-performance cleaning in demanding environments.

KEY APPLICATIONS:

• Types of Environments:
  Commercial buildings, public facilities, retail centers, and industrial areas

• Floor Types:
  Indoor and outdoor surfaces such as car parks, production areas, and workshops

• Places:
  Car parks, schools, service stations, and car dealerships

FEATURES

• Polyester Round Filter: Durable filter material that enhances dust separation and longevity.

• Wheels, Non-Marking: Specially designed wheels that prevent surface damage during cleaning.

• Filter Cleaning (Manual): Allows manual cleaning of the filter for uninterrupted operation.

• Filter Cleaning (Automatic): Automatically cleans the filter when the machine is off for continuous low‑dust sweeping.

• Main Sweeper Roller, Floating: A floating roller adapts to surface contours for effective debris collection.

• Suction Volume Regulation: Adjusts suction power to optimize cleaning on different surfaces.

• Coarse Dirt Flap: Captures larger debris to prevent clogging and maintain efficiency.

• Overhead Sweeping Principle: Directs debris into the collection system for thorough cleaning.

• Forwards Traction Drive: Provides reliable forward movement for efficient sweeping.

• Backwards Traction Drive: Enables safe and effective reverse maneuvering in tight spaces.

• Suction: Robust suction system ensures efficient removal of dust and debris.

• Outdoor Use: Engineered to perform reliably in various outdoor environments.

• Indoor Use: Designed for low‑dust, effective cleaning in indoor spaces.

• Battery Indicator: Displays real‑time battery status to prevent unexpected downtime.

• Elapsed Time Counter: Tracks operating time for maintenance and scheduling purposes.

• Sweeping Function (Switchable): Option to disable the sweeping function for added versatility.

INCLUDED ACCESSORIES:

• Polyester round filter

• Wheels, non‑marking

• Equipment (integrated into the machine)

• Filter cleaning (manual and automatic options)

• Main sweeper roller, floating

• Suction volume regulation

• Coarse dirt flap

• Overhead sweeping principle

• Forwards traction drive

• Backwards traction drive

• Suction system

• Outdoor use capability

• Indoor use capability

• Battery indicator

• Elapsed time counter

• Sweeping function (can be switched off)

TECHNICAL SPECIFICATIONS

• Dimensions & Weight:
   ▪ Length x Width x Height: 2006 x 1005 x 1343 mm (78.9 x 39.6 x 52.9 in)
   ▪ Unladen Weight: 300 kg (661 lb)
   ▪ Transport Weight: 375 kg (827 lb)
   ▪ Permissible Overall Weight: 660 kg (1455 lb)



• Performance & Speed:
   ▪ Driving Speed: 5.5 km/h (3.4 mph)
   ▪ Cleaning Speed: 5.5 km/h (3.4 mph)
   ▪ Climbing Capability (Max): 18%
   ▪ Surface Cleaning Performance (with 2 side brushes): 7150 m²/h (76,946 ft²/h)
   ▪ Working Width:
    ▪ Without Side Brushes: 710 mm (28 in)
    ▪ With 1 Side Brush: 1000 mm (39.4 in)
    ▪ With 2 Side Brushes: 1290 mm (50.8 in)



• Brush System:
   ▪ Roller Brush Diameter: 285 mm (11.2 in)
   ▪ Roller Brush Width: 710 mm (28 in)
   ▪ Side Brush Diameter: 450 mm (17.7 in)



• Waste & Filtration System:
   ▪ Waste Container Volume: 100 L (26.4 gal)
   ▪ Protection Type: IPX3 (Drip‑Proof)
   ▪ Filter Surface Area (Fine Dust Filter): 6.0 m² (64.6 ft²)
   ▪ Usage Category: U (Non‑hazardous Dust)
   ▪ Nominal Vacuum (Suction System): 12 mbar
   ▪ Nominal Volume Flow (Suction System): 50 l/s



• Motor & Electrical System:
   ▪ Drive Motor (Front & Reverse):
    ▪ Type: Wheel Hub Motor
    ▪ Voltage: 24 V
    ▪ Rated Current: 37 A
    ▪ Rated Power: 750 W
    ▪ Protection: IP 44
    ▪ Speed: Phaseless

   ▪ Fan & Roller Brush Motor:
    ▪ Type: DC Permanent Solenoid Motor (B14)
    ▪ Voltage: 24 V
    ▪ Rated Current: 35 A
    ▪ Rated Power: 600 W
    ▪ Protection: IP 20
    ▪ Speed: 3500 RPM

   ▪ Side Brush Motor:
    ▪ Type: DC Permanent Solenoid Motor (Angular Drive)
    ▪ Voltage: 24 V
    ▪ Rated Current: 5 A
    ▪ Rated Power: 100 W
    ▪ Protection: IP 44
    ▪ Speed: 70 RPM



• Battery & Charging:
   ▪ Battery Type: 24V 4 PzS 240 I
   ▪ Capacity: 240 Ah
   ▪ Full Charging Time: 10–15 hours
   ▪ Operating Time Per Charge: Approx. 2.5 hours
   ▪ Mains Voltage: 230 V
   ▪ Output Voltage: 24 V
   ▪ Output Current: 30 A



• Fuses:
   ▪ Main Fuse: 150 A
   ▪ Side Brush Motor Fuse: 30 A
   ▪ Filter Drive Motor Fuse: 10 A
   ▪ Controls Fuse: 5 A
   ▪ Vacuum Pump Fuse: 3 A



• Tyres & Brakes:
   ▪ Rear Tyre Size: 4.00‑8
   ▪ Rear Tyre Air Pressure: 6 bar (87 psi)
   ▪ Service Brake: Electronic
   ▪ Parking Brake: Electrically Operated Disc Brake (Spring‑Loaded)



• Operating Conditions:
   ▪ Temperature Range: -5 to +40°C (23 to 104°F)
   ▪ Air Humidity (Non‑condensing): 20–90%



• Noise & Vibration:
   ▪ Sound Pressure Level (LpA): 75 dB(A)
   ▪ Sound Power Level (LwA + Uncertainty KWA): 94 dB(A)
   ▪ Hand‑Arm Vibration: <2.5 m/s²
   ▪ Seat Vibration: <0.5 m/s²
   ▪ Uncertainty K: 0.2 m/s²
