DESCRIPTION

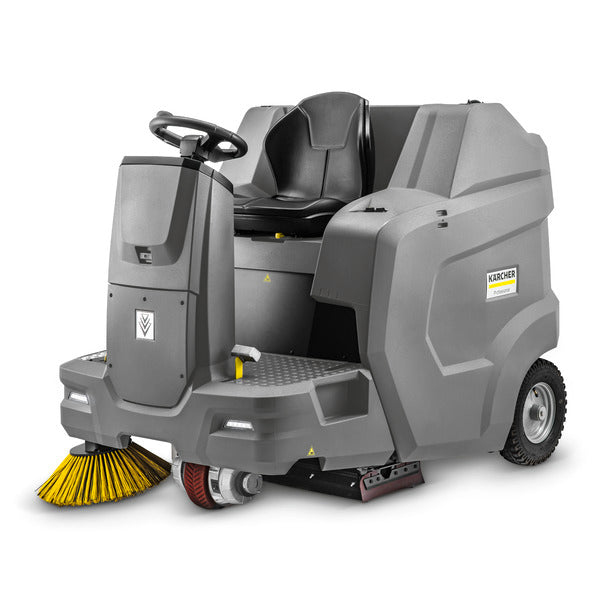

Karcher KM 100/120 R Bp Ride‑On Sweeper delivers high‑performance, zero‑emission cleaning for large indoor and outdoor areas up to 7,040 m²/h (75,780 ft²/h). Powered by a 24 V/240 Ah lead‑acid battery, it provides up to 3.5 hours of continuous operation, an adjustable speed drive, retractable side brushes, and a self‑cleaning filter for uninterrupted productivity.

KEY APPLICATIONS:

• Types of Environments:
   ▪ Warehouses, manufacturing facilities, and distribution centers
   ▪ Parking garages, service stations, and outdoor plazas
   ▪ Retail complexes, airports, and public buildings

• Floor Types:
   ▪ Hard and resilient surfaces (concrete, tile, asphalt)

• Places:
   ▪ Large open areas, aisles, loading docks, and perimeter edges

FEATURES

• Efficient Sweeping System:
  Direct‑throw debris collection with rotating side brushes into a 120 L (31.7 gal) hopper

• User‑Friendly Operation:
  Adjustable speed control, intuitive panel, and retractable side brush for versatile cleaning

• Battery‑Powered & Eco‑Friendly:
  24 V lead‑acid battery delivers 3.5 hours runtime; onboard charger included

• Durable & Safe Design:
  IPX3 protection, sturdy wheel‑hub motor, comfortable seat, and minimal vibration

Included Accessories:
▪ Self‑cleaning dust filter
▪ Retractable side brush
▪ On‑board charger
▪ Operator seat

TECHNICAL SPECIFICATIONS

• Performance & Speed:
   ▪ Maximum Travel & Working Speed: 6 km/h (3.7 mph)
   ▪ Maximum Climbing Ability: 12%
   ▪ Working Width (No Brushes): 730 mm (28.7″); With 1 Side Brush: 1,000 mm (39.4″); With 2 Side Brushes: 1,280 mm (50.4″)
   ▪ Surface Cleaning Performance:
    ▪ No Brushes: 4,015 m²/h (43,217 ft²/h)
    ▪ One Brush: 5,500 m²/h (59,201 ft²/h)
    ▪ Two Brushes: 7,040 m²/h (75,780 ft²/h)



• Battery & Charging:
   ▪ Type: 24 V 4 HPzS 240 lead‑acid
   ▪ Capacity: 240 Ah; Weight: 195 kg (430 lb)
   ▪ Full Charge Time: 10–15 h; Operating Time: 3.5 h



• Waste & Filtration:
   ▪ Waste Container Volume: 120 L (31.7 gal); Max Load: 150 kg (330 lb)
   ▪ Maximum Discharge Height: 1,520 mm (59.8″)
   ▪ Dust Filter Area: 6 m² (64.6 ft²)



• Motor & Electrical:
   ▪ Drive Motor: 780 W permanent‑magnet DC
   ▪ Roller Brush Motor: 600 W, 3,500 rpm
   ▪ Side Brush Motor: 80 W, 80 rpm
   ▪ Protection Rating: IP 44–IP 54



• Dimensions & Weight:
   ▪ Length × Width × Height: 1,660 × 1,110 × 1,355 mm (65.4″ × 43.7″ × 53.3″)
   ▪ Net Weight: 490 kg (1,080 lb); Transport Weight: 684 kg (1,508 lb)



• Tires & Brakes:
   ▪ Front Tire Ø: 300 mm (11.8″); Rear Tire: 4.00‑8; Pressure: 0.45 MPa (65 psi)
   ▪ Service Brake: Electronic; Parking Brake: Spring‑loaded disc



• Environmental Conditions:
   ▪ Operating Temperature: -5 to +40 °C (23 to 104 °F)
   ▪ Humidity: 20–90% non‑condensing



• Noise & Vibration:
   ▪ Sound Pressure Level: 74 dB(A); Sound Power Level: 92 dB(A)
   ▪ Hand‑Arm Vibration: 1.4 m/s²; Seat Vibration: 0.3 m/s²
