DESCRIPTION

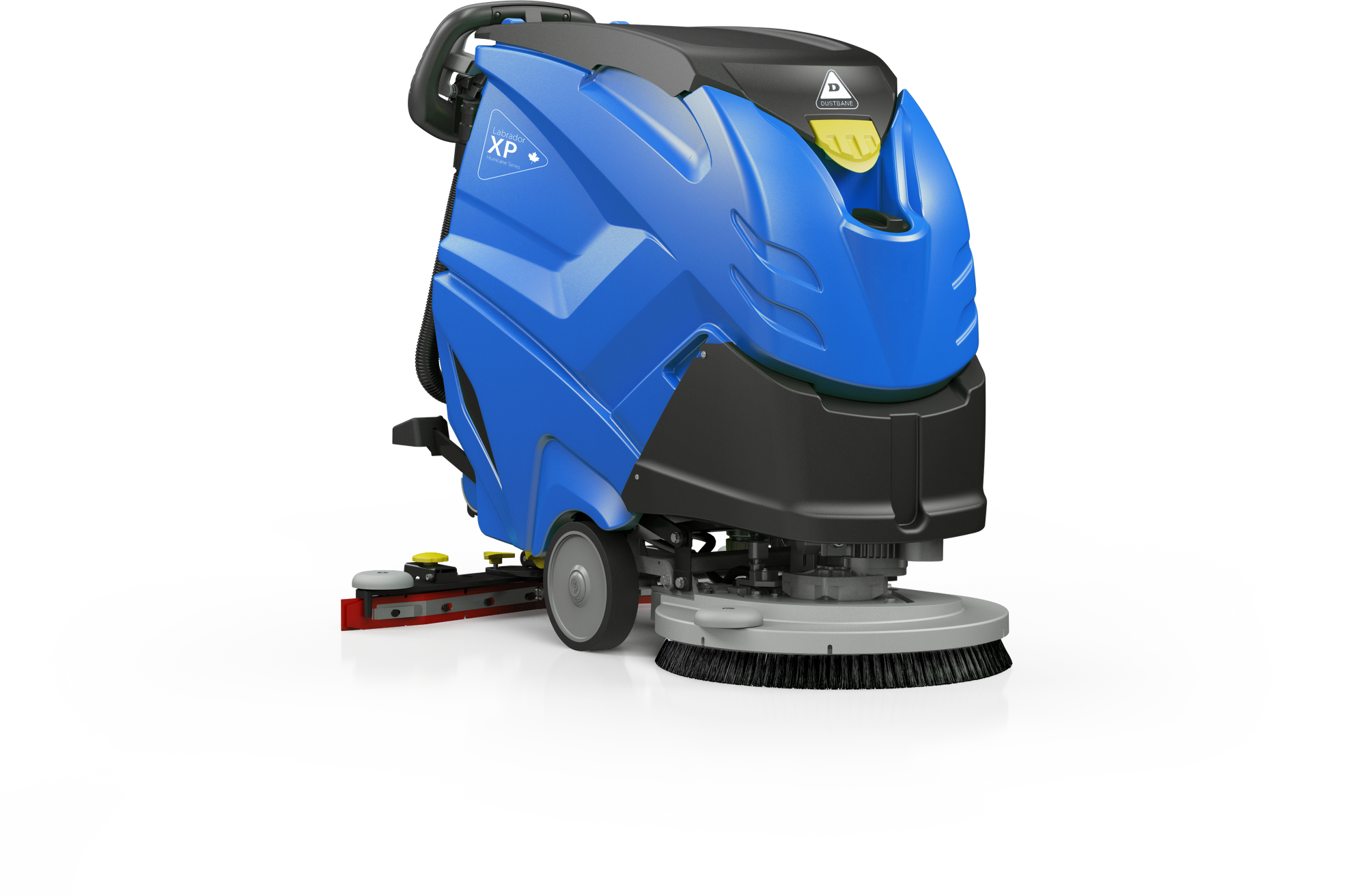

The Labrador XP – High Speed is a versatile and efficient 21.5" walk-behind scrubber designed to clean and polish floors in a single pass.

Part of the Labrador XP Series by Dustbane Products Ltd., this high-speed auto-scrubber features three interchangeable brush heads to adapt to various cleaning tasks, providing increased productivity and reduced downtime.

The Labrador XP – High Speed performs exceptionally on multiple floor types, including:

• Marble floors for deep cleaning and high-gloss polishing
• Vinyl composition tile (VCT) for maintaining cleanliness and shine without chemicals
• Ceramic tiles for thorough cleaning with a smooth finish
• Concrete floors with cylindrical brush head for rough or uneven surfaces
• Terrazzo floors for polishing and enhancing natural beauty
• Linoleum floors to maintain and polish, keeping them vibrant and new-looking

Suitable for commercial spaces such as malls, office buildings, educational institutions, healthcare facilities, and more.

FEATURES

• Interchangeable Brush Heads – Maximum Versatility
  Switch between cylindrical, orbital, and high-speed brush heads for different surfaces and cleaning tasks.
• High-Speed Performance – Efficient Cleaning & Polishing
  Operates at 600 RPM, delivering effective cleaning and polishing without chemicals, saving labor and material costs.
• Advanced Noise Control (ANC™) – Quiet Operation
  Operates at 54 dB, ideal for noise-sensitive environments like healthcare or hospitality.
• ECOSELECT Mode – Energy Efficient
  Optimizes power consumption and extends runtime by up to 20%, with reduced noise.
• Self-Levelling System – Consistent Results
  Automatically adjusts brush pressure for even cleaning on uneven floors.
• User-Friendly Controls – Ergonomic & Intuitive
  Adjustable handle, drive lever operable from any position, and simple control knob enhance operator comfort.
• High-Quality Components – Reliable Performance
  Includes robust vacuum motor, onboard battery charger, and durable DBX-Power AGM batteries.
• Safety & Maintenance – Hassle-Free Operation
  Anti-foam system, shut-off sensor, and easy access to internal components ensure safe and simple maintenance.

USAGE

• Setup: Fully charge the onboard DBX-Power AGM batteries and attach the appropriate brush head for the task
• Operation: Adjust the handle to a comfortable position and select the desired cleaning program with the control knob
• Cleaning: Push the drive lever to start; the self-levelling system automatically adjusts brush pressure
• Switching Brush Heads: Cylindrical for uneven surfaces, orbital for general cleaning, high-speed for polishing
• Maintenance: Regularly check and clean the squeegee and brush heads, use the anti-foam system, and ensure inlet/outlet filters are clear

Recommended Environments:

• Commercial Spaces: Malls, office buildings, and retail stores with high traffic
• Healthcare Facilities: Hospitals and clinics requiring quiet, chemical-free cleaning
• Educational Institutions: Schools and universities with large floor areas
• Industrial Sites: Factories and warehouses benefiting from cylindrical brush head
• Hospitality: Hotels and restaurants maintaining polished, presentable floors

TECHNICAL SPECIFICATIONS

• Productivity: 26,641 ft²/h (2,475 m²/h)
• Scrubbing Width: 21.5” (55 cm)
• Squeegee Width: 32” (81.5 cm)
• Number of Brushes: 1 × 21” (53 cm)
• Brush Speed: 600 rpm
• Brush Motor Power: 1,080 W
• Vacuum Motor: 2-stage, 480 W
• Water Lift at Squeegee: 48.5” (123 cm)
• Traction Motor: Yes
• Solution Tank Capacity: 13 gal (51 L)
• Recovery Tank Capacity: 14 gal (53 L)
• Power Supply: 24 V (2 × 12 V)
• Maximum Slope: 2%
• Maximum Speed: 4.5 km/h
• Weight (With Batteries): 236 lbs (107 kg)
• Unit Size (L × W × H): 52” × 22” × 41” (132 × 56 × 103 cm)
• Run Time (ECOSELECT Mode): Up to 4 hrs
• Noise Level (ECOSELECT Mode): 54–56 dB
