DESCRIPTION

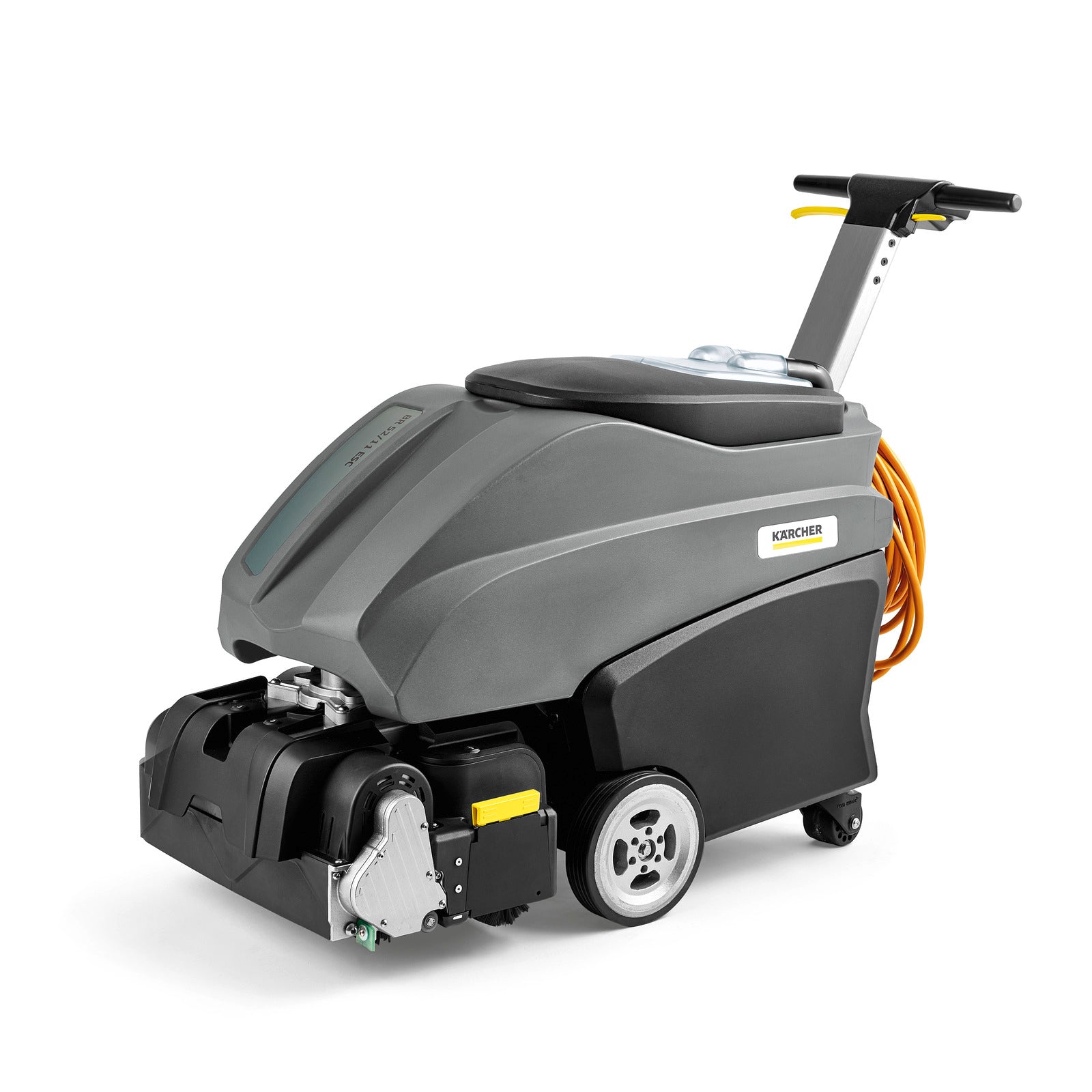

The Karcher BR 52/11 ESC escalator cleaner provides efficient and ergonomic cleaning for escalators and moving sidewalks. Built with a sturdy design, it is resistant to dirt, water, and misuse, ensuring long-lasting performance. Featuring excellent solution flow and recovery, it minimizes downtimes for quick cleaning. The universal brushes allow for easy use across all equipment manufacturers, offering optimal cleaning performance in any environment.

KEY APPLICATIONS:

• Escalator cleaning in commercial and public spaces like malls, airports, and train stations.

• Moving sidewalk maintenance in transportation hubs and exhibition centers.

• High-traffic areas requiring consistent, efficient cleaning with minimal downtime.

• Maintenance of escalators across various manufacturers, thanks to the universal brush design.

• Heavy-duty cleaning in environments prone to dirt, water, and wear, such as shopping centers or office buildings.

FEATURES

• Efficient and Ergonomic Cleaning: Designed for easy and effective cleaning of escalators and moving sidewalks.

• Sturdy and Reliable Design: Built to withstand dirt, water, and misuse, ensuring long-lasting durability.

• Minimized Downtime: Excellent solution flow and recovery reduce cleaning time and operational disruptions.

• Universal Brushes: Compatible with all equipment manufacturers, enabling quick and hassle-free cleaning across different systems.

• Optimized Performance: Delivers high cleaning efficiency for consistently clean surfaces in any environment.'


TECHNICAL SPECIFICATIONS

• Dimensions & Weight:
   ▪ Gross Vehicle Weight (GVW): 115 kg*
   ▪ Height: 952.5 mm (37.5 in)
   ▪ Length: 1275.5 mm (50.2 in)
   ▪ Width: 523 mm (20.6 in)

• Tank Capacity:
   ▪ Recovery Tank: 15 L (4.0 gal)
   ▪ Solution Tank: 11 L (2.9 gal)
   ▪ Recovery Rate: > 75%

• Brush System:
   ▪ Brush Width: 520 mm (20.5 in)
   ▪ Brush RPM: 1,200 rpm
   ▪ Brush Motors: 2 × 300 W

• Drive & Power:
   ▪ DC Power Input: 110 V / 60 Hz
   ▪ Vacuum Pump: 800 W
   ▪ Water Flow Rate: 650 mL/min (0.17 gal/min)

• Noise & Vibration:
   ▪ Airborne Noise Emissions: 80 dB(A)
   ▪ Vibrations: 0.7 m/s²
