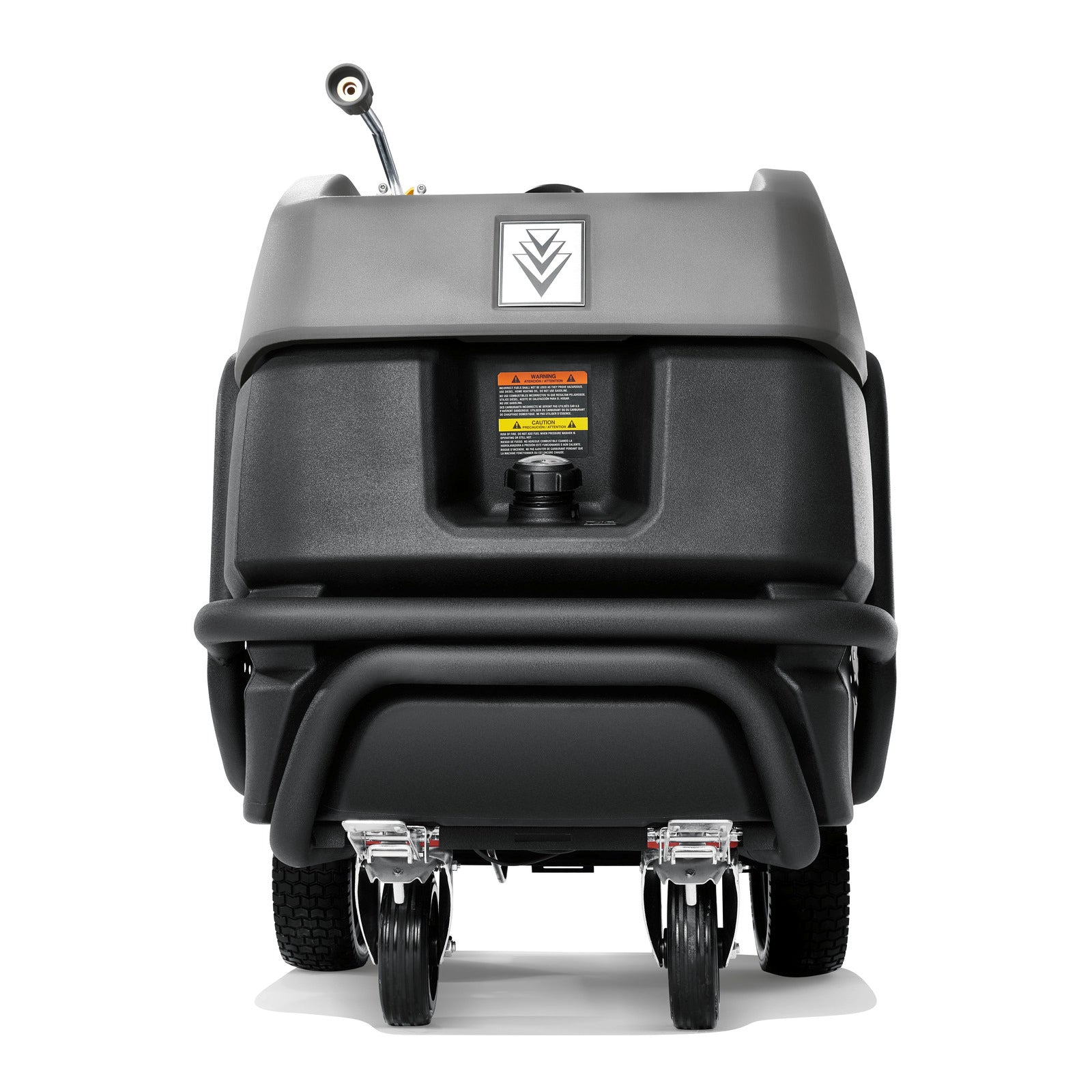

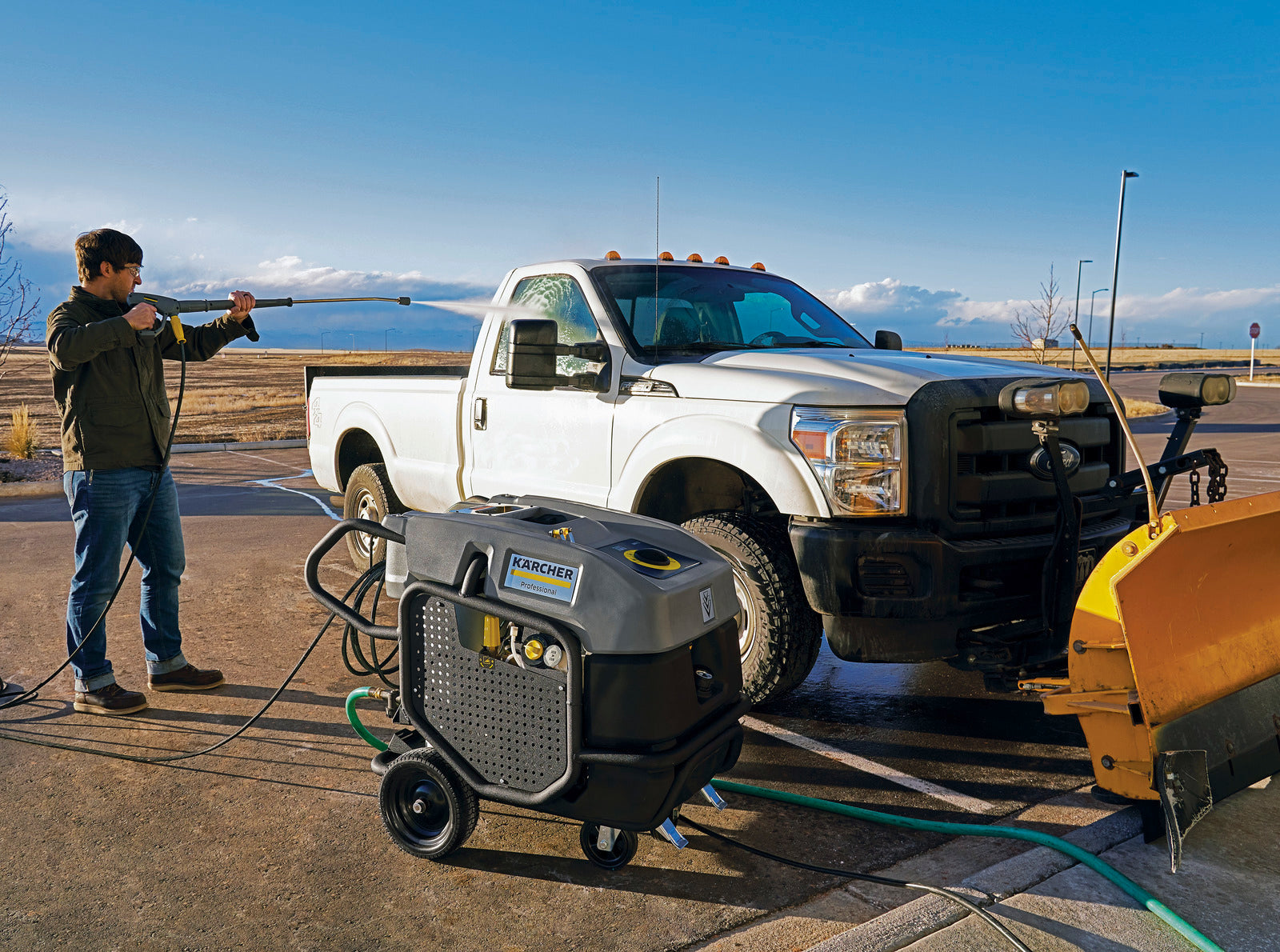

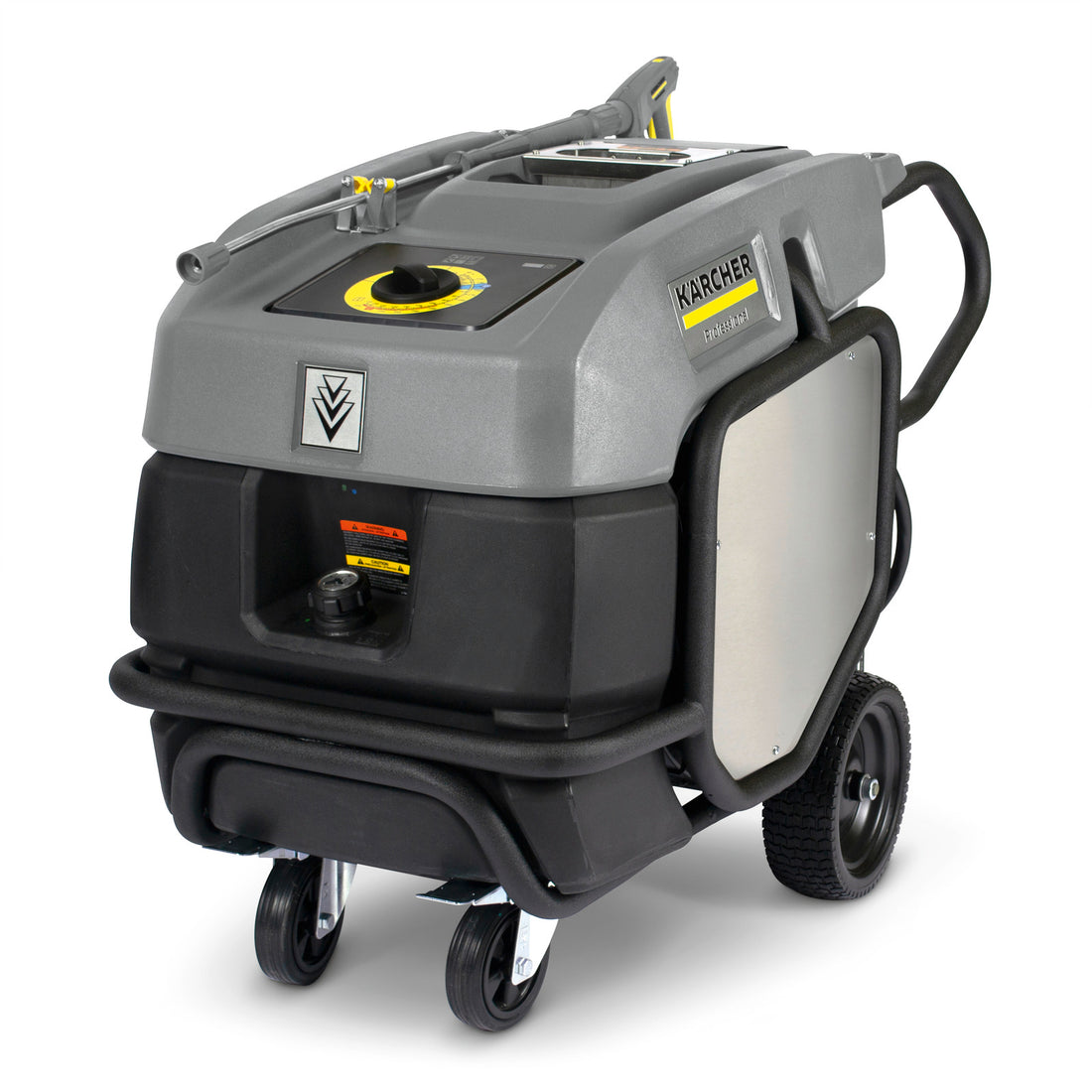

The Karcher Mojave series is a high-performance, all-around cleaning machine designed for agriculture, automotive, and transportation applications. Built with innovative features and high-quality components, it delivers superior cleaning results while withstanding harsh working conditions. This robust machine ensures maximum durability and reliable performance.
KEY APPLICATIONS:
-
Agriculture – Ideal for cleaning machinery, equipment, and vehicles in farming environments.
-
Automotive – Perfect for detailing, cleaning, and maintenance of vehicles, including cars, trucks, and workshops.
-
Transportation – Efficient for cleaning commercial vehicles, trucks, buses, and fleet maintenance in tough conditions.
-
Heavy Duty Industrial Cleaning – Suitable for high-performance cleaning in harsh, demanding environments.
FEATURES
-
Versatile Applications: Ideal for agriculture, automotive, and transportation sectors, making it a highly adaptable cleaning solution for various industries.
-
High-Performance Cleaning: Delivers exceptional cleaning results with powerful performance for tough, demanding cleaning tasks.
-
Robust Design: Built with a durable, rugged construction that withstands harsh working environments and extreme conditions.
-
Innovative Technology: Incorporates advanced features and high-quality components engineered for reliability and longevity.
-
Efficient Operation: Ensures fast, efficient cleaning, reducing time and effort in heavy-duty applications.
-
Easy Maintenance: Designed for easy maintenance to keep the machine running smoothly even under intense use.
INCLUDED ACCESSORIES:
- High-pressure hose length: 50 ft
TECHNICAL SPECIFICATIONS
• MAIN SUPPLY
▪ Voltage: 120 V
▪ Current Type (Ph/V/Hz): 1~60
▪ Connected Load: 4.5 hp (3.4 kW)
▪ Max. Amp: 20 A
• WATER CONNECTION
▪ Max. Inlet Temperature: 105°F (40°C)
▪ Min. Inlet Flow: 3 GPM (11 L/min)
▪ Suck Height from Open Container (68°F/20°C): 1.6 ft (0.5 m)
▪ Max. Inlet Pressure: 90 PSI (0.6 MPa)
• PERFORMANCE DATA
▪ Max. Flow Rate: 2.2 GPM (8.3 L/min)
▪ Operating Pressure: 1200 PSI (8.3 MPa)
▪ Max. Excess Operating Pressure (Safety Valve): 1950 PSI (13.4 MPa)
▪ Max. Operating Temperature of Hot Water: 190°F (88°C)
▪ Detergent Suck-in: 0 - 0.09 GPM (0 - 0.34 L/min)
▪ Burner Performance: 63 hp (160,500 BTU/h)
▪ Max. Consumption of Heating Oil: 1.26 GPH (4.1 kg/h)
• FUEL
▪ Fuel Type: Diesel or Home Heating Oil
▪ Fuel Tank Volume: 9.8 gal (37.1 L)
▪ Fuel Nozzle: 1.10 x 60 A
▪ Amount of Oil: 0.25 gal (0.95 L)
▪ Oil Grade: SAE 0W 40
• DIMENSIONS & WEIGHT
▪ Length x Width x Height: 46.4" x 28.4" x 39.3" (1177 x 720 x 972 mm)
▪ Shipping Weight: 432 lbs (196 kg)
▪ Machine Weight: 344 lbs (156 kg)
