DESCRIPTION

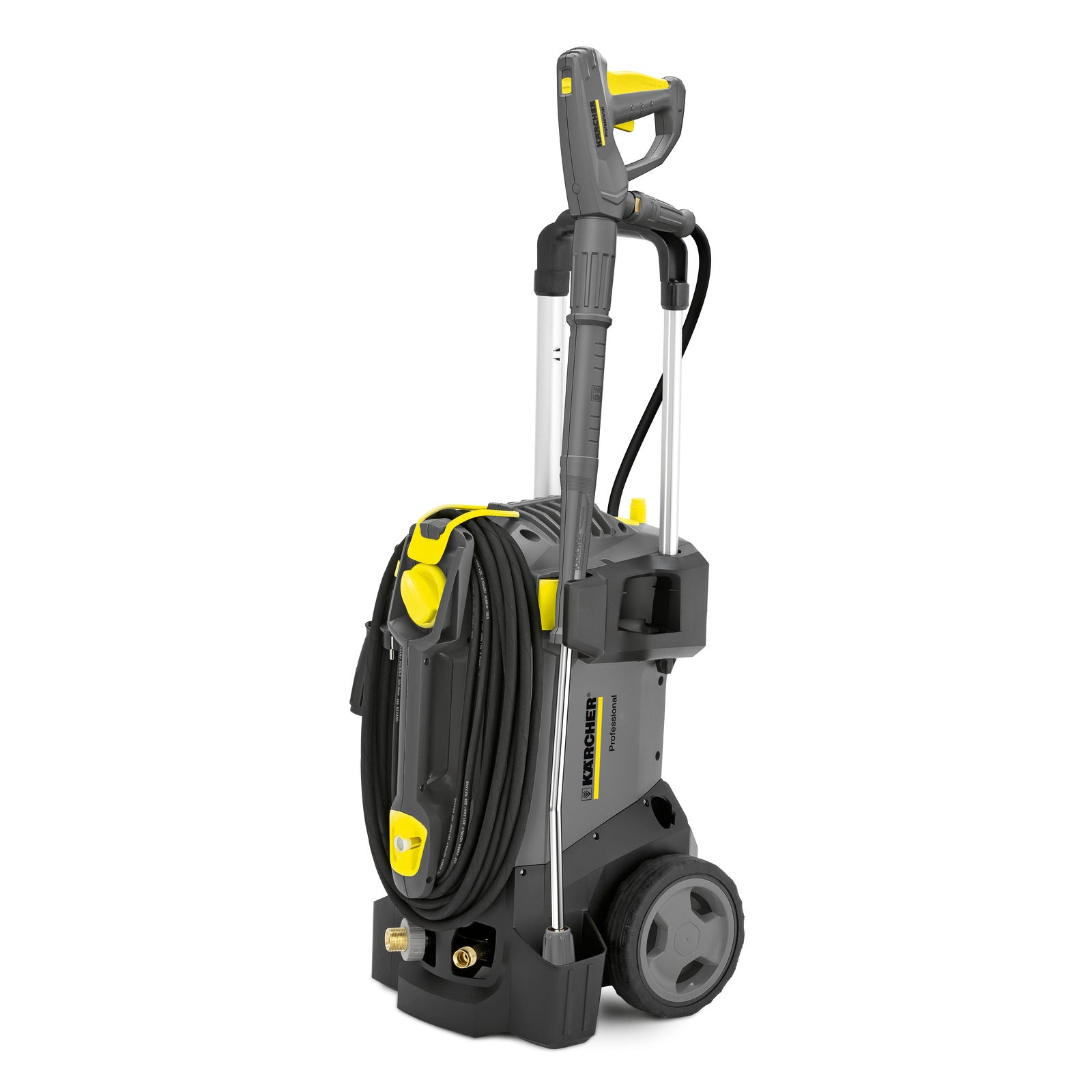

Karcher HD 1.8/13 C Ed Cold Water High-Pressure Cleaner – a versatile, lightweight, and compact machine built for mobility and performance. Equipped with a brass cylinder head for durability and innovative features like the EASY!Force high-pressure gun, which reduces holding force to zero, and EASY!Lock quick-release fasteners for 5x faster handling. Designed for vertical and horizontal use, it includes automatic pressure relief for a longer service life and smart accessory storage for added convenience.

KEY APPLICATIONS:

• Vehicle cleaning – Ideal for cars, vans, and light commercial vehicles due to its mobility and high-pressure performance.

• Facility maintenance – Suitable for cleaning workshops, garages, and service areas with ease.

• Construction site cleanup – Effectively removes dirt and debris from tools, machinery, and surfaces.

• Agricultural use – Cleans equipment, stables, and outdoor areas with durable and easy-to-handle operation.

• Public and municipal cleaning – Useful for cleaning sidewalks, parks, and public spaces, thanks to its compact and transportable design.

FEATURES

Quality

• The automatic pressure relief protects the components and extends the service life of the machine.
• High-quality brass cylinder head.
• Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.

Accessory storage

• Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine.
• Practical nozzle compartments for triple nozzle and rotary nozzle.
• Rubber strap for fixing the pressure hose.

INCLUDED ACCESSORIES:

• Spray gun: EASY!Force
• High-pressure hose length: 10 m
• High-pressure hose specification: DN 6, 200 bar
• Spray lance: 840 mm
• Triple nozzle (0°/ 25°/40°): manual

TECHNICAL SPECIFICATIONS

• MAIN SUPPLY
▪ Voltage: 120 V
▪ Current Type (Ph/V/Hz): 1~ 60 Hz
▪ Connected Load: 14 A
▪ Power Protection (Slow, Char. C): 15 A

• WATER CONNECTION
▪ Max. Feed Temperature: 140°F (60°C)
▪ Min. Feed Volume: 2.5 GPM (9.5 L/min)
▪ Suck Height from Open Container (20°C): 1.6 ft (0.5 m)
▪ Max. Feed Pressure: 145 PSI (1 MPa)

• PERFORMANCE DATA
▪ Operating Pressure (Using Standard Nozzle): 1300 PSI (9,000 kPa)
▪ Size of Standard Nozzle: 032
▪ Max. Operating Over-pressure: 1800 PSI (12.5 MPa)
▪ Water Flow Rate: 1.8 GPM (6.8 L/min)
▪ Detergent Suck-in: 0 - 6.6 GPH (0 - 25 L/h)
▪ Max. Recoil Force of Trigger Gun: 14.76 N

• NOISE EMISSION
▪ Hand-Arm Vibration Value: <2.5 m/s²
▪ Uncertainty (K): 0.7 m/s²
▪ Sound Pressure Level (LpA): 72 dB(A)
▪ Uncertainty (KpA): 3 dB(A)
▪ Sound Power Level (LWA): 88 dB(A)

• DIMENSIONS & WEIGHT
▪ Length: 380 mm (15 inches)
▪ Width: 360 mm (14.17 inches)
▪ Height: 930 mm (36.61 inches)
▪ Typical Operating Weight: 55.6 lbs (25.2 kg)
