DESCRIPTION

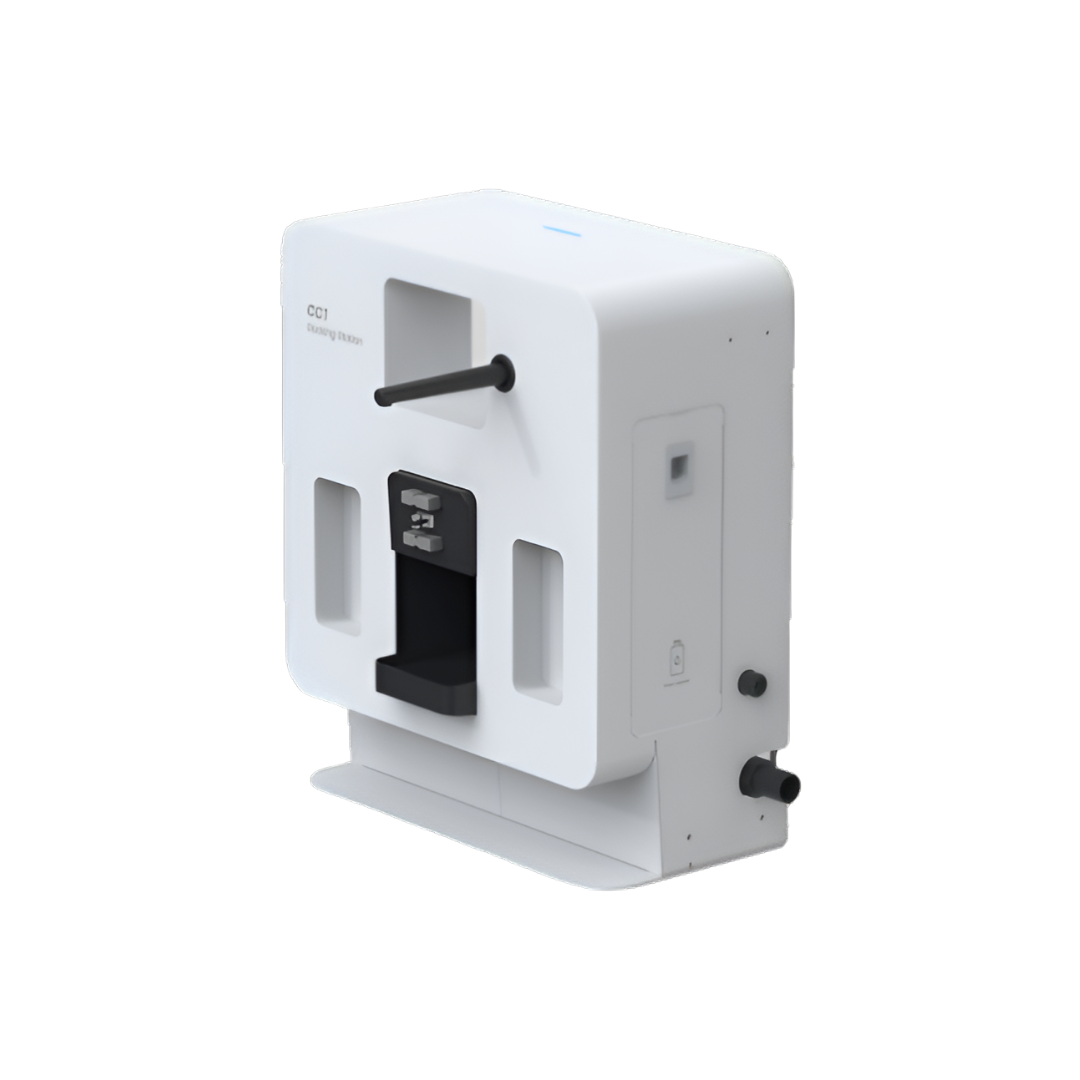

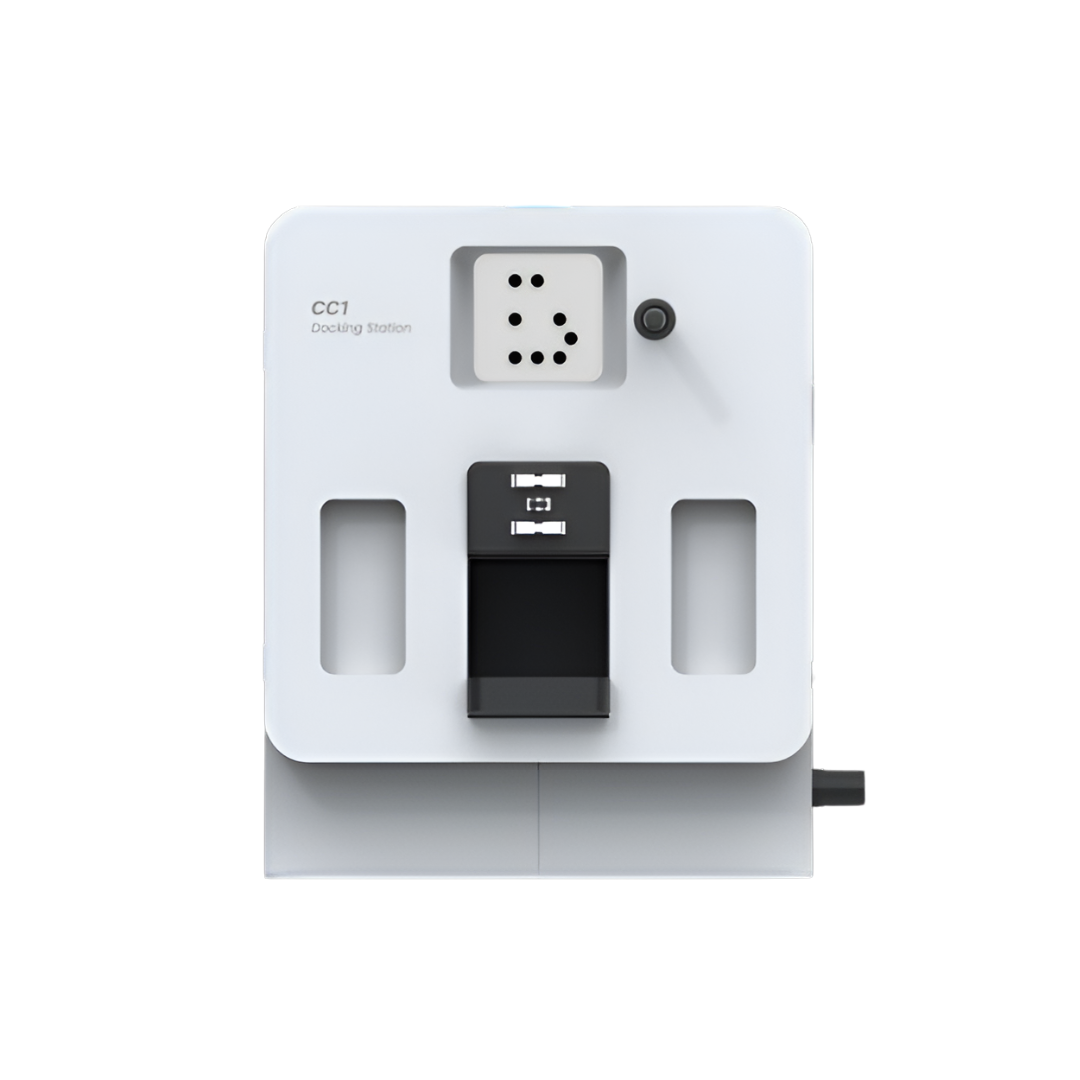

The PUDU Docking Station is an advanced automated support unit designed to enhance the performance of the PUDU CC1. It enables automatic water refill and discharge, auto power charging, and cleaning agent replenishment for fully autonomous operation. With built-in safety mechanisms, Bluetooth communication, and flexible scheduling, the Docking Station improves efficiency, safety, and convenience in commercial cleaning environments.

TECHNICAL SPECIFICATIONS

• Dimensions
  ◦ 404 × 497 × 274 mm (15.9 × 19.6 × 10.8 in)



• Weight
  ◦ 20 kg (44.1 lbs)



• Power Input/Output
  ◦ Input Voltage: 90–264 V AC
  ◦ Output Voltage: DC 24 V



• Environmental Conditions
  ◦ Operating Temperature: 0 to 40 °C (32 to 104 °F)
  ◦ Operating Humidity: ≤ 90% RH at 40 °C (104 °F)
  ◦ Storage Temperature: -20 to 70 °C (-4 to 158 °F)



• Communication Method
  ◦ Bluetooth



• Installation Requirements
  ◦ Must be fixed to the ground or against a wall



• External Dependencies
  ◦ Requires water source, floor drain, and power supply
