DESCRIPTION

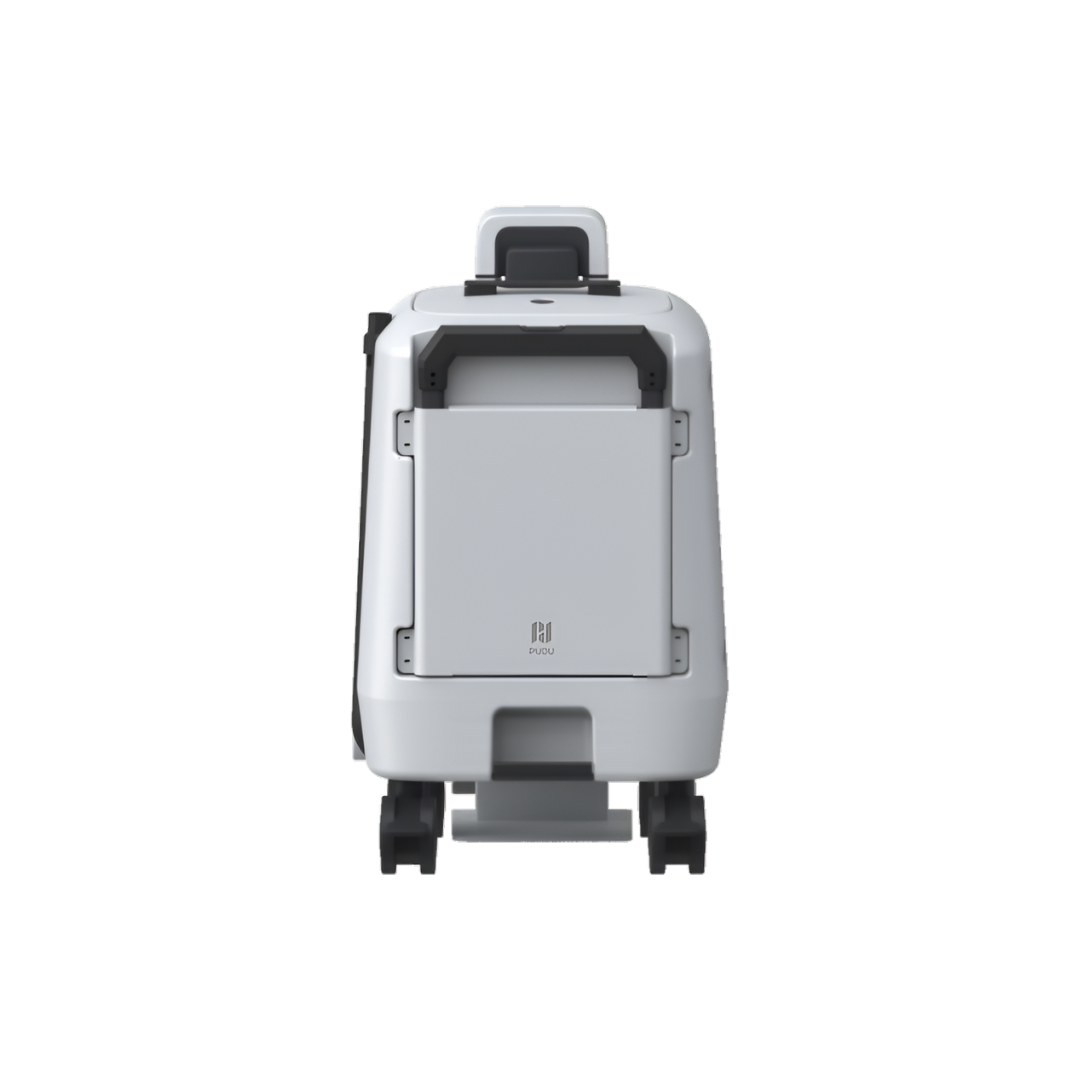

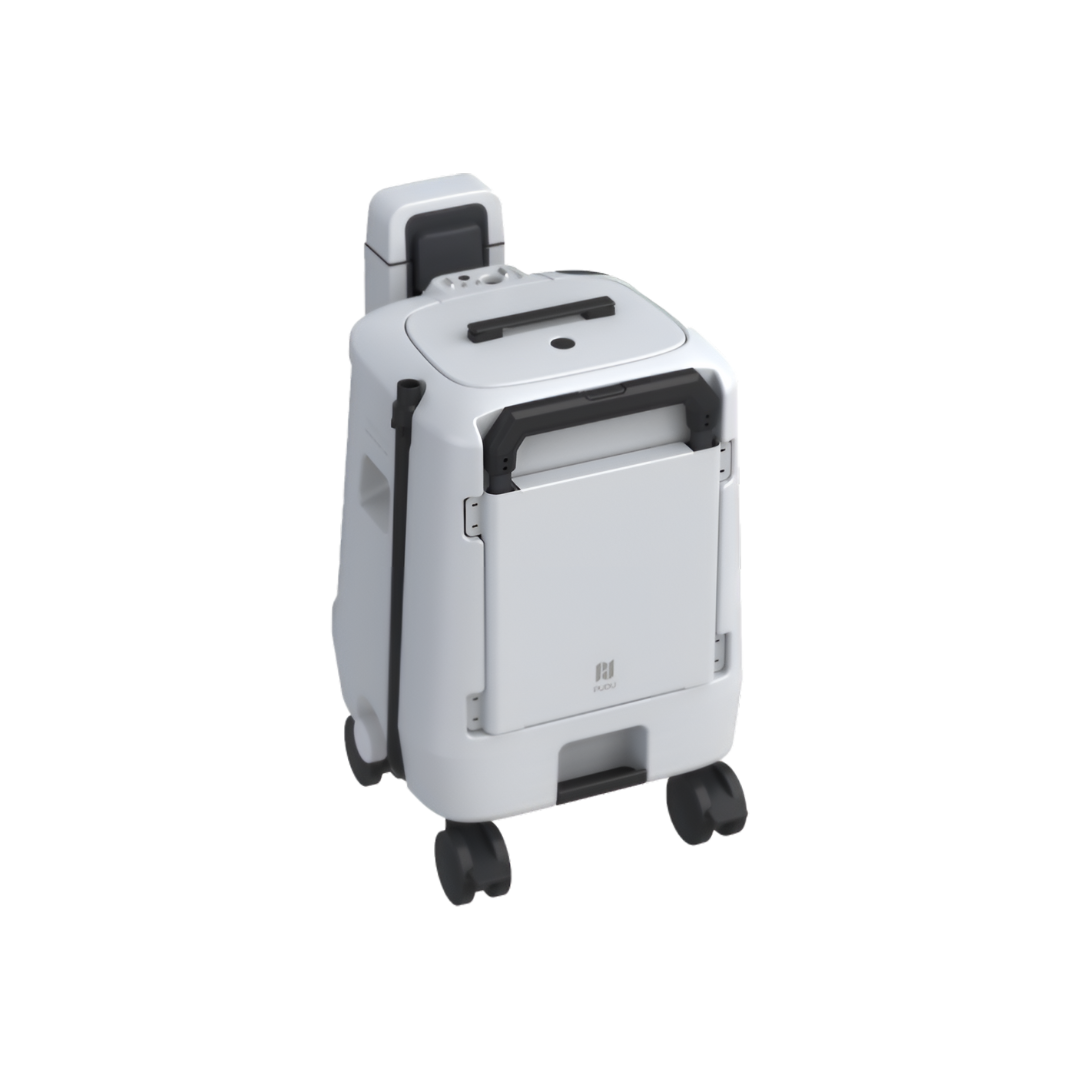

The PUDU Mobile Water Station is a portable water charging solution designed to work seamlessly with autonomous cleaning systems. Featuring a trolley-style design, it eliminates the need for plumbing modifications and provides intelligent monitoring with real-time water change alerts. Ideal for environments that require efficient, mobile, and hygienic water management.

TECHNICAL SPECIFICATIONS

• Dimensions
  ◦ Base: 262 × 230 × 787 mm (10.3 × 9.1 × 31 in)
  ◦ Mobile Water Tank: 480 × 470 × 740 mm (18.9 × 18.5 × 29.1 in)



• Weight
  ◦ Base: 8 kg (17.6 lbs)
  ◦ Mobile Water Tank: 20 kg (44.1 lbs)



• Tank Capacity
  ◦ Clean Water Tank: 30 L (7.9 gal)
  ◦ Sewage Tank: 30 L (7.9 gal)



• Power Input
  ◦ Voltage: 29.2 VDC
  ◦ Current: 2.5 A



• Environmental Conditions
  ◦ Operating Temperature: 0 to 40 °C (32 to 104 °F)
  ◦ Operating Humidity: ≤ 90% RH at 40 °C (104 °F)
  ◦ Storage Temperature: -20 to 60 °C (-4 to 140 °F)



• Installation Requirement
  ◦ Base must be fixed to the ground or a wall



• Connection Method
  ◦ Electrical and water connection to fixed workstation
