DESCRIPTION

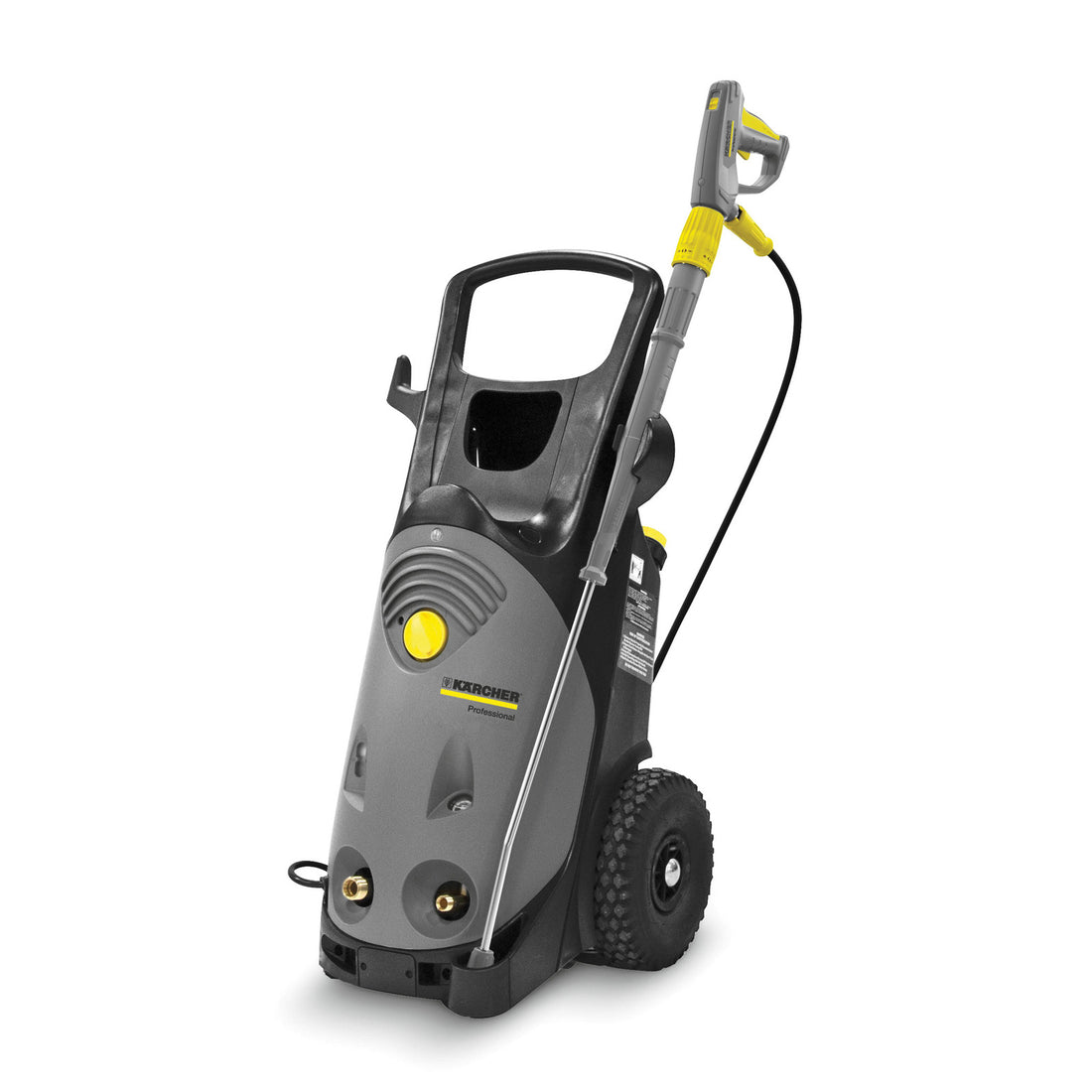

Compact and powerful, the Karcher HD 3.5/30-4 S Ea delivers up to 250 bar pressure and a maximum flow rate of 1,000 l/h with a robust three-phase drive. Its upright design and large rubber-tyred wheels ensure easy handling and transport, even on rough terrain.

KEY APPLICATIONS:

• Construction Sites – Ideal for removing tough dirt and debris from machinery, vehicles, and surfaces

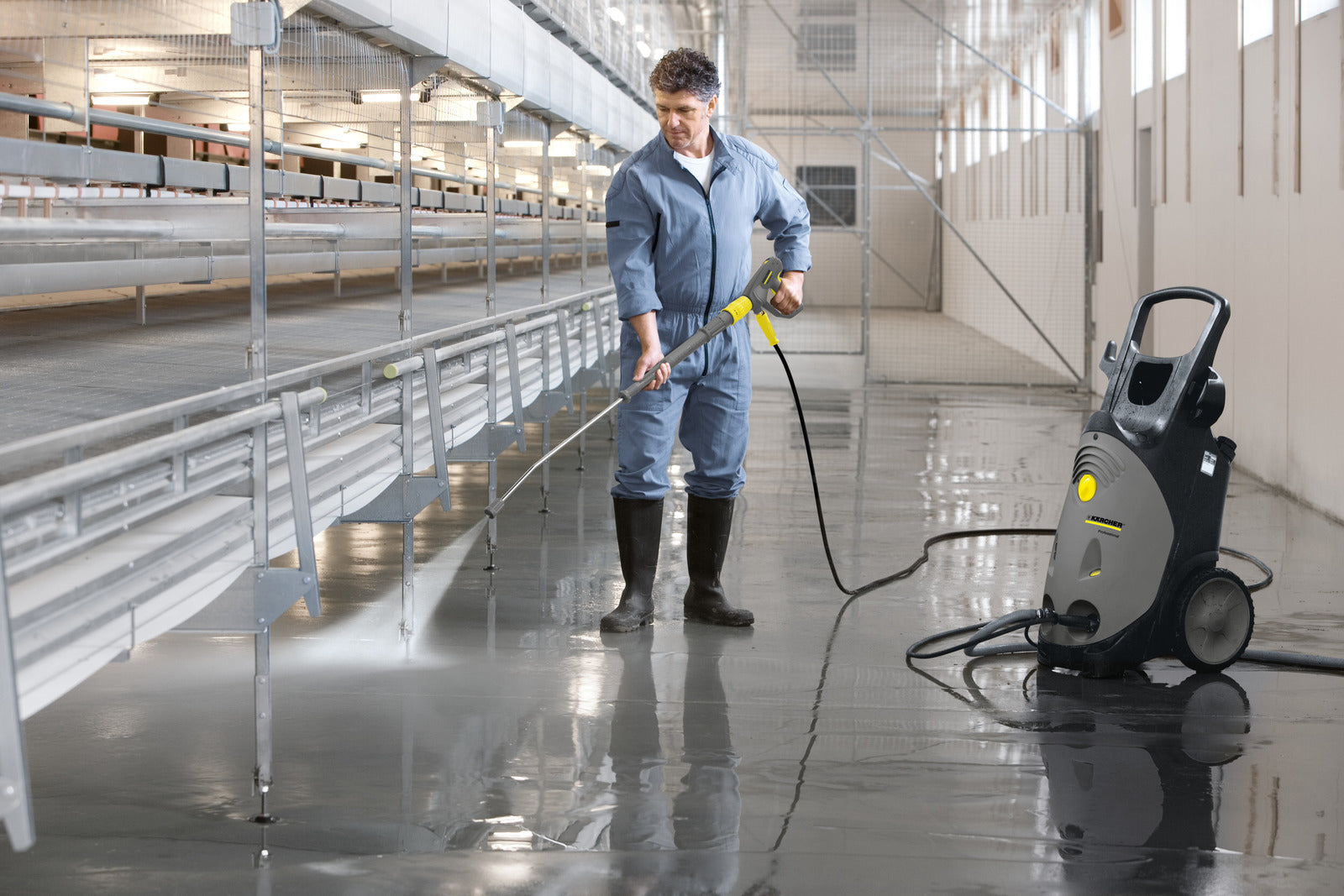

• Agriculture – Effective in cleaning farm equipment, stables, and animal enclosures

• Transport & Logistics – Suitable for cleaning trucks, trailers, loading bays, and warehouses

• Municipal Services – Perfect for maintaining public spaces, pavements, and outdoor furniture

• Industrial Cleaning – Designed for heavy-duty tasks in factories and workshops

• Facility Management – Versatile solution for cleaning large buildings, exteriors, and common areas

FEATURES

• EASY!Force High-pressure Gun:
  Reduces holding force to zero, ensuring effortless operation.

• EASY!Lock Quick-release Fasteners:
  Makes handling five times faster than conventional screw connections, saving time and energy.

• Proven Karcher Quality:
  4-pole water-cooled electric motor, robust brass cylinder head, and ceramic piston ensure long-lasting durability.

• Increased Safety:
  Integrated electronics system automatically switches off the machine in case of voltage irregularities or leaks.

• Outstanding Mobility:
  Large wheels for easy movement on uneven surfaces and ergonomic transport using the sack truck principle.

INCLUDED ACCESSORIES:

• Spray gun: EASY!Force Advanced
• Spray gun with soft grip padding
• High-pressure hose length: 15 m
• Spray lance: 1050 mm
• Power nozzle
• Servo control

TECHNICAL SPECIFICATIONS

• MAIN SUPPLY
▪ Voltage: 220-240 V
▪ Current Type: 1~ 60 Hz
▪ Power Input: 9 hp / 6.7 kW
▪ Protection: 30 A (slow, char. C)
▪ Type of Protection: IPX5

• WATER CONNECTION
▪ Max. Feed Temperature: 140°F (60°C)
▪ Min. Feed Volume: 5.3 GPM (20 L/min)
▪ Suck Height from Open Container: 1.6 ft (0.5 m)
▪ Max. Feed Pressure: 145 PSI (1 MPa)

• PERFORMANCE DATA
▪ Working Pressure: 435 - 3000 PSI (3 - 20.6 MPa)
▪ Max. Operating Over-pressure: 3300 PSI (22.7 MPa)
▪ Nozzle Size: 045
▪ Flow Rate: 1.8 - 3.5 GPM (6.8 - 13.2 L/min)
▪ Detergent Suck-in: 0 - 0.3 GPM (0 - 1.1 L/min)
▪ Max. Recoil Force of Trigger Gun: 62 N

• VIBRATION & SOUND
▪ Hand Spray Gun Hand-arm Vibration: <2.5 m/s²
▪ Spray Lance Vibration: <2.5 m/s²
▪ Sound Pressure Level (LpA): 72 dB(A)
▪ Sound Power Level (LWA): 87 dB(A)

• FUEL
▪ Amount of Oil: 1.2 L
▪ Oil Grade: SAE 15W40

• DIMENSIONS & WEIGHT
▪ Length: 560 mm (22.05 inches)
▪ Width: 500 mm (19.69 inches)
▪ Height: 1090 mm (42.91 inches)
▪ Volume of Detergent Tank: 6 L (1.59 gallons)
▪ Typical Operating Weight: 62 kg (136.7 lbs)
