DESCRIPTION

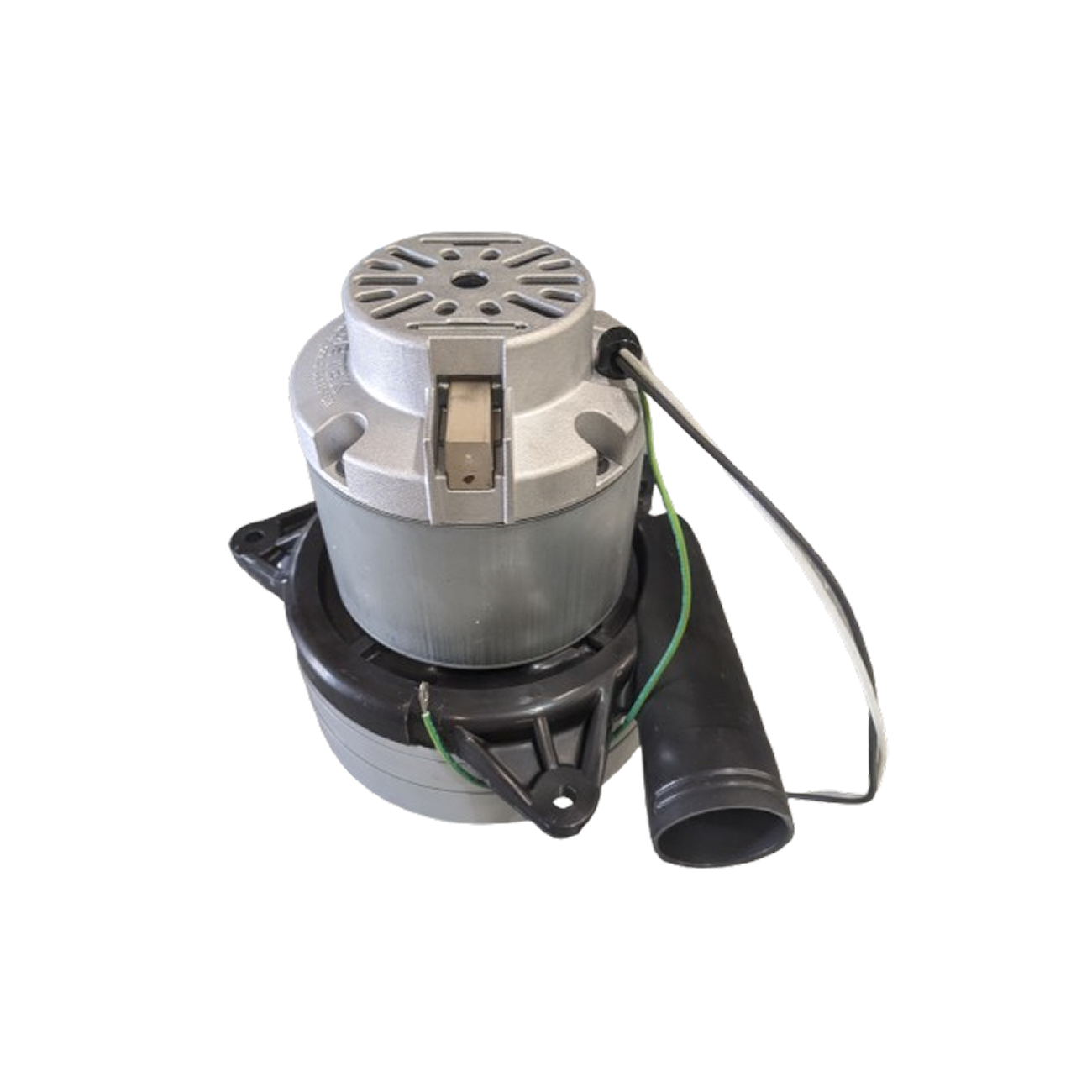

Purchase the Esteam 500 PSI 3-Stage vacuum motor for reliable performance in professional cleaning applications. This 120V tangential bypass vacuum motor is designed to deliver powerful suction, strong water lift, and consistent airflow for 500 PSI extraction systems, ensuring dependable moisture recovery in demanding commercial environments.

The 3-stage fan design provides up to 94 CFM airflow and 134.1 inches of sealed water lift for efficient extraction performance. The tangential bypass configuration helps keep motor components cooler by directing exhaust air away from electrical parts, improving reliability and extending motor life.

Built for durability, this motor features double air-sealed ball bearings and an epoxy-coated housing that helps resist moisture, dirt, and corrosion during heavy-duty cleaning applications.

COMPATIBLE MACHINES

• Esteam Ninja 500

• Esteam Ninja 500-10

• Esteam Defender 500

• Esteam Defender 500-10

TECHNICAL SPECIFICATIONS

• Pressure Rating: 500 PSI

• Type: 3-Stage tangential bypass vacuum motor

• Voltage: 120V AC

• Fan Stages: 3

• Airflow: 94 CFM

• Sealed Water Lift: 134.1″ H₂O

• Air Watts: 406

• Current Draw: 12.5–13.0 Amps

• Motor Diameter: 7.2″

• Construction: Epoxy-coated housing with double air-sealed ball bearings
