DESCRIPTION

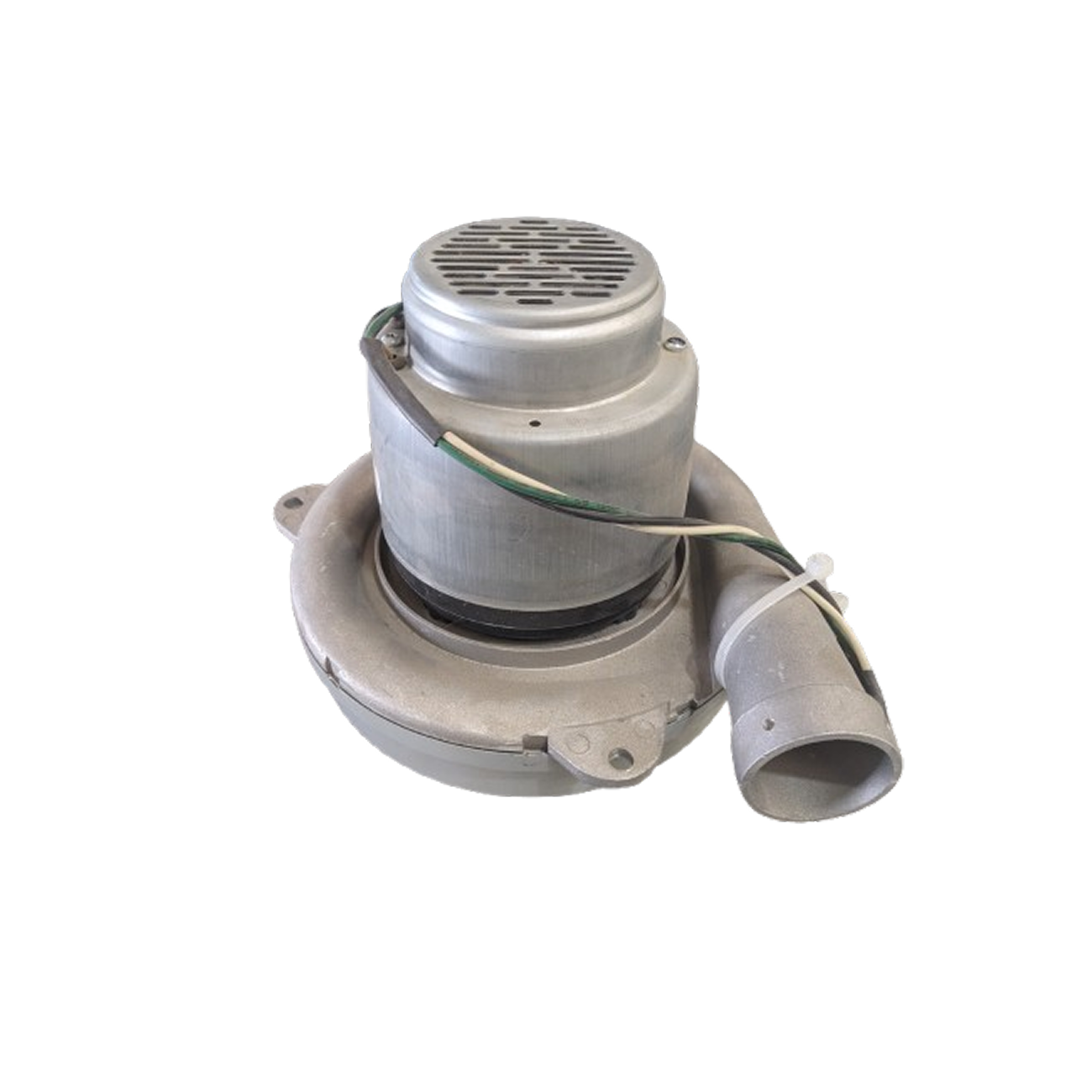

Purchase the Esteam 8.4″ 120V 2-Stage vacuum motor for reliable performance in professional cleaning applications. This heavy-duty motor is designed to deliver strong suction and consistent airflow for demanding commercial and industrial extraction systems.

The tangential bypass design separates cooling air from working airflow, helping protect the motor in moisture-prone environments and improving long-term durability. With a high-efficiency tapered fan system, it delivers powerful performance with up to 141.5 CFM airflow and 146.6 inches of sealed water lift, ensuring efficient extraction results.

Built for extended service life, the motor includes double ball bearings, long-life carbon brushes, and an integrated thermal protection system to prevent damage from overload, blocked airflow, or locked rotor conditions.

COMPATIBLE MACHINES

TECHNICAL SPECIFICATIONS

• Type: 2-Stage tangential bypass vacuum motor

• Voltage: 120V AC

• Motor Diameter: 8.4″

• Airflow: 141.5 CFM

• Sealed Vacuum: 146.6″ H₂O

• Air Watts: 673

• Current Draw: 13.8 Amps

• Bearings: Double ball bearings

• Brush Life: 1,500+ hours

• Protection: Built-in thermal overload protection system
