DESCRIPTION

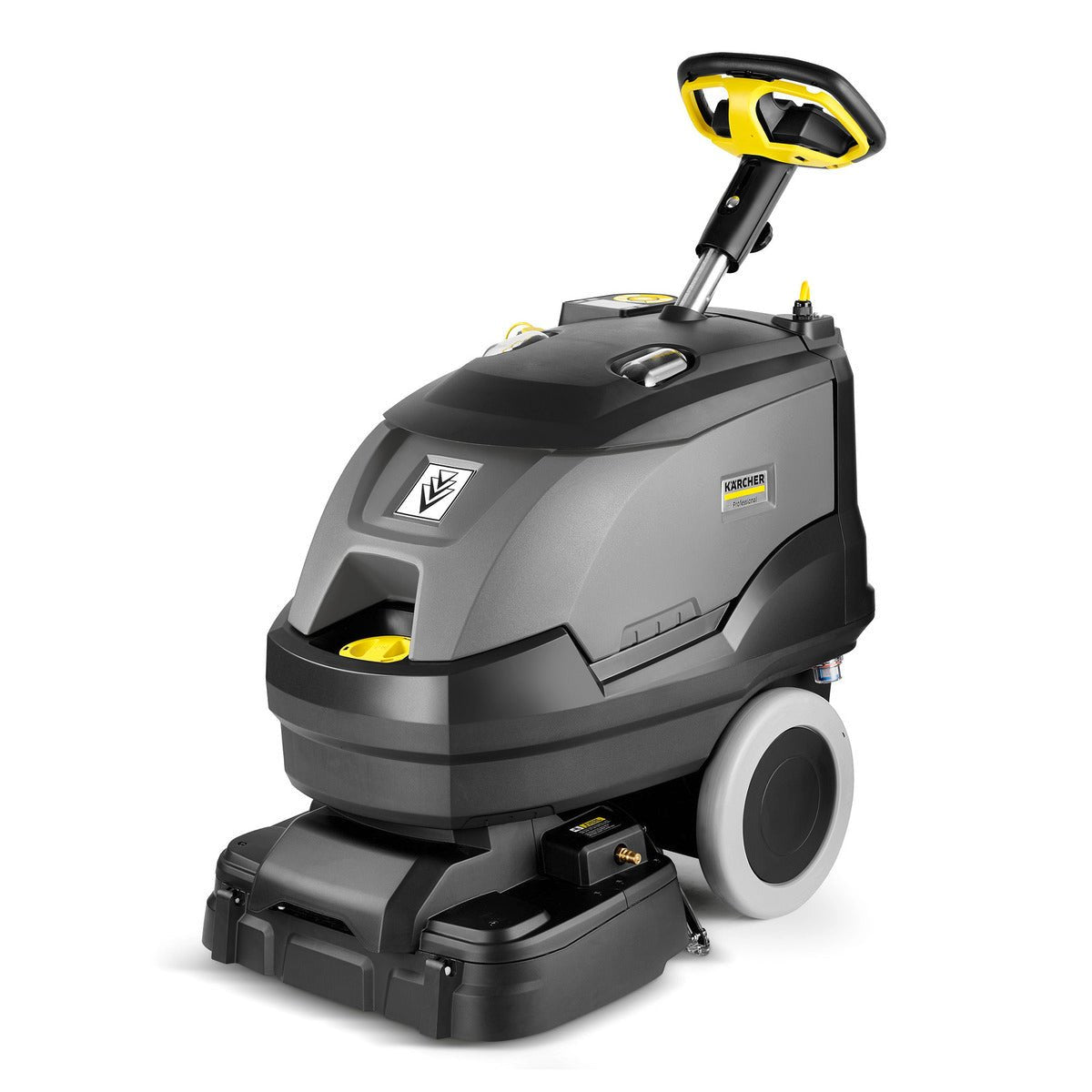

Buy the Karcher Armada BRC 45/38 Carpet Extractor for powerful and efficient carpet cleaning. With 1.5 hp motor power and 120” (3050 mm) water lift, this machine provides superior extraction capabilities. The eco!efficiency mode reduces noise levels for daytime use while offering 40% faster drying times. This self-contained extractor offers user-friendly features like a walk-forward design and tool-free maintenance, making it ideal for commercial environments. Equipped with an 18" cleaning path and 8-gallon solution tank, this machine ensures high-performance results for spot and deep extraction cleaning.

KEY APPLICATIONS:

• Commercial carpet cleaning for large and small areas
• Deep carpet extraction for high-traffic environments
• Spot cleaning for stubborn stains in offices, hotels, and gyms
• Upholstery cleaning for furniture, chairs, and fabric surfaces
• Ideal for cleaning stairs, corners, and hard-to-reach areas
• Fast-drying carpet cleaning in commercial spaces
• Hard floor cleaning (with optional kit) for versatile surface cleaning
• Suitable for both interim and restorative cleaning

FEATURES

• Walk-Forward Ergonomics:
  The only extractor of its kind, offering enhanced operator comfort and improved productivity.

• Articulating Head:
  Ensures easy carpet cleaning with minimal effort and adapts to carpet contours.

• Eco!Efficiency Mode:
  Quiet operation for daytime cleaning and 40% faster drying times.

• LED Feedback:
  Provides visual operation feedback for ease of use and better monitoring.

• Tool-Free Maintenance:
  Easy daily upkeep with accessible components for cleaning and maintenance.



INCLUDED ACCESSORIES:

• Quick-connect ports for accessory tools (upholstery, stairs, detail cleaning)
• Optional hard floor cleaning kit (sold separately)

TECHNICAL SPECIFICATIONS

• DIMENSIONS & WEIGHT:

  ▪ Height: 43 inches / 1092.2 mm
  ▪ Length: 37.5 inches / 952.5 mm
  ▪ Width: 21.75 inches / 552.5 mm
  ▪ Width of Scrub Path: 19 inches / 482.6 mm
  ▪ Weight: 125 lbs / 56.9 kg with cord
  ▪ Wheels: (2) 10” dia. / 25 cm wheels by 2”
  ▪ Vacuum Shoe: 17” / 43.18 cm cast aluminum with spring-loaded down pressure



• MOTOR & PUMP:

  ▪ Vacuum Motor: Three-stage, bypass, 1.5 hp, 1119 watts, 100 cfm (2.8 m³/min), 120” (3050 mm) waterlift
  ▪ Solution Pump: 50 psi (3.5 bar) - Interim, 100 psi (7 bar) - Restorative



• BRUSH & CLEANING PERFORMANCE:

  ▪ Brush Motor: 0.1 hp (74.57 watts) DC
  ▪ Brush: 18” (457 mm), ABS core
  ▪ Cleaning Path: 18” (45.7 cm)
  ▪ Flow Rate: Interim - 0.08 gpm (0.30 lpm), Restorative - 0.75 gpm (2.88 lpm)



• SOLUTION SPRAY:

  ▪ Interim: One quick-disconnect jet
  ▪ Restorative: Two quick-disconnect jets



• TANK CAPACITY:

  ▪ Solution Tank: 10 gallons / 38 L
  ▪ Recovery Tank: 8 gallons / 30 L



• POWER & CABLE:

  ▪ Power Cable: 50’ / 15 m detachable



• NOISE EMISSION & VIBRATION:

  ▪ Sound Pressure Level (EN 60704-1): 68.2 dB(A) Normal, 66.4 dB(A) ECO
  ▪ Vibration Total Value (ISO 5349): 0.70 m/s²
