DESCRIPTION

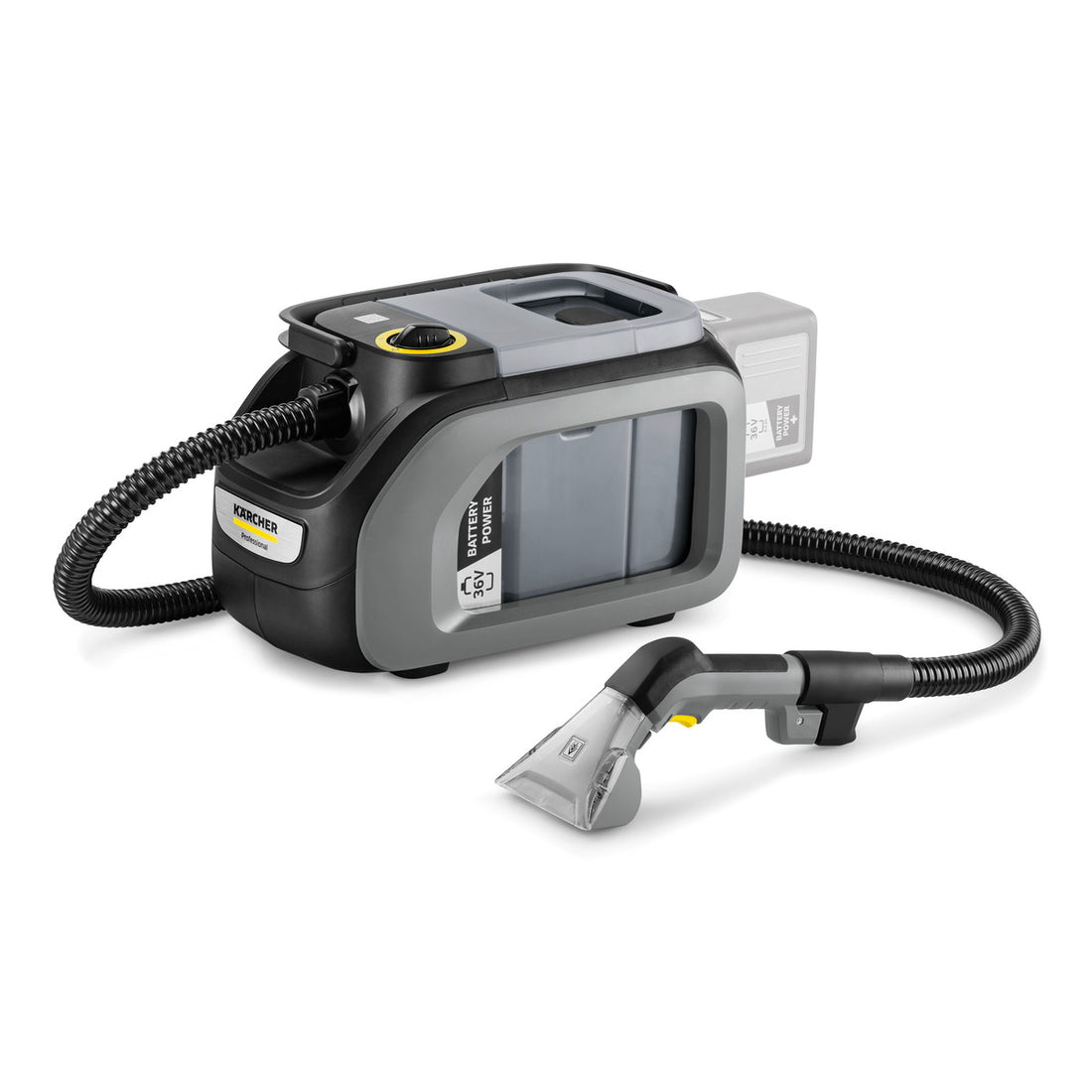

The Karcher Puzzi 2/1 Bp is a robust, durable, and battery powered spray extraction cleaner, perfect for spot cleaning and stain removal on textiles like car seats, upholstered furniture, and more. Featuring powerful vacuum performance for fast drying, it combines a compact design, lightweight build, and ergonomic handle for one-handed portability. The pressurised spray system delivers deep cleaning by injecting solution into fibres and vacuuming out dirt. Includes: upholstery nozzle, spray/suction hose, separate fresh/dirty water tanks, and built-in accessory storage.

KEY APPLICATIONS

• AUTOMOTIVE DETAILING
  ▫ Stain removal on textile vehicle seats
  ▫ Deep cleaning of interior upholstery
  ▫ Spot extraction on floor mats

• HOSPITALITY & COMMERCIAL

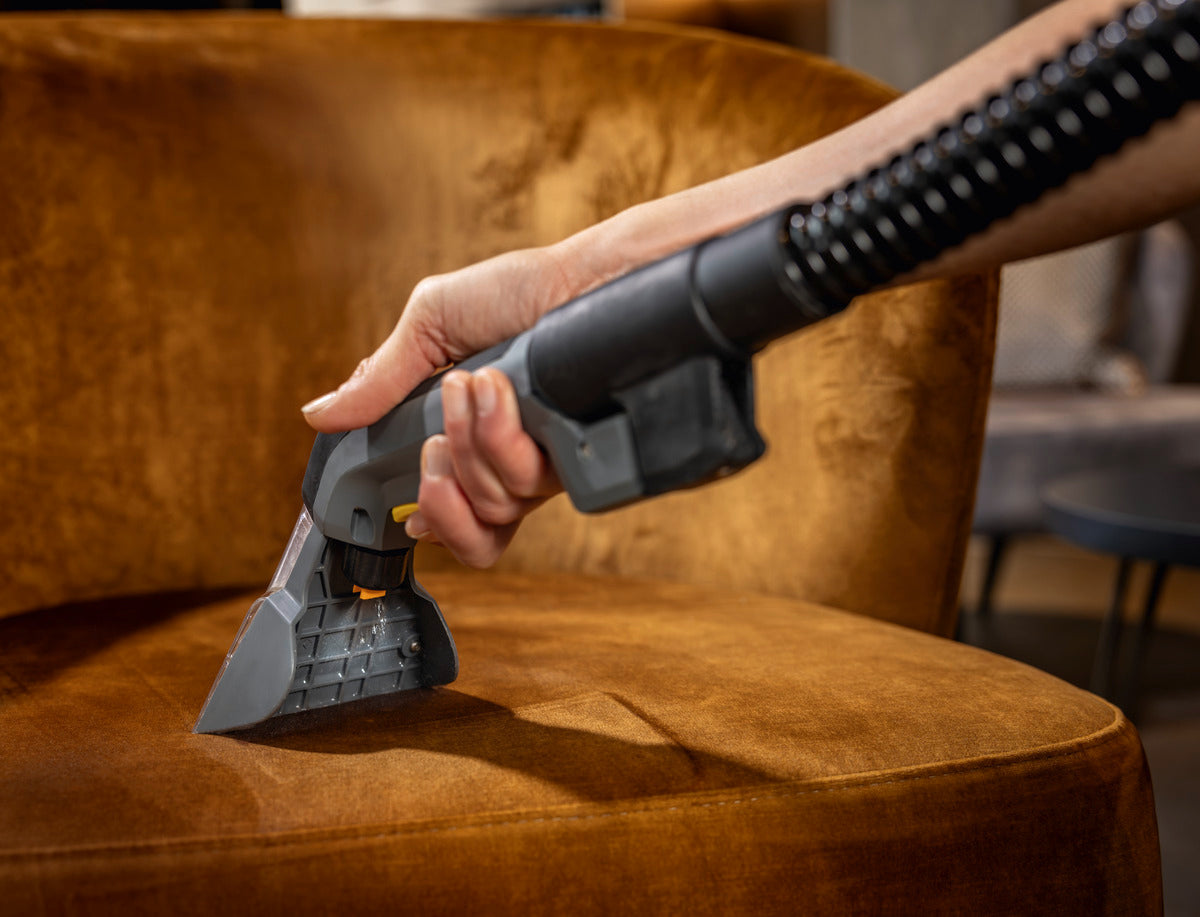

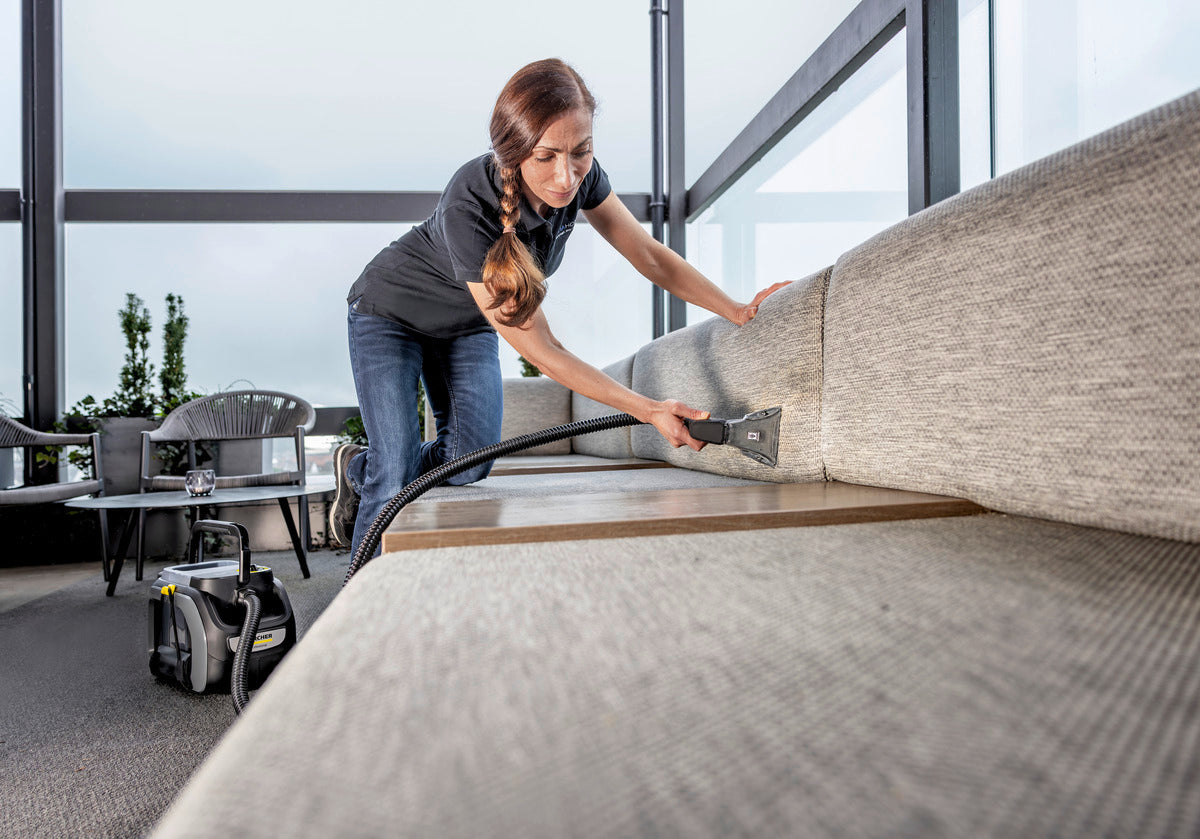

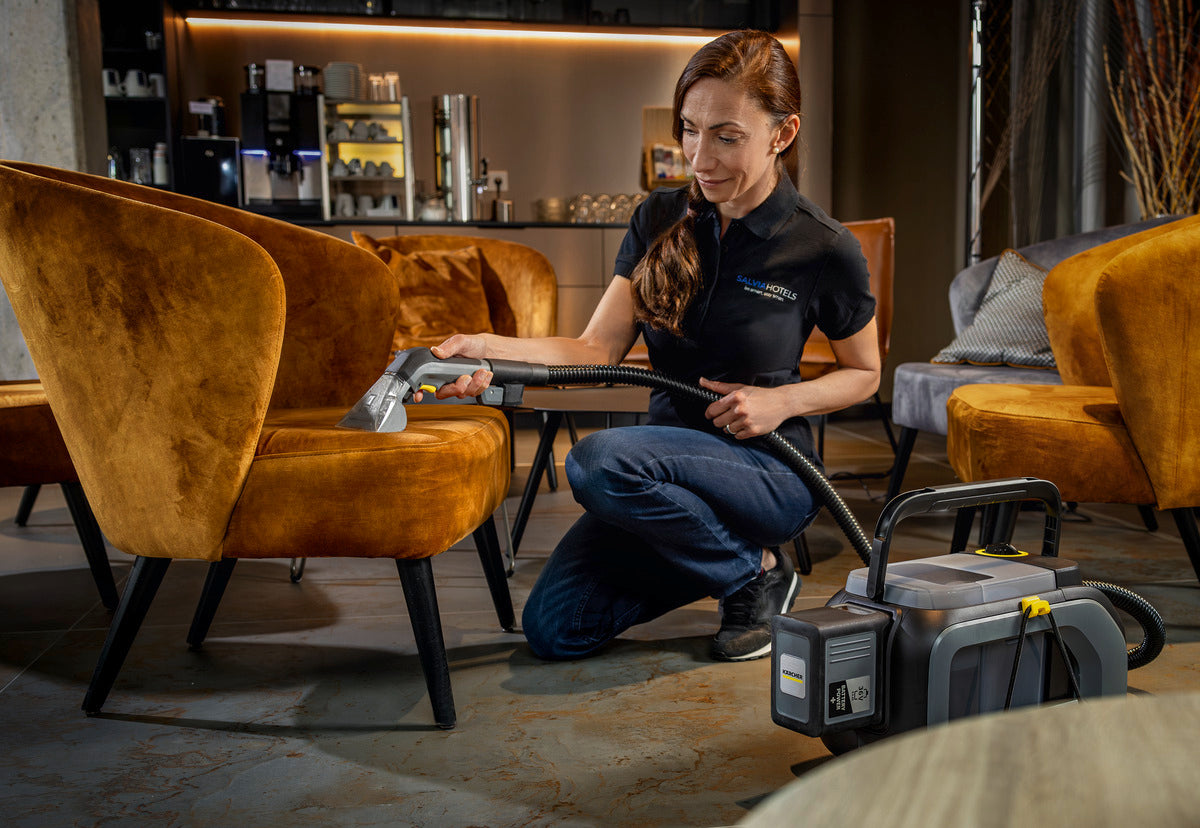

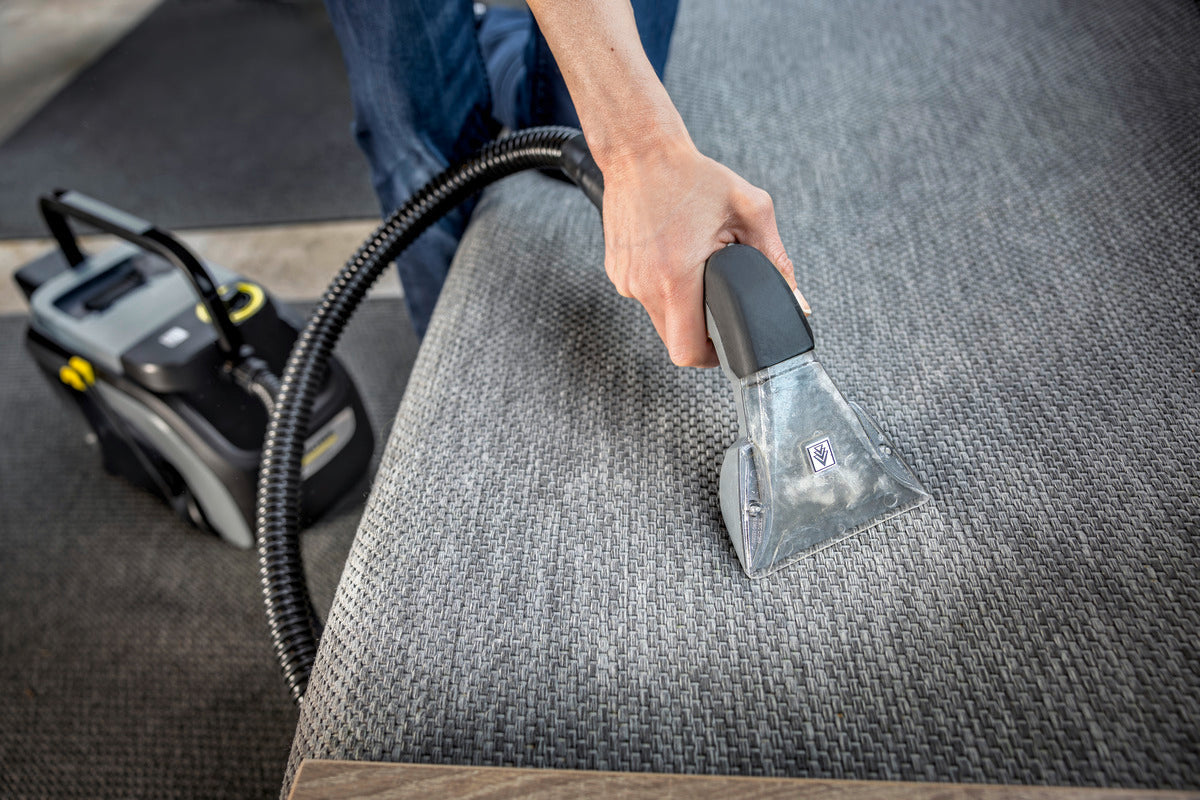

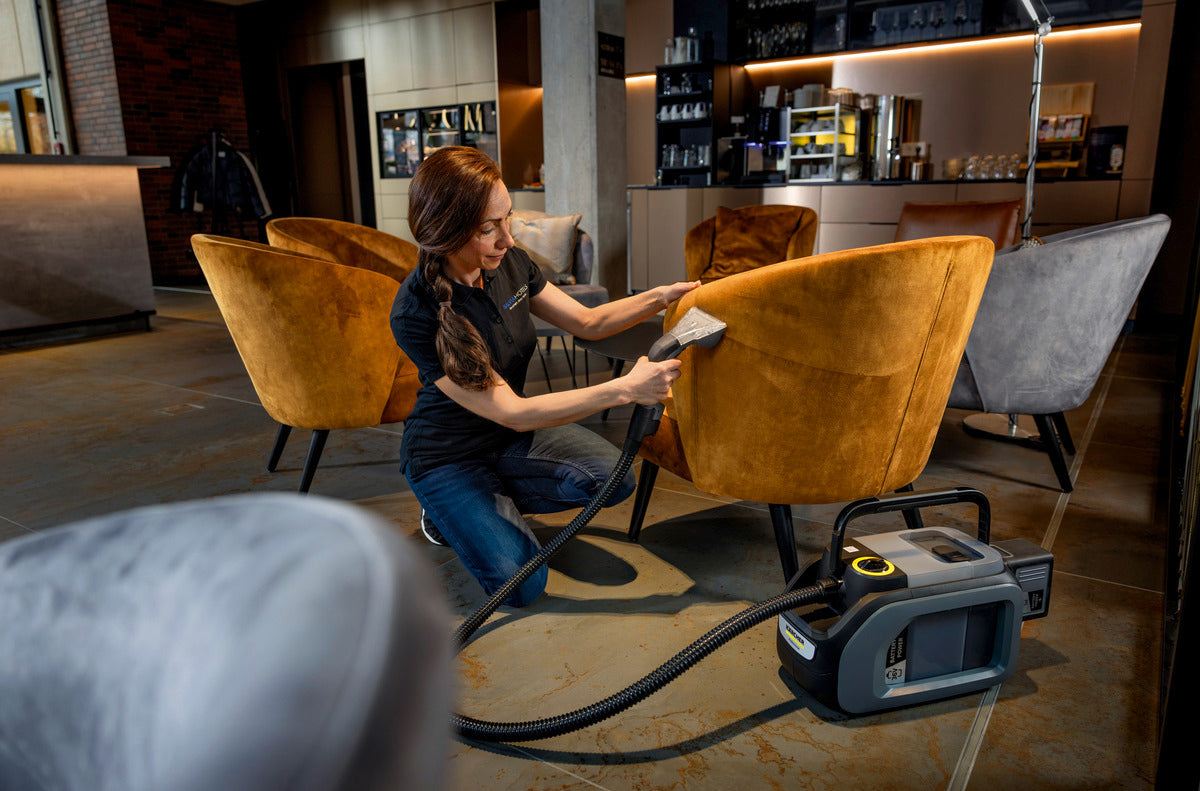

  ▫ Stain removal on upholstered furniture

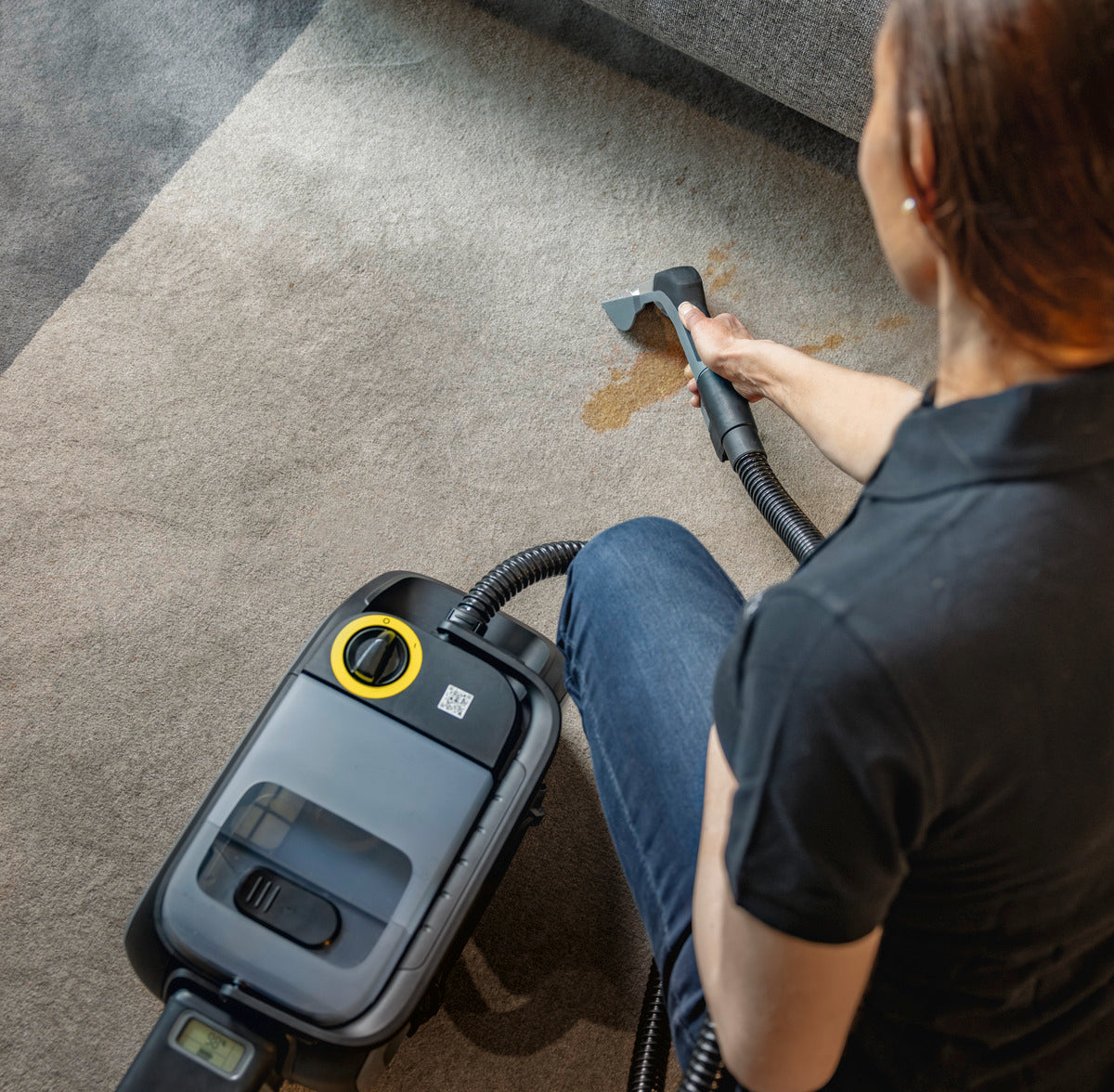

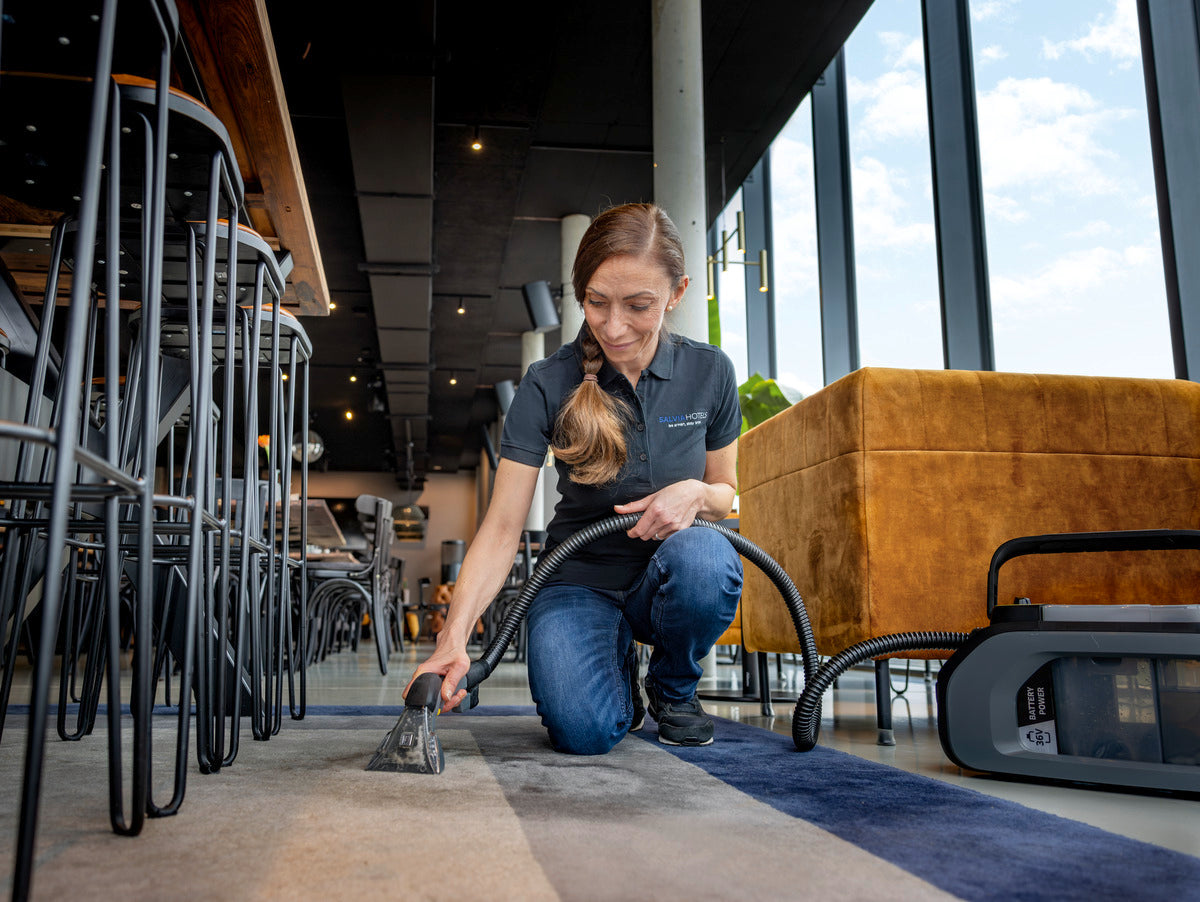

  ▫ Spot cleaning of carpets and rugs

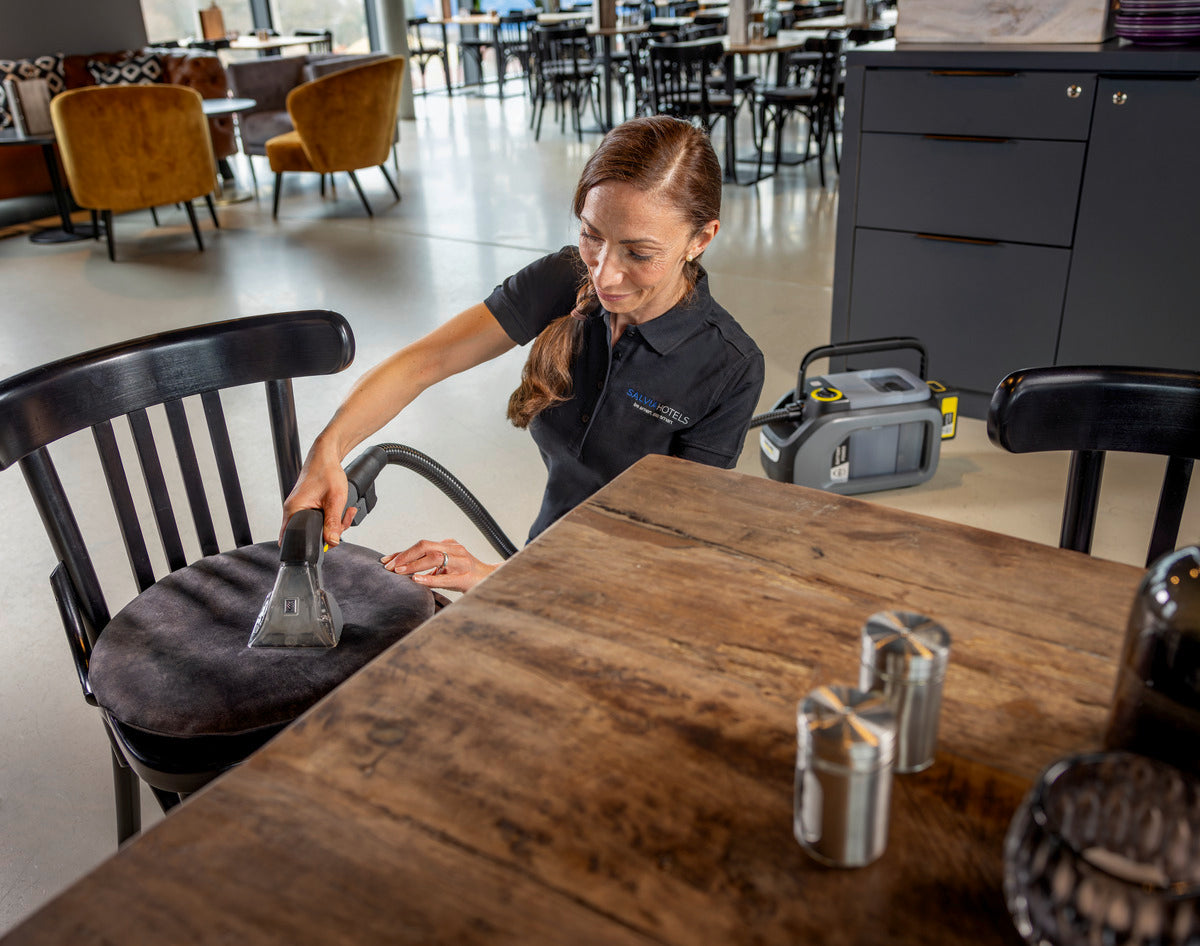

  ▫ Cleaning of all textile surfaces in waiting areas and lounges

• RESIDENTIAL & SERVICE
  ▫ Targeted stain treatment on couches and chairs
  ▫ Spot cleaning on area rugs and upholstery
  ▫ Portable extraction on mattresses and fabrics

FEATURES

• Excellent Cleaning Performance
  ▪︎ High vacuum power for strong suction with a clear before-and-after effect
  ▪︎ Fine, even spray pattern from the upholstery nozzle



• Compact Design with High Mobility
  ▪︎ Compact size fits tight or hard-to-reach areas
  ▪︎ Wireless and flexible use for convenient mobility
  ▪︎ Easy to store in small spaces



• Professional Quality
  ▪︎ Turbine rated for up to 1,000 hours of use
  ▪︎ Durable diaphragm pump and upholstery nozzle



• Full Flexibility – Kärcher 36V Platform
  ▪︎ Compatible with all Kärcher 36 V Battery Power+/Power batteries
  ▪︎ Battery runtime visible on integrated display
  ▪︎ Quick and easy battery replacement



• User-Friendly Operation

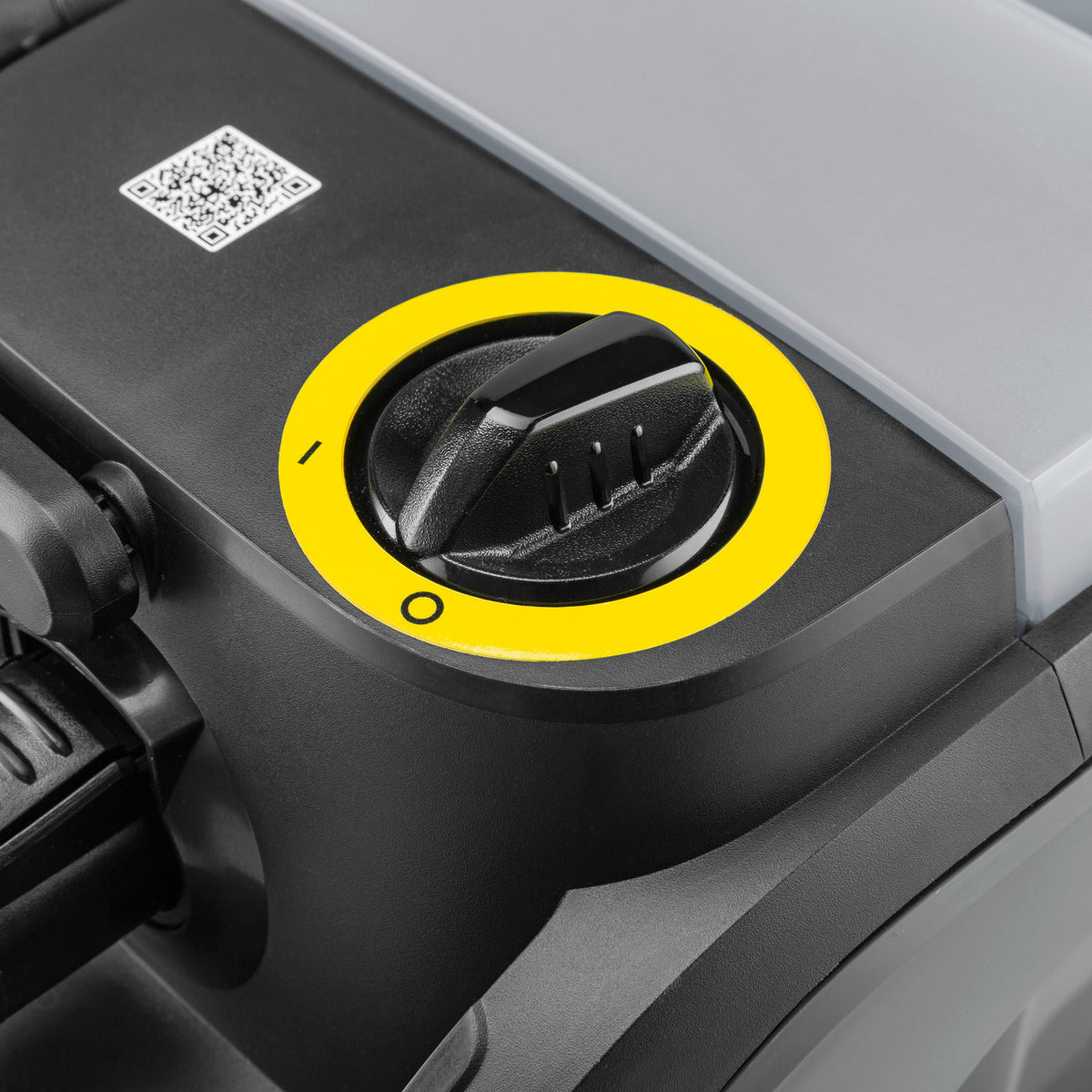

  ▪︎ Simple rotary switch for on/off control
  ▪︎ One-finger operation with ergonomic upholstery nozzle
  ▪︎ Quick-to-fill and empty water containers



• Ergonomic Upholstery Nozzle Design
  ▪︎ Extra-short and robust for confined areas like vehicle interiors
  ▪︎ Reduced water use with excellent spray pattern
  ▪︎ Comfortable two-part handle

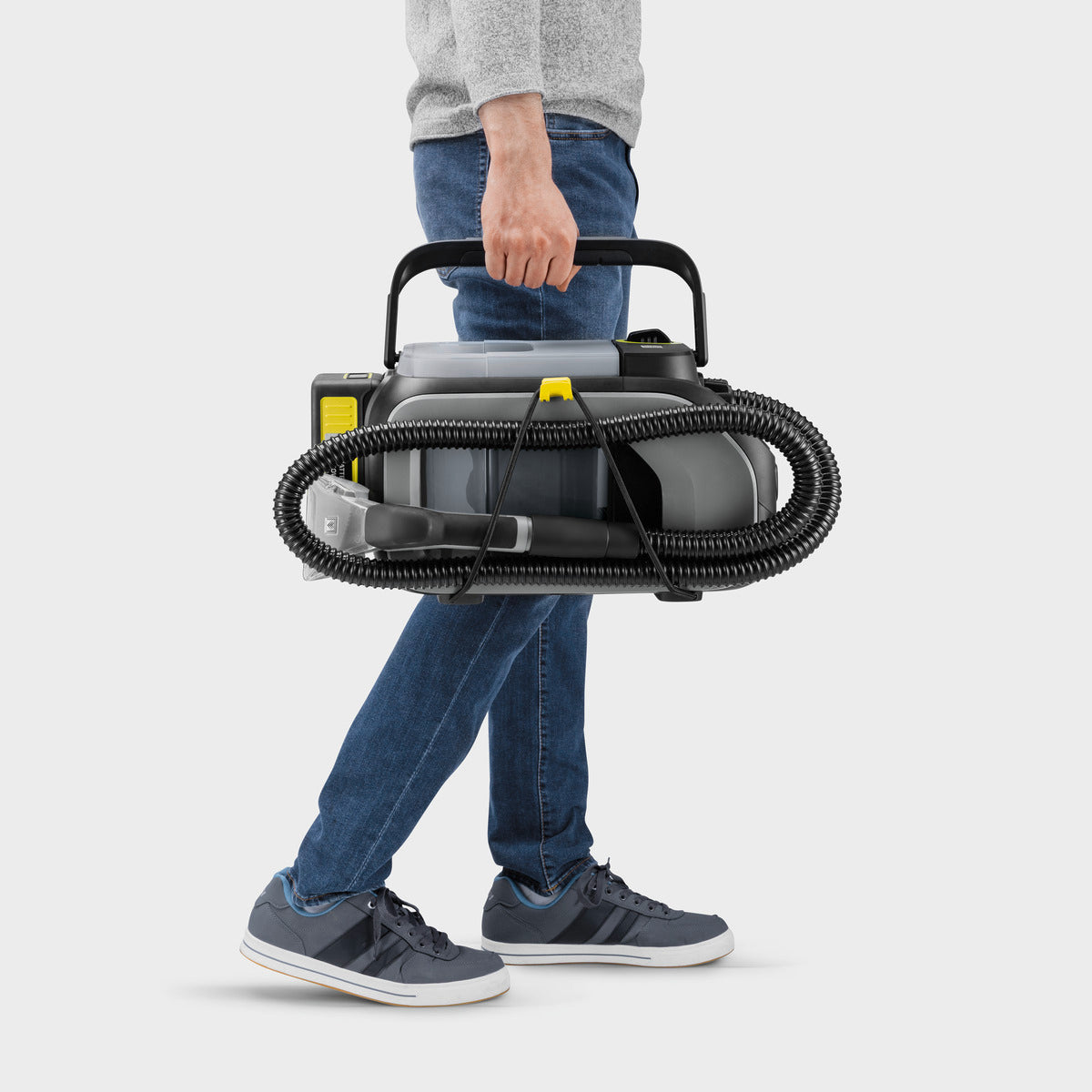

• Easy to Transport
  ▪︎ Ergonomic handle for comfort
  ▪︎ One-handed carrying up stairs
  ▪︎ Ideal for mobile jobs like car interiors or vacation rentals

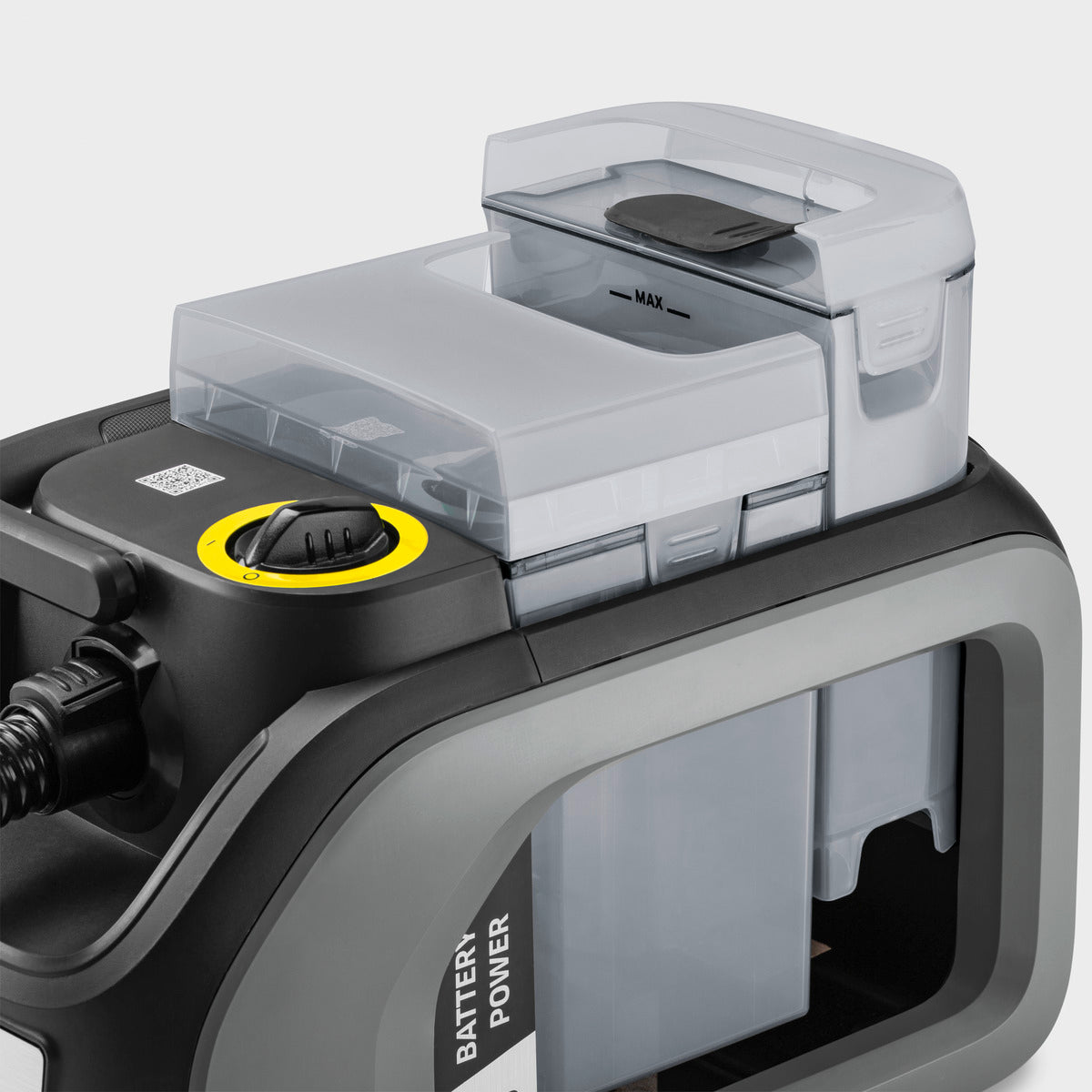

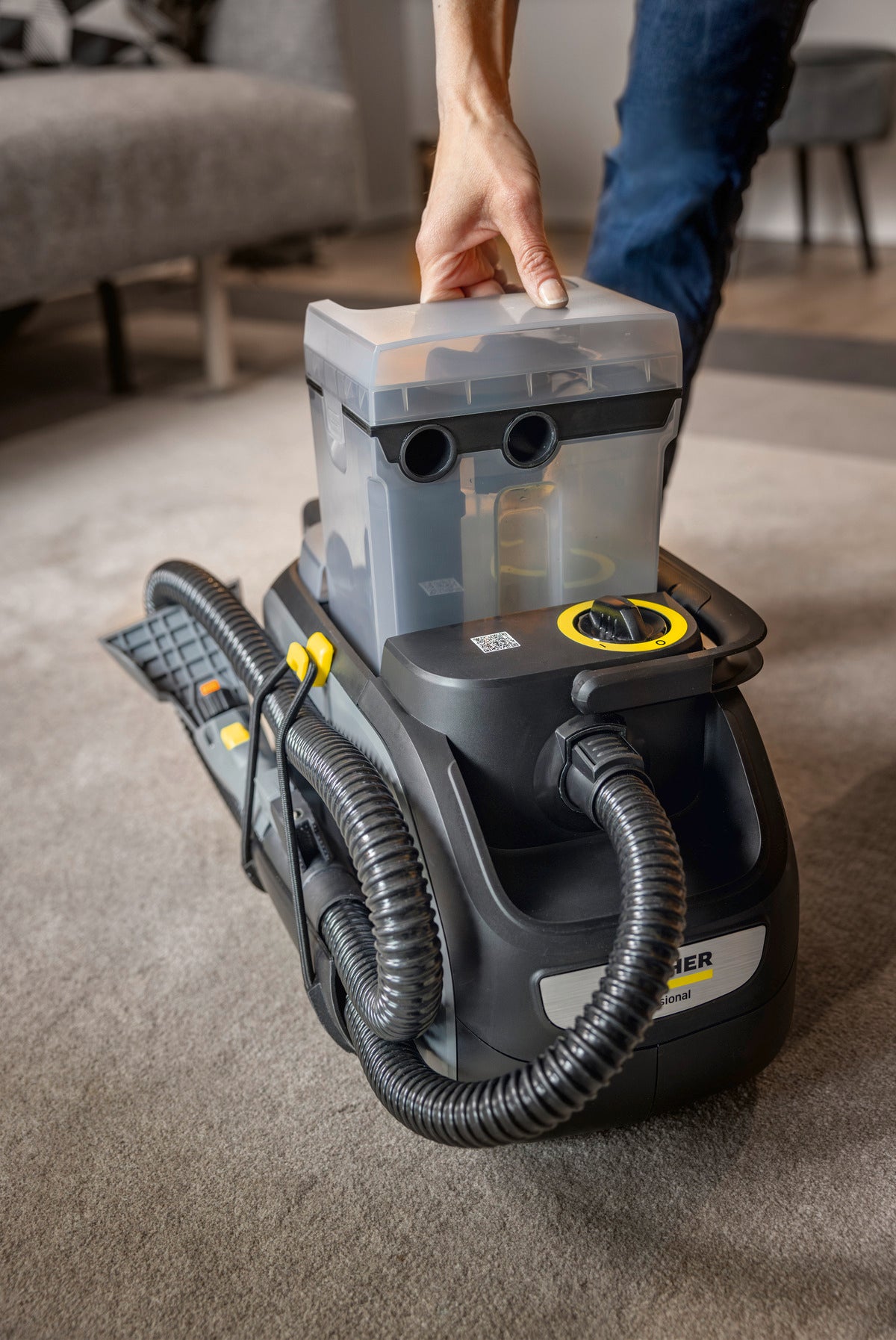

• Removable Containers

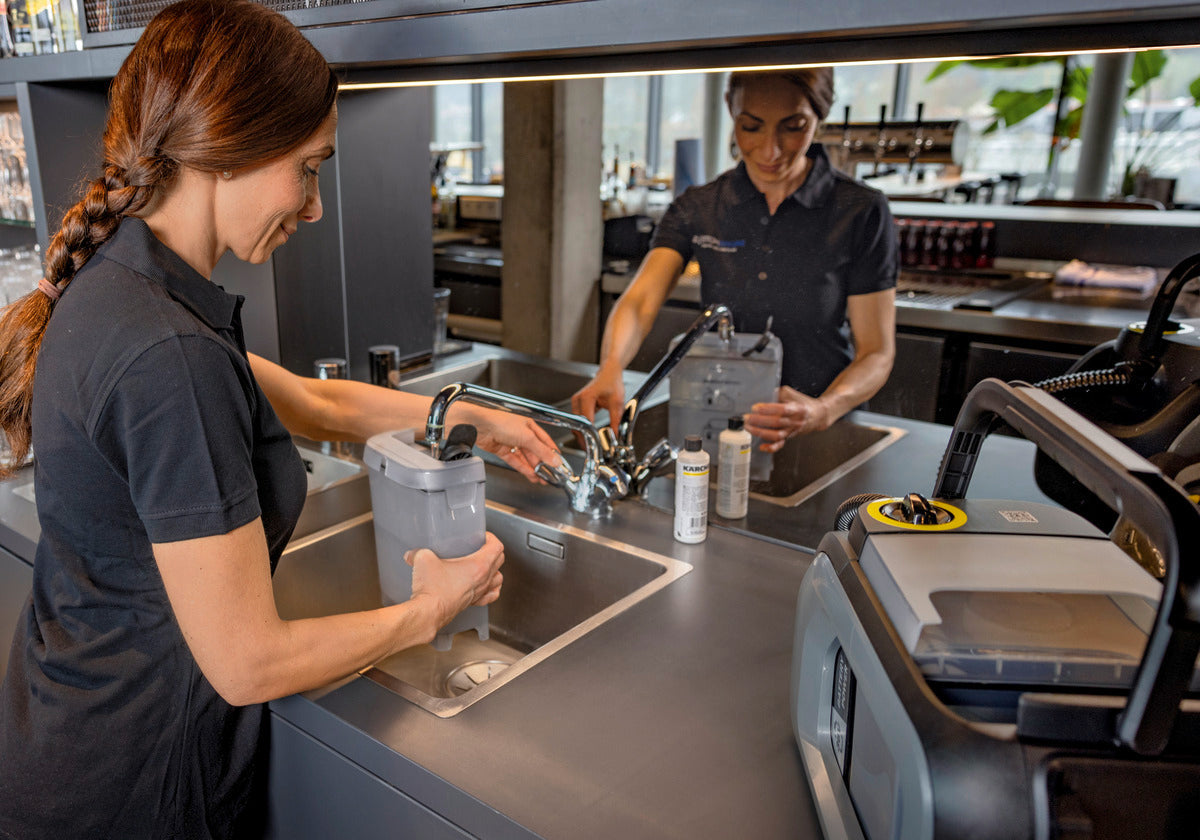

  ▪︎ Fresh and dirty water tanks are easy to remove

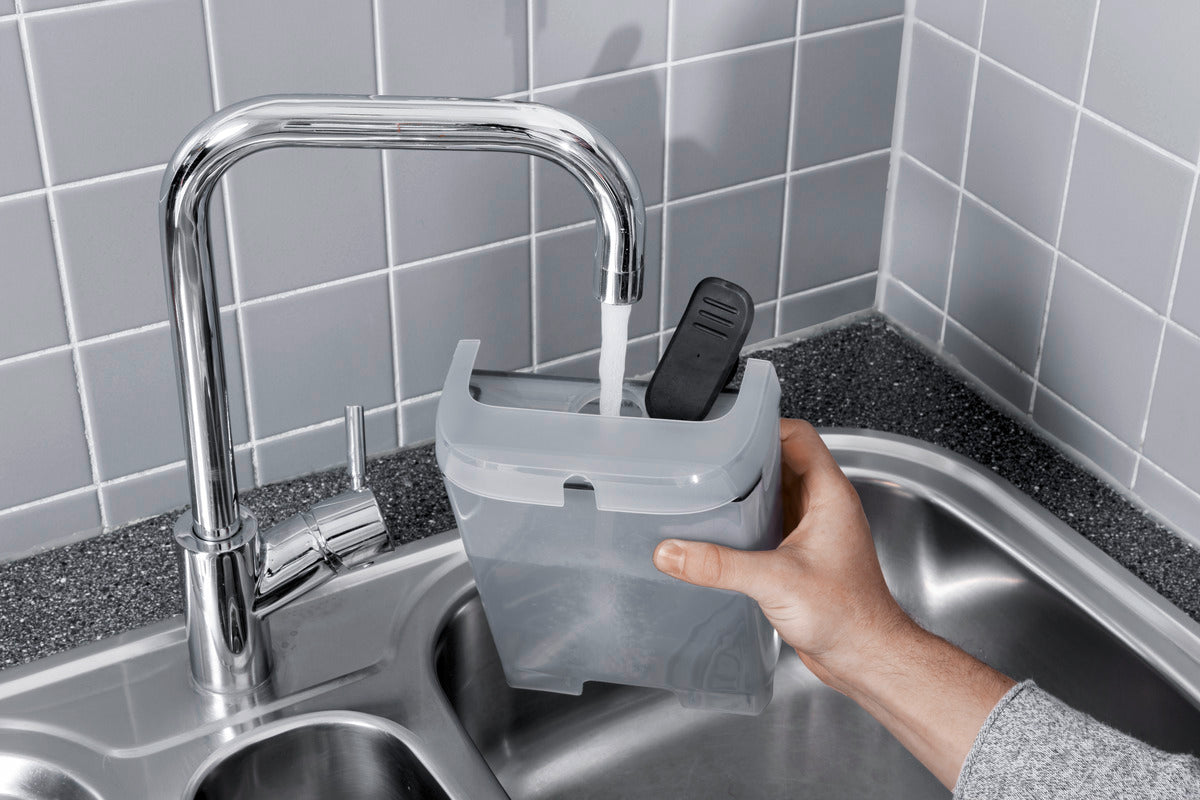

  ▪︎ Quick & Easy closure for fast filling
  ▪︎ Dirty tank is simple to empty and clean

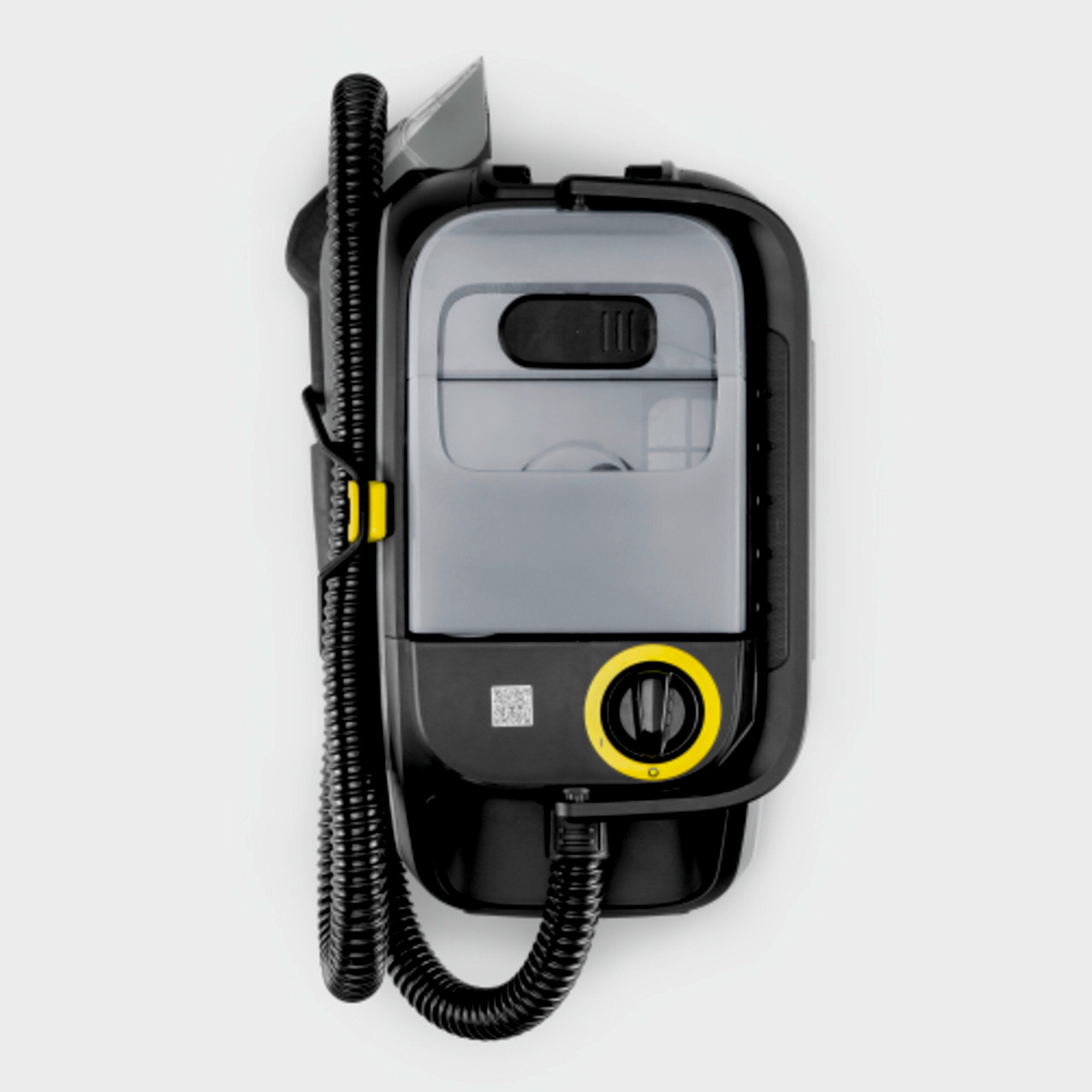

• Integrated Accessory Storage
  ▪︎ Securely held with strong rubber band and hook
  ▪︎ Prevents loss of suction hose or nozzle in transit
  ▪︎ Full system stores compactly



• Optional Detergent Use
  ▪︎ Compatible with Kärcher detergents for enhanced stain removal
  ▪︎ Cleaning solution is sprayed, loosened, and vacuumed away in one step




INCLUDED ACCESSORIES:

• Versions: Battery and battery charger not included
• spray/suction hose: 1.9 m

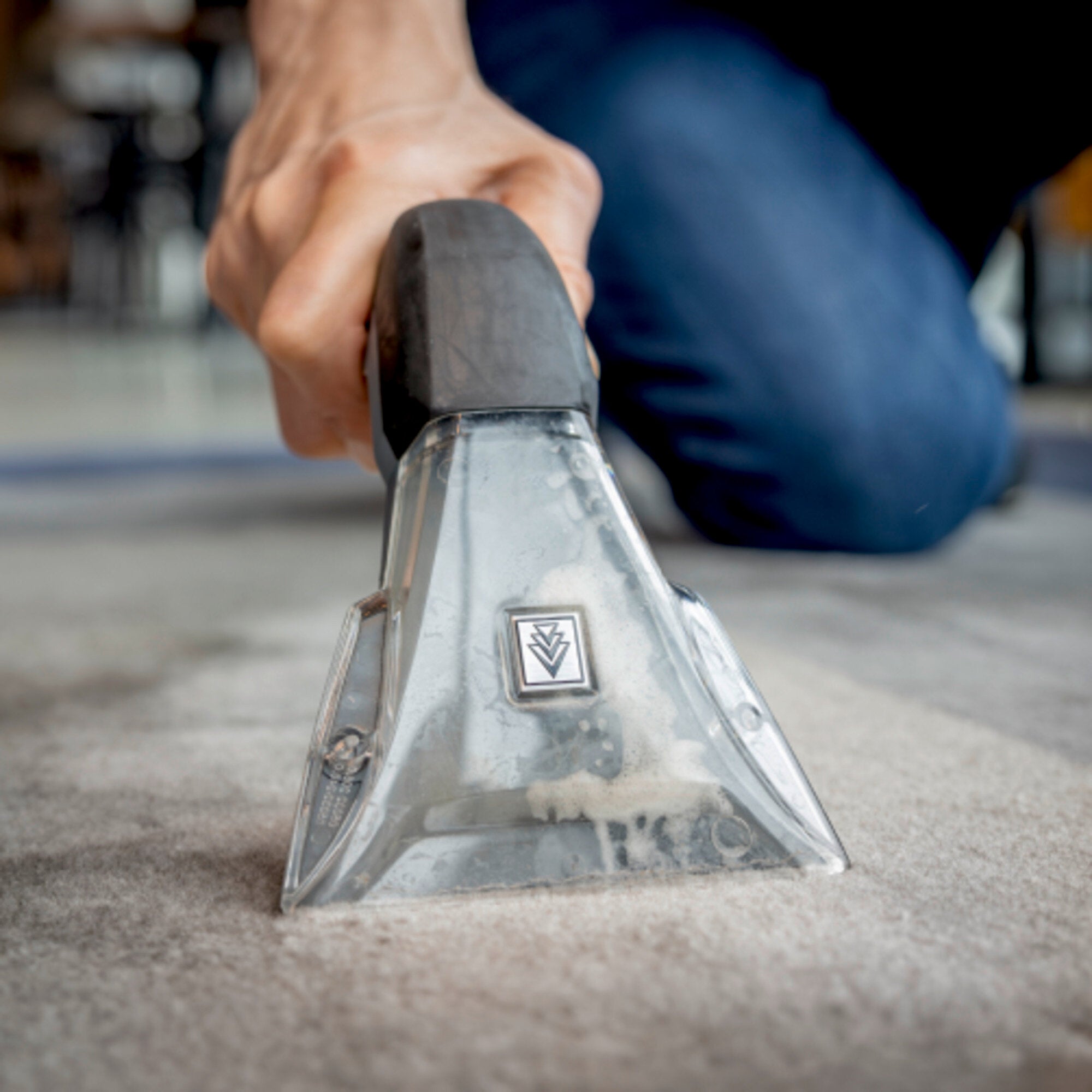

• Short upholstery nozzle with handle
• Fresh water tank
• Dirty water tank
• Detergents: RM 764 N, 125 ml

TECHNICAL SPECIFICATIONS

• Power & Battery
  ▪︎ Battery Platform: 36 V Karcher battery platform
  ▪︎ Number of Batteries Required: 1
  ▪︎ Runtime per Charge: 46 min (7.5 Ah) / 37 min (6.0 Ah)
  ▪︎ Charging Current: 6 A
  ▪︎ Charger Input: 100–240 V / 50–60 Hz
  ▪︎ Rated Input Power: 350 W
  ▪︎ Turbine Capacity: 350 W
  ▪︎ Pump Capacity: 4 W



• Performance
  ▪︎ Air Flow: 16 L/s (33.9 CFM)
  ▪︎ Vacuum: 16 kPa (2.32 PSI)
  ▪︎ Spray Rate: 350 mL/min (11.8 oz/min)
  ▪︎ Spray Pressure: 0.16–0.22 MPa (23–32 PSI)
  ▪︎ Sound Pressure Level: 72 dB(A)



• Tanks & Capacity
  ▪︎ Fresh Water Tank: 1.7 L (0.45 gal)
  ▪︎ Dirty Water Tank: 2.9 L (0.77 gal)



• Design & Dimensions
  ▪︎ Dimensions (L × W × H): 410 × 235 × 250 mm (16.1 × 9.3 × 9.8 in)
  ▪︎ Weight Without Accessories: 3.7 kg (8.2 lbs)
  ▪︎ Weight with Packaging: 5.2 kg (11.5 lbs)
  ▪︎ Nominal Accessory Size: ID 30
  ▪︎ Colour: Anthracite
