DESCRIPTION

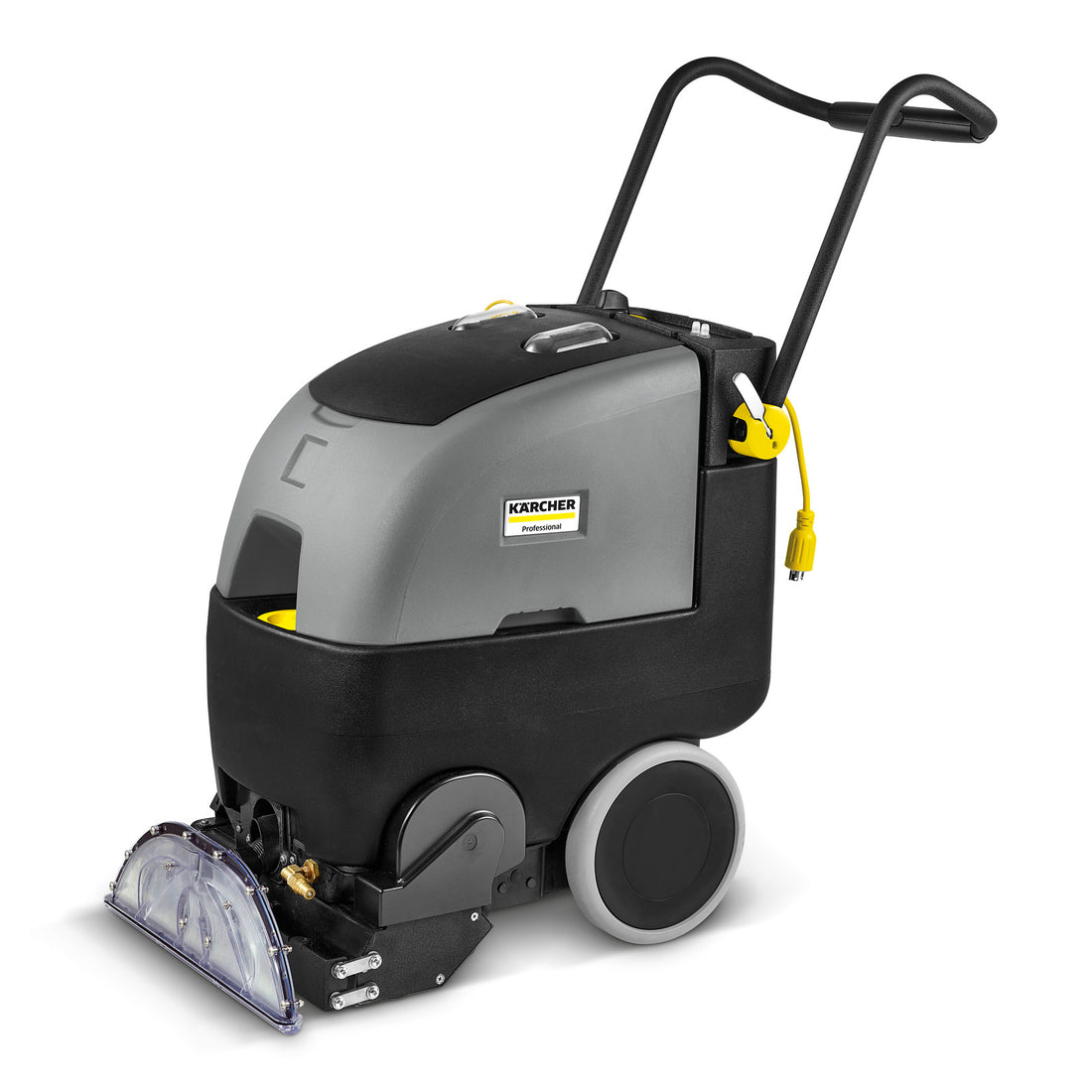

The Karcher Admiral X Carpet Extractor is a powerful, ergonomic, and cost-efficient solution for deep carpet cleaning in high-traffic environments. Designed to maximize operator comfort and boost cleaning productivity, it features SmartSpeed™ technology for real-time visual guidance on optimal extraction speed. With a low-moisture application for shorter drying times and quiet operation at just 68 dB(A), the Admiral X is perfect for hospitality, education, healthcare, and public spaces. Capable of cleaning up to 2450 ft²/hr, it ensures consistent performance with reduced resource use, delivering excellent results with every pass.

KEY APPLICATIONS:

• HOSPITALITY & EVENTS
  ▫ Deep cleaning guest-area carpets
  ▫ Low-moisture extraction for fast turnover
  ▫ Quiet operation in occupied spaces

• EDUCATION & PUBLIC SPACES
  ▫ Efficient classroom and hallway carpet maintenance
  ▫ Quiet cleaning during sessions
  ▫ Resource-efficient operation in shared areas

• HEALTHCARE & COMMERCIAL OFFICES
  ▫ Hygienic carpet extraction in clinics and offices
  ▫ Fast-drying carpets in patient and work areas
  ▫ Consistent deep cleaning in high-traffic zones

FEATURES

• Powerful Performance
  ▪︎ Engineered to clean large carpeted areas with deep and consistent results



• Boosts Productivity & Reduces Costs
  ▪︎ Optimized for efficiency, helping reduce cleaning time and labor expenses



• Ergonomic & Robust Design
  ▪︎ Designed for operator comfort and durability, minimizing fatigue during extended use

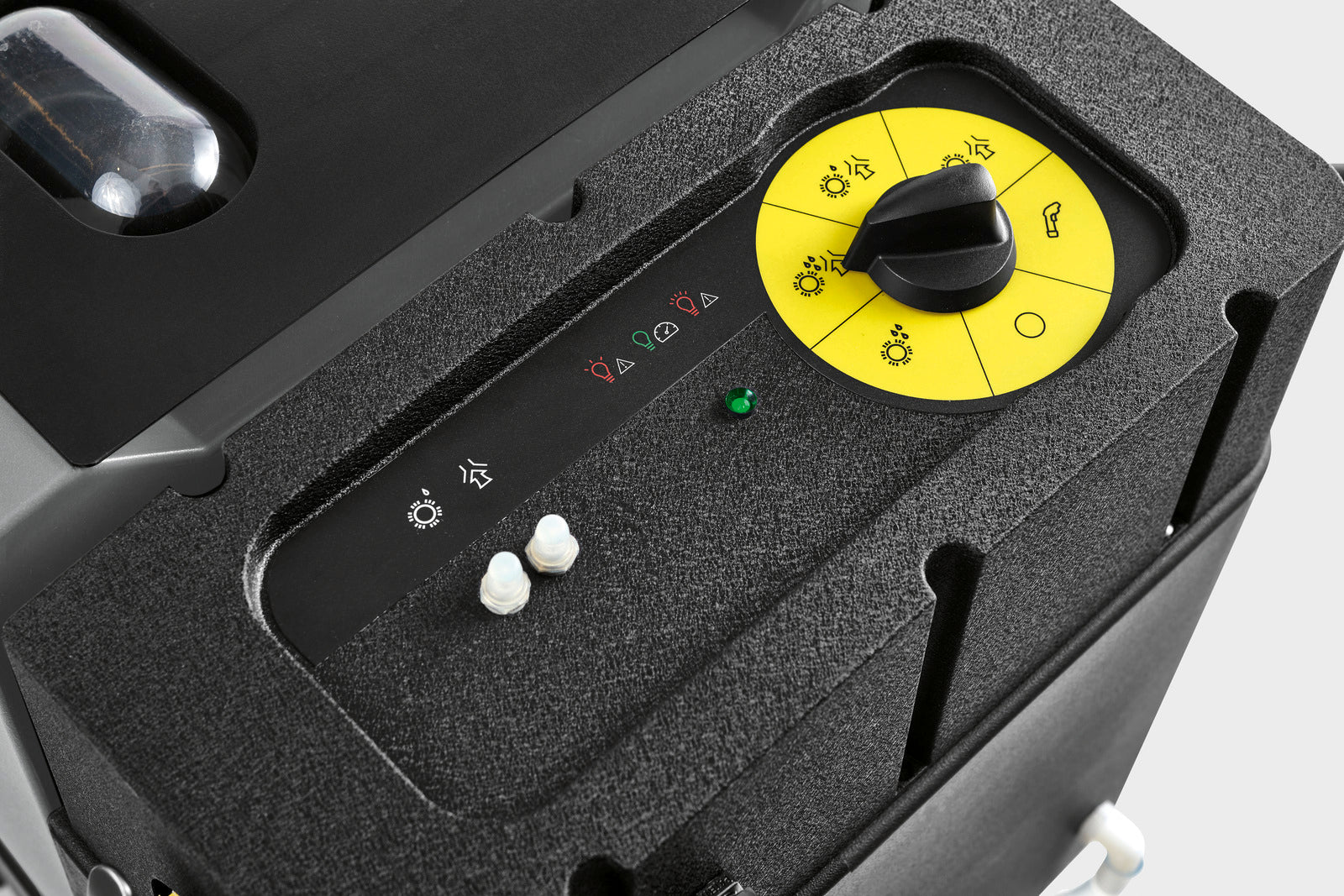

• SmartSpeed™ Technology
  ▪︎ Real-time visual feedback ensures optimal extraction speed and consistent cleaning quality



• Low Moisture Application
  ▪︎ Shortens drying times, enabling faster room turnover and less downtime



• Resource-Conserving Operation
  ▪︎ Uses less water and detergent while simplifying operator training



• Versatile for Multiple Environments
  ▪︎ Suitable for Hospitality, Education, Healthcare, and Community spaces with large carpeted areas

TECHNICAL SPECIFICATION

• Dimensions & Weight
  ▪︎ Weight: 49 kg (108 lbs)
  ▪︎ Length: 83.8 cm (33 in)
  ▪︎ Width: 49.5 cm (19.5 in)
  ▪︎ Height: 107.9 cm (42.5 in)



• Mobility
  ▪︎ Wheels: 2 × 25 cm (10 in) diameter by 5.1 cm (2 in)



• Cleaning Components
  ▪︎ Vacuum Shoe: 41 cm (16 in), injection-molded plastic with spring-loaded down pressure
  ▪︎ Brush: 41 cm (16 in)
  ▪︎ Brush Speed: 1000 rpm
  ▪︎ Solution Spray: 4 quick-change jets



• Capacity
  ▪︎ Solution Tank: 34.07 L (9 gal)
  ▪︎ Recovery Tank: 24.61 L (6.5 gal)



• Electrical System
  ▪︎ Power: 115 V / 15 A / 60 Hz
  ▪︎ Power Cable: 12.7 m (50 ft), 14 gauge
  ▪︎ Vacuum Motor: 3-stage, 1 hp, 99 cfm (2.80 m³/min), Waterlift: 297 cm (117 in)
  ▪︎ Solution Pump: 100 PSI diaphragm style with internal bypass
