DESCRIPTION

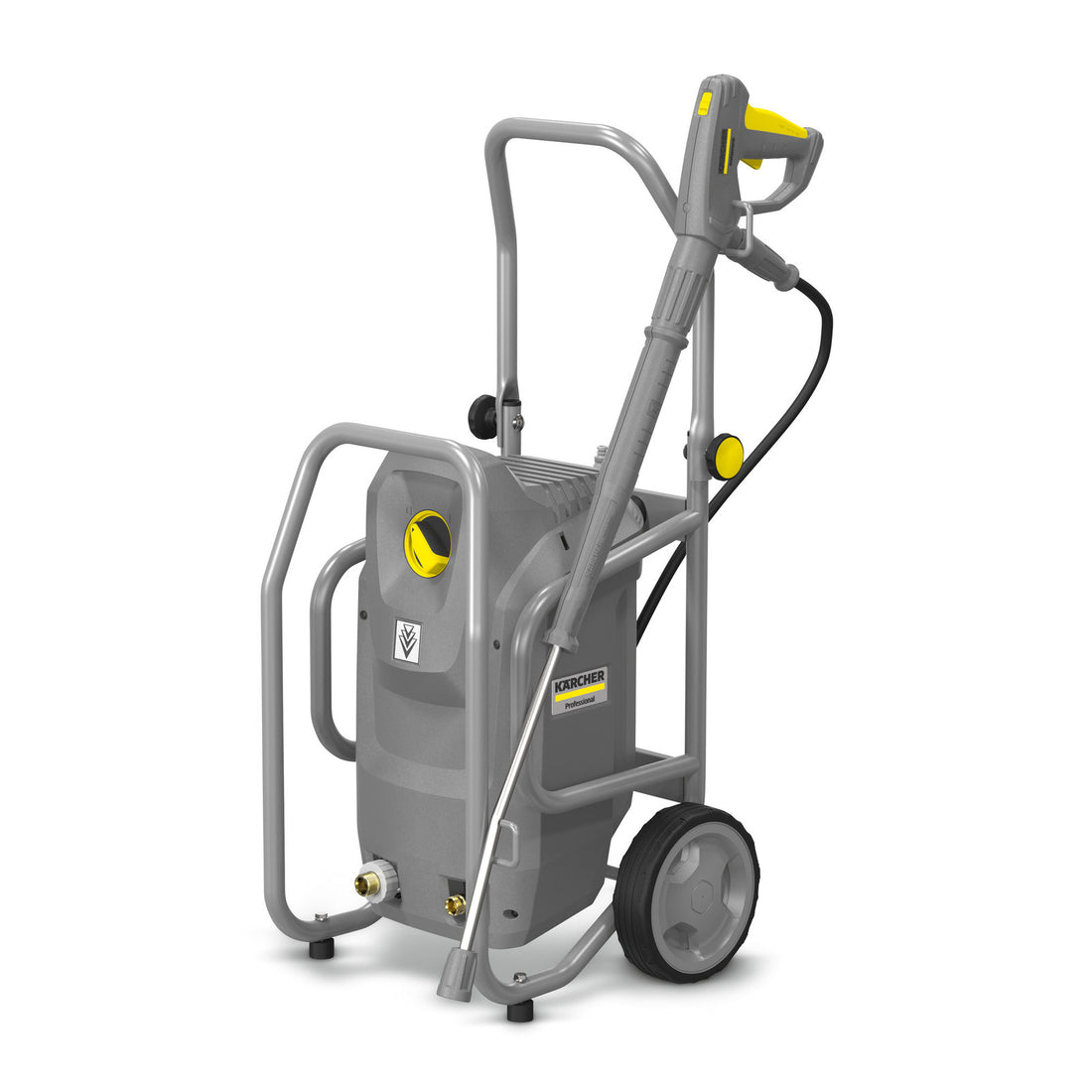

The Karcher HD 2.3/15 M Cage is a robust, 3-phase-powered high-pressure cleaner designed for tough, daily commercial use. It features a 3-piston axial pump with brass cylinder head, improving cleaning performance and energy efficiency by up to 20%. An automatic pressure relief device and water filter protect key components. The machine's powder-coated tubular steel frame ensures durability in harsh conditions. Standard features include the EASY!Force high-pressure gun for reduced recoil and EASY!Lock quick-release couplings, enabling 5x faster handling than conventional systems.

KEY APPLICATIONS:

• Industrial Cleaning: Cleaning heavy machinery, production equipment, and factory floors in demanding environments.

• Construction Equipment Maintenance: Effectively cleaning construction vehicles and equipment exposed to dirt, debris, and mud.

• Fleet Washing: Ideal for commercial vehicle fleets, ensuring efficient and thorough cleaning of trucks, buses, and delivery vehicles.

• Agricultural Machinery: Suitable for cleaning farming equipment and machinery, ensuring proper maintenance and hygiene.

• Outdoor Surface Cleaning: Used for cleaning large outdoor areas like parking lots, walkways, and building exteriors.

• Tough Commercial Applications: Designed for heavy-duty cleaning in workshops, warehouses, and service stations where durability and performance are critical.

FEATURES

Durable and robust

• Sturdy tubular steel frame protects all components.
• The tubular steel frame is also suitable for simple fastening and lashing of the machine in the service vehicle.
• Robust plastic chassis reliably protects the pump against damage and dirt.

High-quality equipment

• Automatic pressure relief for protecting the components extends their life.
• Powerful, 2-pole, air-cooled electric motor.
• High-quality brass cylinder head

Easy servicing

• Easy access to the cylinder head through the open part at the bottom of the machine.
• Quick access to the electrical box by simple removal of the machine cover.
• Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.

Increased energy efficiency

• Newly developed 3-piston axial pump for considerably reduced flow and pressure losses.
• 20% increase in cleaning performance and energy efficiency.

Effortless and time-saving solutions

• Fatigue-free EASY!Force high-pressure gun.
• EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.

Flexible operation

• For vertical and horizontal operation.

Clever accessory storage

• Holder for the cup foam lance.
• EASY!Lock TR20 permits storage of the Power nozzle or a surface cleaner directly at the machine.

INCLUDED ACCESSORIES:

• Spray gun: EASY!Force
• Spray lance: 840 mm
• Power nozzle

TECHNICAL SPECIFICATIONS

• ELECTRICAL CONNECTION
▪ Voltage: 110-120 V
▪ Phase: 1
▪ Frequency: 60 Hz
▪ Connection Output: 19 A
▪ Power Protection (Slow-blowing): 20 A

• WATER CONNECTION
▪ Max. Feed Pressure: 145 PSI (1 MPa)
▪ Max. Input Temperature: 140°F (60°C)
▪ Min. Input Flow: 4 GPM (15 L/min)
▪ Max. Suction Height: 1.6 ft (0.5 m)

• DEVICE PERFORMANCE DATA
▪ Nozzle Size (Standard Nozzle): 036
▪ Operating Pressure: 1500 PSI (10.5 MPa)
▪ Max. Operating Pressure: 2250 PSI (15.5 MPa)
▪ Water Flow Rate: 2.1 GPM (8 L/min)
▪ High-Pressure Gun Recoil Force: 8 lbf (35.5 N)

• DIMENSIONS & WEIGHT
▪ Typical Operating Weight: 86 lbs (39 kg)
▪ Length: 17.9 inches (455 mm)
▪ Width: 15.8 inches (400 mm)
▪ Height: 38.2 inches (970 mm)

• OIL
▪ Oil Volume: 0.20 L
▪ Oil Type: 0W40

• NOISE EMISSION
▪ Sound Pressure Level (LpA): 78 dB(A)
▪ Uncertainty (KpA): 3 dB(A)
▪ Sound Power Level (LWA): 94 dB(A)

• HAND-ARM VIBRATION
▪ Vibration Value (m/s²): 2.9
▪ Uncertainty (K): 0.8 m/s²
