DESCRIPTION

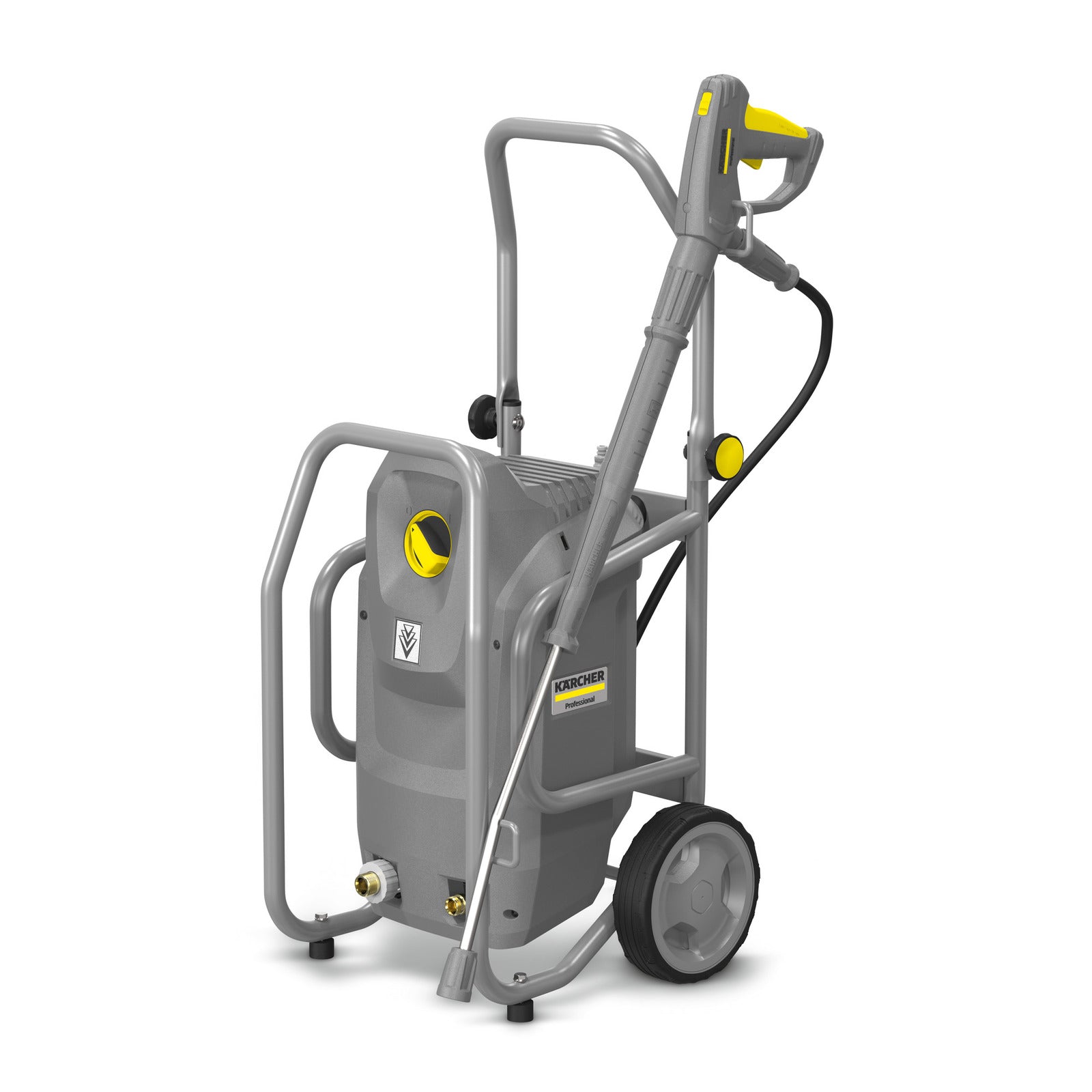

The Karcher HD 3.0/20 M Cage high-pressure cleaner is designed for tough, daily commercial use, offering both vertical and horizontal operation. It features a 3-phase motor and a 3-piston axial pump with brass cylinder head, improving cleaning performance and energy efficiency by up to 20%. The machine is equipped with an automatic pressure relief system, a water filter, and a durable powder-coated steel frame, ensuring protection and longevity. It includes the EASY!Force high-pressure gun for reduced recoil force and EASY!Lock quick-release couplings, enabling five times faster handling than traditional connections, without sacrificing durability.

KEY APPLICATIONS:

• Industrial Cleaning: Ideal for cleaning large machinery, equipment, and production areas in manufacturing plants, workshops, and factories.

• Construction Sites: Effective for removing dirt, mud, and debris from heavy construction equipment and vehicles.

• Fleet Maintenance: Perfect for cleaning commercial vehicle fleets such as trucks, buses, and delivery vehicles.

• Agricultural Use: Suitable for cleaning farming equipment and machinery, ensuring efficient operation and hygiene in agricultural settings.

• Heavy Duty Outdoor Cleaning: Can be used to clean large outdoor surfaces, including pavements, parking lots, and building exteriors.

• Maintenance of High-Pressure Systems: Ideal for maintaining and cleaning high-pressure systems in various commercial and industrial applications.

FEATURES

Increased energy efficiency

• Newly developed 3-piston axial pump for considerably reduced flow and pressure losses.
• 20% increase in cleaning performance and energy efficiency.

Effortless and time-saving solutions

• Fatigue-free EASY!Force high-pressure gun.
• EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.

Flexible operation

• For vertical and horizontal operation.

Clever accessory storage

• Holder for the cup foam lance.
• EASY!Lock TR20 permits storage of the Power nozzle or a surface cleaner directly at the machine.

INCLUDED ACCESSORIES:

• Spray gun: EASY!Force
• Spray lance: 840 mm
• Power nozzle

TECHNICAL SPECIFICATIONS

• MAIN SUPPLY
▪ Voltage: 220-240 V
▪ Current Type (Ph/V/Hz): 1 / 220-240 V / 60 Hz
▪ Connection Output: 18 A
▪ Power Protection (Slow-blowing): 20 A

• WATER CONNECTION
▪ Max. Feed Pressure: 145 PSI (1 MPa)
▪ Max. Feed Temperature: 140°F (60°C)
▪ Min. Feed Flow: 4 GPM (15 L/min)
▪ Max. Suction Height from Open Container: 1.6 ft (0.5 m)

• DEVICE PERFORMANCE DATA
▪ Nozzle Size (Standard Nozzle): 042
▪ Operating Pressure: 2000 PSI (14 MPa)
▪ Max. Operating Pressure: 3000 PSI (20.7 MPa)
▪ Water Flow Rate: 2.9 GPM (11 L/min)
▪ High-pressure Gun Recoil Force: 8 lbf (35.5 N)

• DIMENSIONS & WEIGHT
▪ Typical Operating Weight: 92.5 lbs (42 kg)
▪ Length: 17.5 inches (455 mm)
▪ Width: 15.8 inches (400 mm)
▪ Height: 38.2 inches (970 mm)

• OIL
▪ Oil Volume: 0.35 L
▪ Oil Type: 0W40

• NOISE EMISSION
▪ Sound Pressure Level (LpA): 78 dB(A)
▪ Uncertainty (KpA): 3 dB(A)
▪ Sound Power Level (LWA): 94 dB(A)

• HAND-ARM VIBRATION
▪ Vibration Value (m/s²): 2.9
▪ Uncertainty (K): 0.8 m/s²
