DESCRIPTION

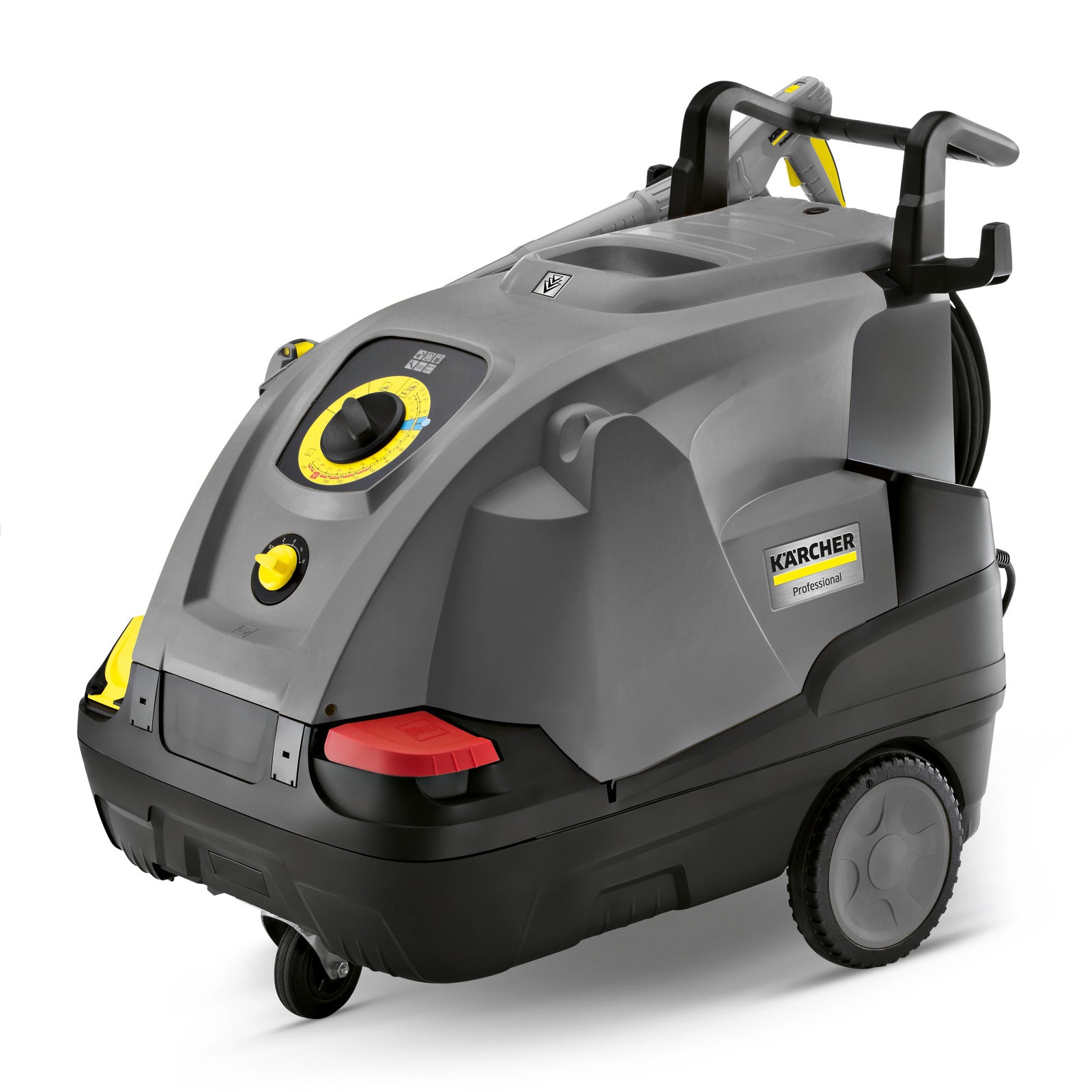

The Karcher HDS 3.0/20 C Ea is a mobile, compact, single-phase high-performance hot water high-pressure cleaner featuring eco!efficiency mode for environmentally friendly and economical operation. It offers user-friendly handling with central one-button operation and excellent mobility due to large wheels and a steering roller. The durable chassis includes integrated tanks for cleaning agents and fuel. It also features the ergonomic Easy Press spray gun with a soft grip, continuous pressure/water volume adjustment, and a water volume of 3 gpm. Additional storage compartments are provided for accessories and nozzles.

KEY APPLICATIONS:

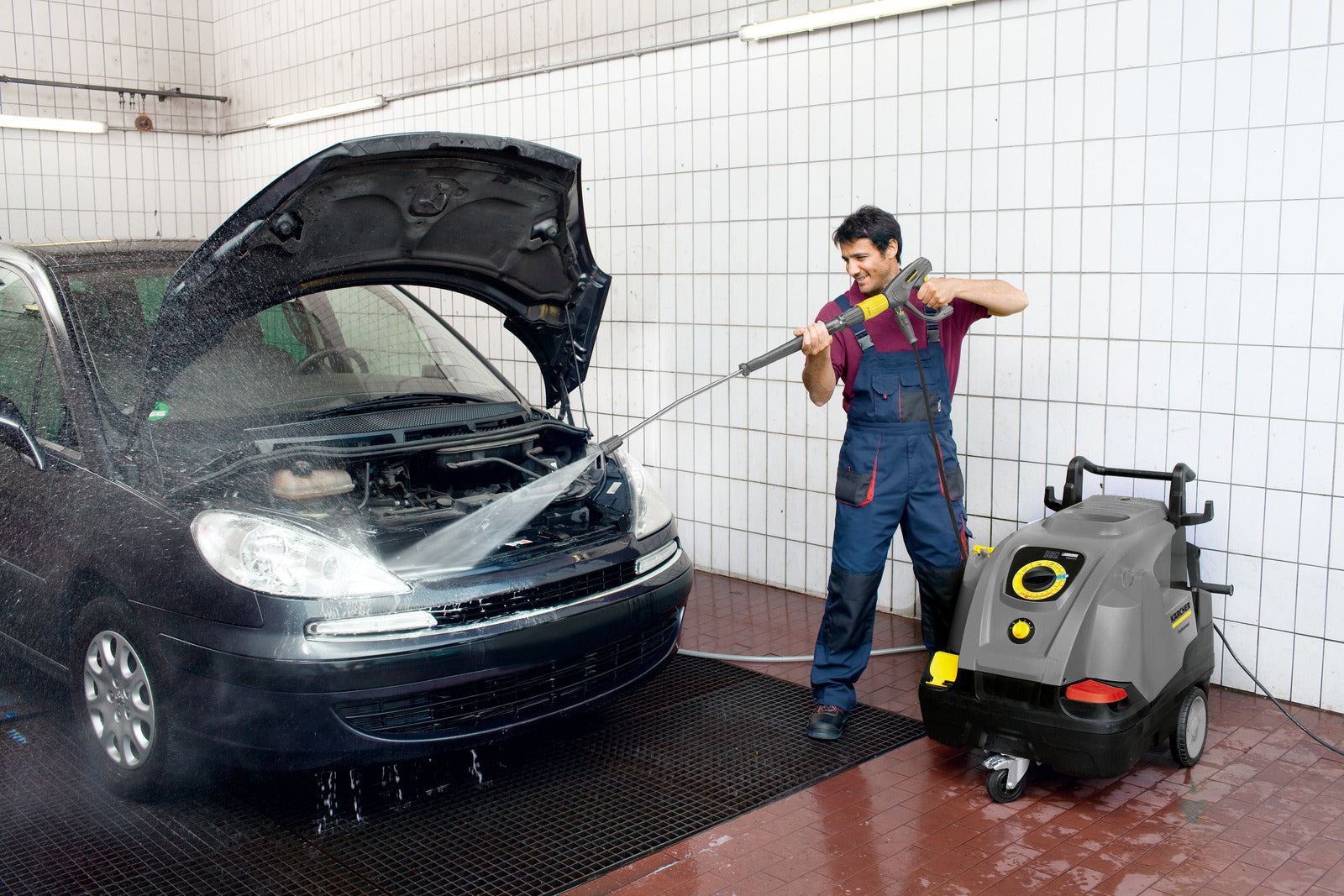

1. Vehicle Fleet Cleaning – Perfect for washing trucks, cars, and buses due to its high pressure and hot water capabilities.

2. Construction Equipment Maintenance – Cleans heavy machinery and tools, removing tough dirt, grease, and oils.

3. Food Industry Equipment – Safe for cleaning food processing machines and surfaces, benefiting from its eco-friendly mode.

4. Agricultural Equipment – Cleans farm machinery and equipment in outdoor or rugged environments, with excellent mobility.

5. Facility and Outdoor Cleaning – Ideal for cleaning large surfaces such as factory floors, warehouses, or outdoor areas.

6. Pressure Washing for Surface Prep – Effective for prepping surfaces for painting or sealing, especially on concrete or metal.

FEATURES

Economic efficiency

• eco!efficiency mode – economical and environmentally friendly, even during longer periods of use.
• Reduces fuel consumption and CO₂ emissions by 20%.
• Precise detergent dosing unit with rinse function.

User-friendliness

• Intuitive operation thanks to the large single-button selector switch.
• Large tank opening with filling chute.
• System care bottle can be changed from the outside for added convenience.

Storage

• Lockable accessory compartment for nozzles, tools, etc.
• Storage hooks for power cable and high-pressure hose.
• Integrated lance holder for transport

Reliability

• The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
• Large water filter protects pump against damage.
• Water softening system to protect the heating coil against calcification damage.

Portability

• "Jogger" design with large wheels and steering roller.
• Large integrated handles in the chassis.
• Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.

INCLUDED ACCESSORIES:

• Spray gun: EASY!Force Advanced
• Spray lance: 1050 mm
• Power nozzle

TECHNICAL SPECIFICATIONS

• MAIN SUPPLY
▪ Voltage: 220-240 V
▪ Current Type (Ph/V/Hz): 1~ 60 Hz
▪ Connected Load: 5.6 hp (4.2 kW)
▪ Protection (Slow): 20 A
▪ Type of Protection: IPX5
▪ Protective Class: I

• WATER CONNECTION
▪ Max. Feed Temperature: 86°F (30°C)
▪ Min. Feed Volume: 4.0 GPM (15 L/min)
▪ Suck Height from Open Container (68°F/20°C): 1.6 ft (0.5 m)
▪ Max. Feed Pressure: 145 PSI (1 MPa)

• PERFORMANCE DATA
▪ Water Flow Rate: 1.32 – 2.9 GPM (5 – 11 L/min)
▪ Operating Pressure (using standard nozzle): 460 – 2000 PSI (3.1 – 13.7 MPa)
▪ Max. Excess Operating Pressure (Safety Valve): 2460 PSI (17 MPa)
▪ Steam Flow Rate: 1.32 – 1.5 GPM (5 – 5.7 L/min)
▪ Max. Operating Pressure for Steam (using steam nozzle): 464 PSI (3.2 MPa)
▪ Part No. of Steam Nozzle: 2.114-001.0
▪ Max. Operating Temperature of Hot Water: 208°F (98°C)
▪ Working Temperature Steam Operation: 311°F (155°C)
▪ Detergent Suck-in: 0 - 0.16 GPM (0 - 0.62 L/min)
▪ Burner Performance: 58 hp (148,000 BTU/h)
▪ Max. Consumption of Heating Oil: 4.15 kg/h (1.35 GPH)
▪ Max. Recoil Force of Trigger Gun: 25.6 N
▪ Size of Standard Nozzle: 042

• NOISE EMISSION
▪ Sound Pressure Level (LpA): 76 dB(A)
▪ Uncertainty (KpA): 3 dB(A)
▪ Sound Power Level (LWA): 94 dB(A)

• HAND-ARM VIBRATION VALUE
▪ Hand Spray Gun: 2.7 m/s²
▪ Spray Lance: 5.4 m/s²
▪ Uncertainty (K): 0.3 m/s²

• FUEL
▪ Fuel Type: Fuel oil EL or Diesel
▪ Amount of Oil: 0.08 gal (0.3 L)
▪ Oil Grade: 0W40

• DIMENSIONS & WEIGHT
▪ Length x Width x Height: 41.7" x 25.6" x 36.2" (1060 x 650 x 920 mm)
▪ Typical Operating Weight: 206.6 lbs (93.7 kg)
▪ Fuel Tank Volume: 4.1 gal (15.5 L)
▪ Detergent Tank Volume: 4.1 gal (15.5 L)
