DESCRIPTION

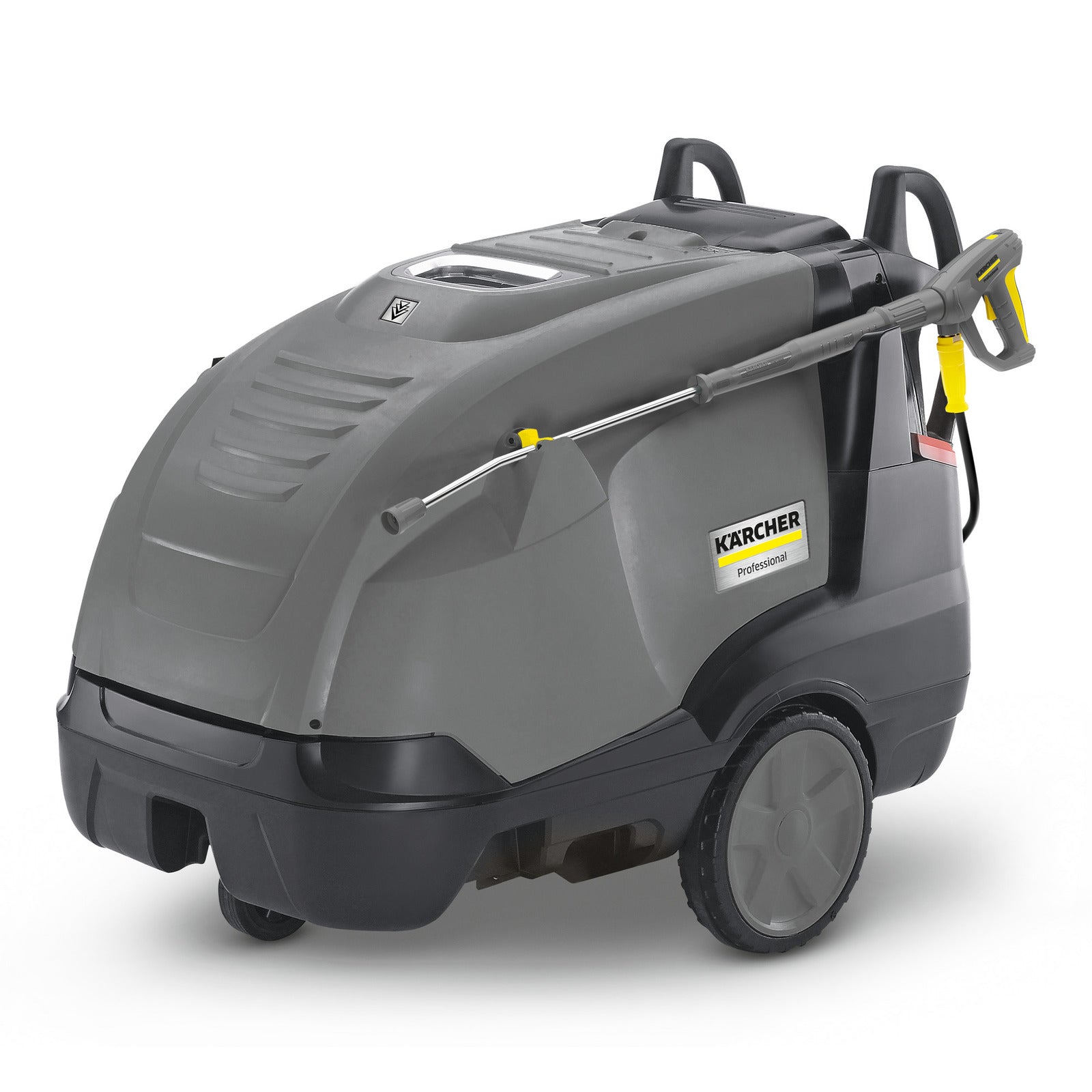

Buy the Karcher HDS 4.5/22-4 M Ea High-Pressure Washer – the most powerful hot water high-pressure cleaner in the middle class. Featuring a 4-pole, water-cooled electric motor (220 V) and 2 cleaning agent tanks, this machine is designed for uncompromising performance, delivering maximum pressure and flow rate. The eco!efficiency mode optimizes fuel consumption by 20% compared to full load operation, while the ceramic piston and innovative burner technology ensure the best cleaning results. The machine’s patented nozzle technology and turbo blower ensure maximum efficiency, and its intuitive dashboard and LED displays make it easy to operate. Service and maintenance are also simple with easy access to components and the ability to monitor operating data at any time.

KEY APPLICATIONS:

• Vehicle and Fleet Cleaning: Ideal for washing cars, trucks, buses, and heavy-duty vehicles.

• Agricultural Equipment Cleaning: Perfect for removing stubborn dirt, grease, and residues from tractors and farm machinery.

• Industrial and Workshop Cleaning: Suitable for degreasing machinery, floors, and work areas.

• Construction Sites: Effective for cleaning equipment, tools, and removing mud or oil.

• Public Services and Municipal Use: Great for cleaning public spaces, sanitation vehicles, and street furniture.

• Food Industry: Suitable for hygiene-critical areas where hot water cleaning is essential.

FEATURES

• eco!efficiency Mode:
  Optimizes fuel consumption by 20%, operating in the most economical temperature range (60°C / 140°F) with full water flow.

• High-Efficiency Burner Technology:
  Provides consistent high performance with 4-pole water-cooled electric motor and ceramic piston for extended durability.

• Operational Safety:
  Integrated water fine filter protects the high-pressure pump from small dirt particles. The exhaust gas thermostat automatically shuts down the motor if the temperature exceeds 300°C (572°F).

• Mobility:
  The "Jogger" design with large rubber wheels and a steering roller makes for easy handling and transport, even on uneven surfaces.

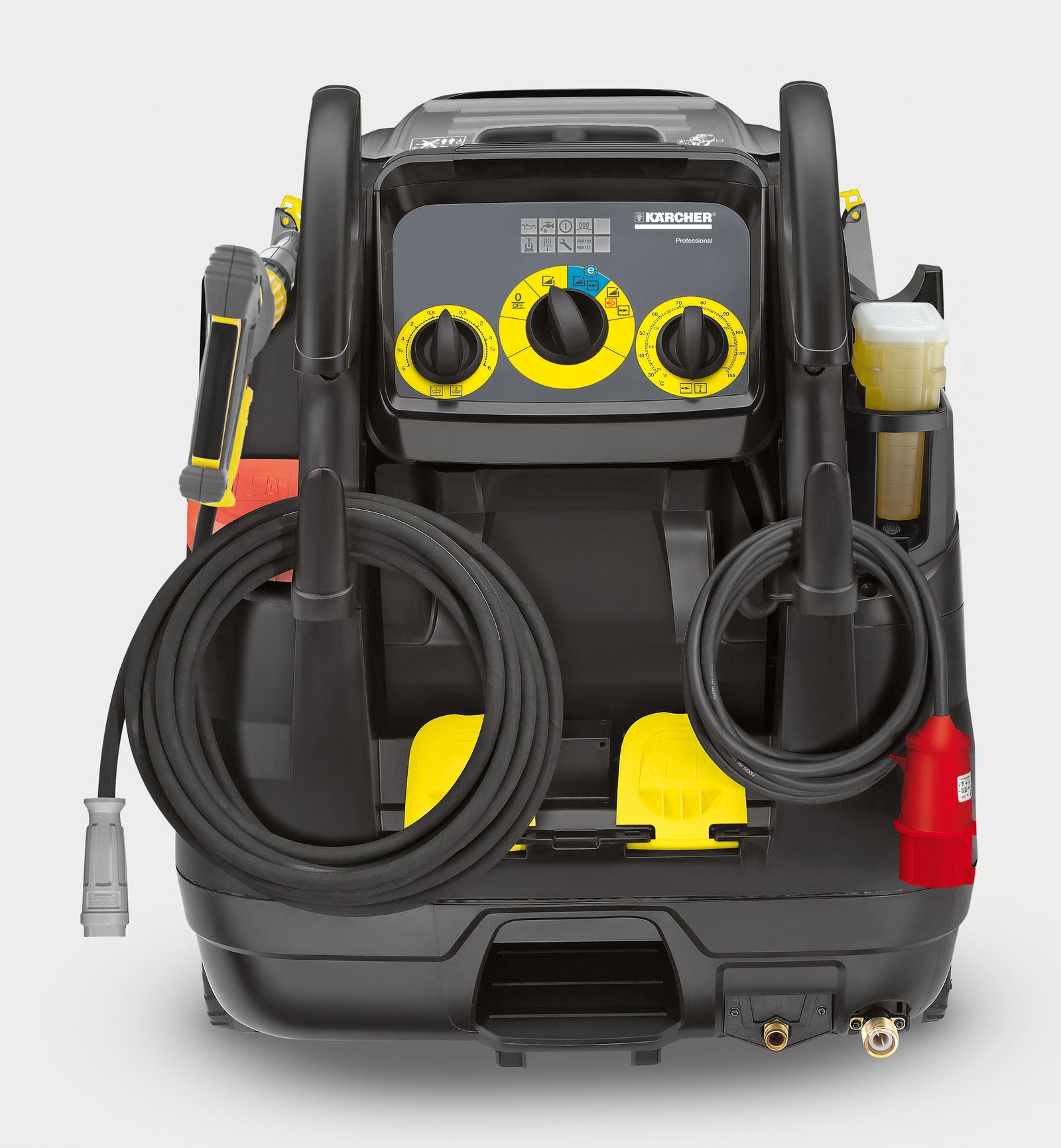

• Storage:
  Safe and ample storage for protective gear, accessories, and cleaning agents with hooks for the power cable and high-pressure hose.

• EASY!Force High-pressure Gun:
  Reduces holding force to zero, ensuring effortless operation.

• EASY!Lock Quick-release Fasteners:
  Five times faster than conventional screw connections, making setup and teardown easy.

INCLUDED ACCESSORIES:

• Spray gun: EASY!Force Advanced
• High-pressure hose length: 15 m
• High-pressure hose type: Longlife
• Spray lance: 1050 mm
• Power nozzle

TECHNICAL SPECIFICATIONS

• MAIN SUPPLY
▪ Voltage: 120 V
▪ Current Type (Ph/V/Hz): 1 / 220 – 240 / 60 Hz
▪ Connected Load: 7.1 kW (9.5 hp)

• WATER CONNECTION
▪ Max. Inlet Temperature: 105°F (40°C)
▪ Min. Inlet Flow: 3 GPM (11 L/min)
▪ Suck Height from Open Container (68°F/20°C): 1.6 ft (0.5 m)
▪ Max. Inlet Pressure: 90 PSI (0.6 MPa)

• PERFORMANCE DATA
▪ Max. Flow Rate: 2.2 GPM (8.3 L/min)
▪ Operating Pressure: 1200 PSI (8.3 MPa)
▪ Max. Operating Over-pressure: 1950 PSI (13.4 MPa)
▪ Max. Temperature: 190°F (88°C)
▪ Detergent Suck-in: 0 - 0.09 GPM (0 - 0.34 L/min)
▪ Burner Performance: 63 hp (160,500 BTU/h)
▪ Max. Consumption of Heating Oil or Gas: 1.26 GPH (4.1 kg/h)

• DIMENSIONS & WEIGHT
▪ Weight: 190 kg (419 lbs)
▪ Dimensions (L x W x H): 1330 x 750 x 1060 mm (52.4" x 29.5" x 41.7")
▪ Shipping Weight: 196 kg (432 lbs)

• ADDITIONAL SPECIFICATIONS
▪ Number of Simultaneous Users: 1
▪ Cleaning Agent Tanks: 2 x 20 L / 10 L (5.3 gallons / 2.6 gallons)
▪ Dry-running Protection: Yes
▪ LED Display for Service Electronics: Yes
